Baileigh Industrial BA9-1002862 Baileigh Drill Press Variable Speed DP-1000VS

Baileigh Industrial BA9-1002862 Baileigh Drill Press Variable Speed DP-1000VS

Availability:
Out of stock
Sold out
$5,425.71
$5,425.71 - $5,425.71
$5,425.71
$4,649.00
$4,649.00 - $4,649.00
$4,649.00

Product Description

Baileigh Industrial 1002862 Description

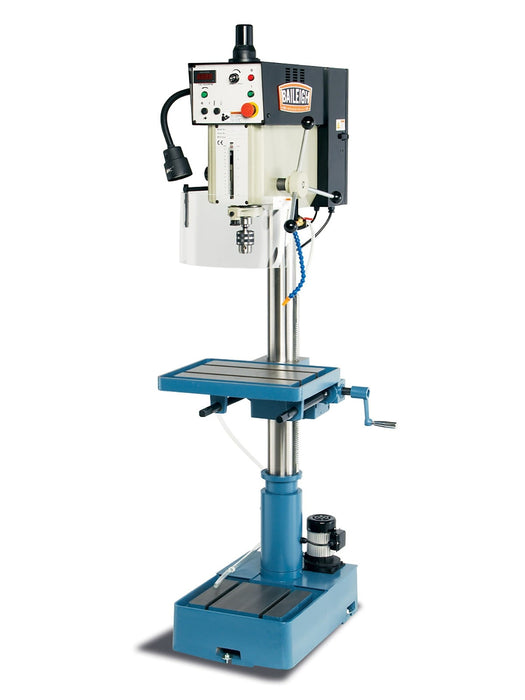

This variable-speed drill press runs smoothly even at full capacity—and will do so for years at your shop. Unlike pulley-driven drills, this 16" drill press lets you run tooling at the proper speed to fit your application and extend tooling life. 16" Drill Press Machine The DP-1000VS variable speed drill press has a very wide column to eliminate flexing when drilling at full capacity. The base and table are made from a very rigid casting adding to the strength of this 1" maximum capacity drilling machine.

Baileigh Industrial 1002862 Includes

  • (1) Drill Press

Baileigh Industrial 1002862 Features

  • 2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site.

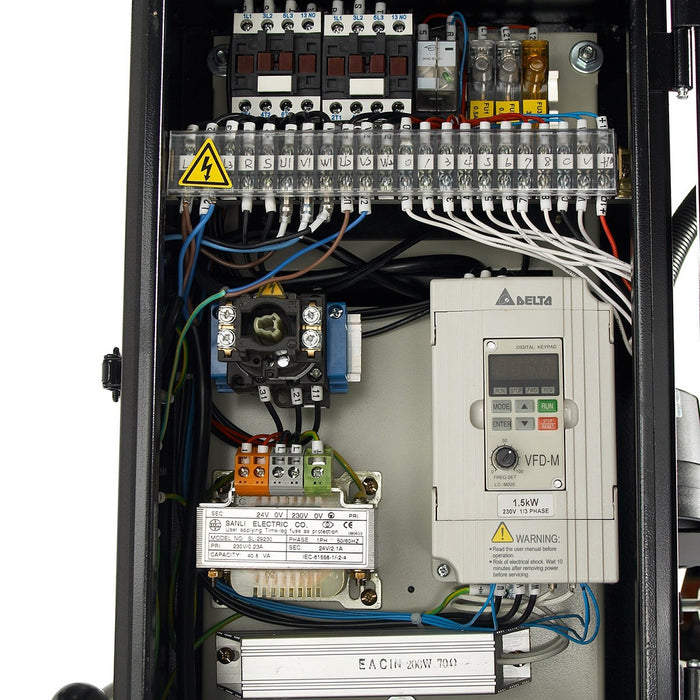

  • Inverter-driven head drills a maximum capacity of 1” steel.

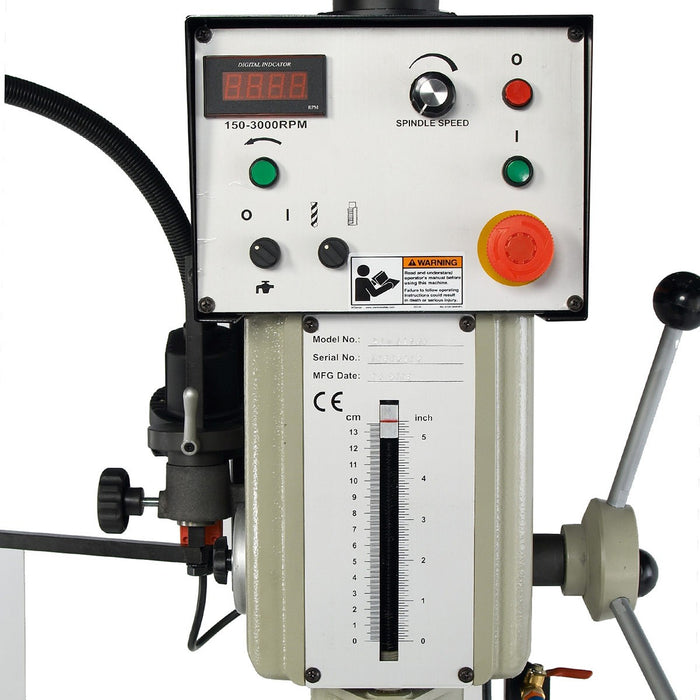

  • You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application.
  • Auto-reversing tap has a tapping capacity of 5/8” steel.
  • Wide steel column eliminates flexing even when drilling at full capacity.

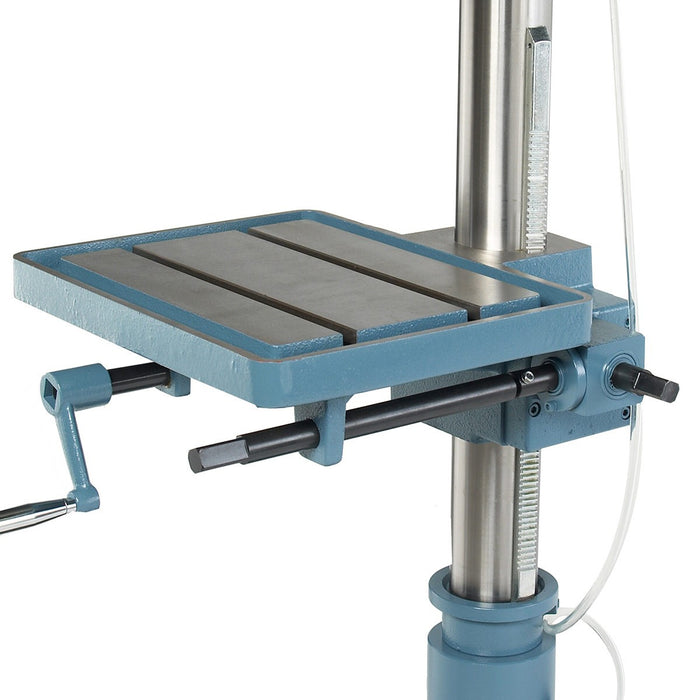

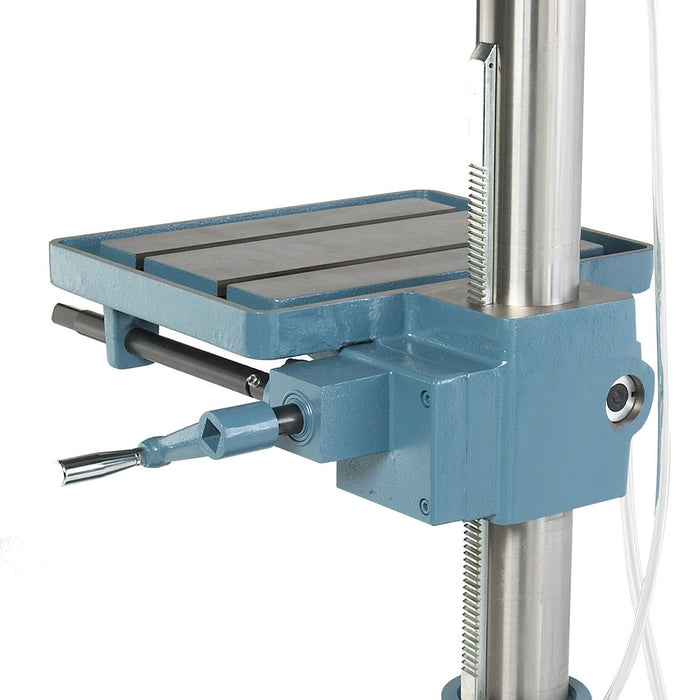

  • Rigid cast iron base and table add strength to the drill’s structure.

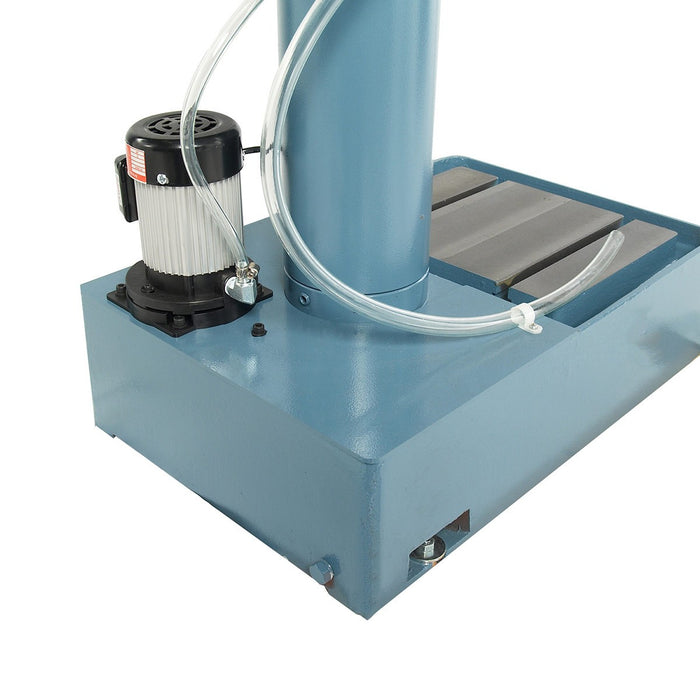

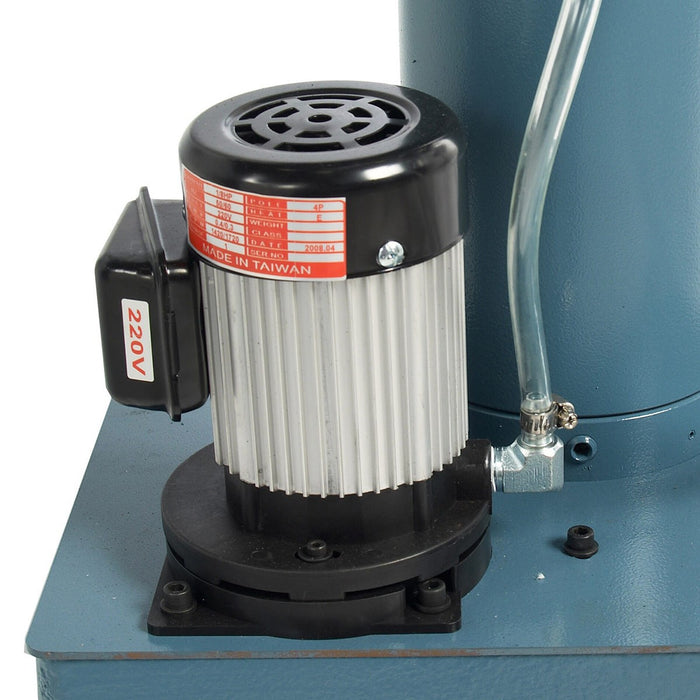

  • Comes standard with a coolant system, a feature that some competing companies consider an upgrade.

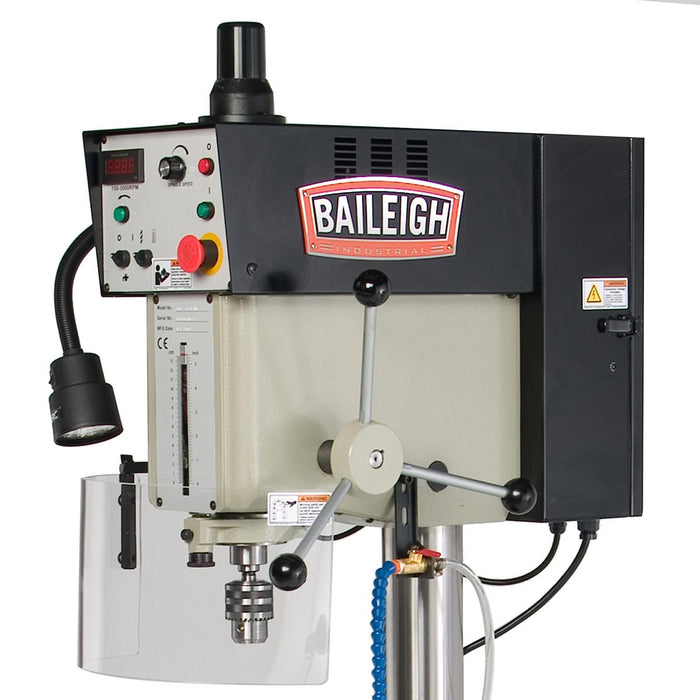

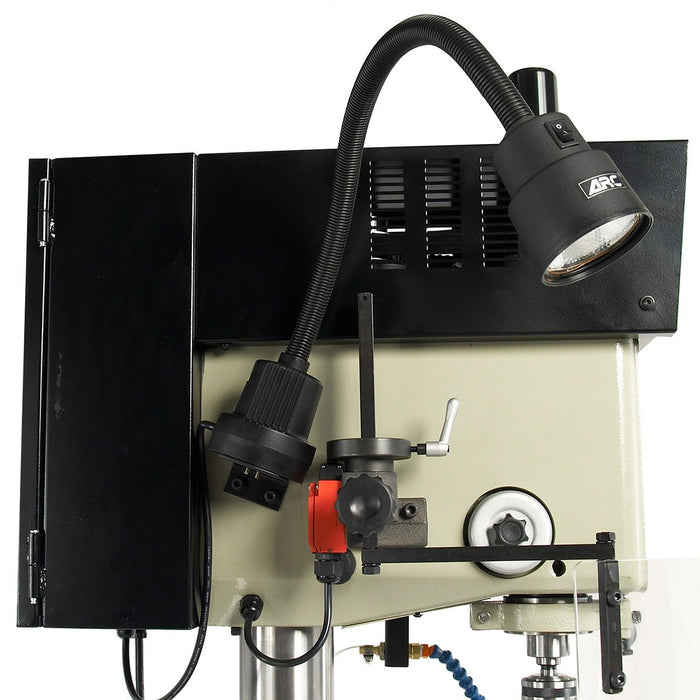

  • Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better.
  • Baileigh backs this variable-speed drill press machine with a 1-year parts warranty.

Baileigh Industrial 1002862 Specifications

Table Size 18.1" x 14.2"
Quill Diameter 2.44"
Spindle Nose to Table 23.8"
Spindle Nose to Base 45.3"
Spindle Speed 150 – 3000 RPM
Spindle Taper MT 3
Table Slot .625"
Tapping Capacity Cast Iron 3/4"
Tapping Capacity Steel 5/8"
Main Motor 2 HP
