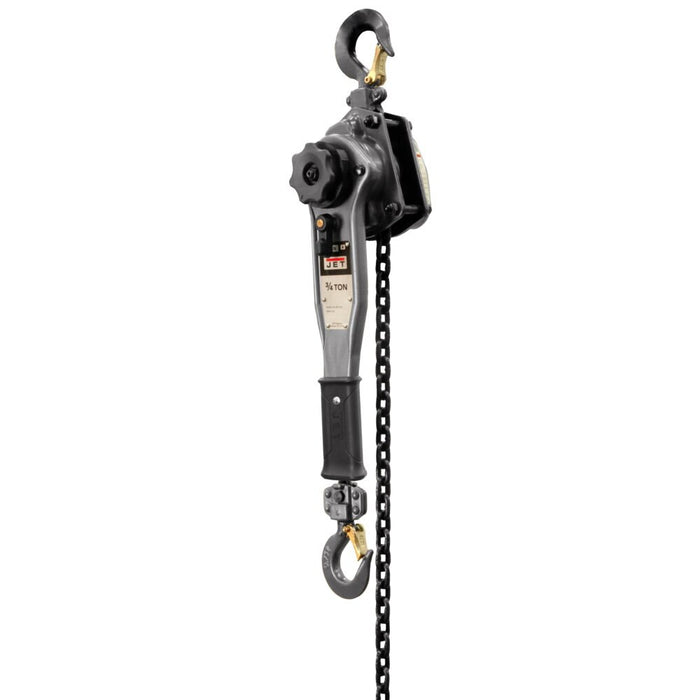

Jet JT9-287301 JLP-075A-10 JLP-A Series 3/4 Ton Lever Hoist, 10' Lift

Jet JT9-287301 JLP-075A-10 JLP-A Series 3/4 Ton Lever Hoist, 10' Lift

Availability:
in stock, ready to be shipped
Sale Sale
$414.74
$414.74 - $414.74
$414.74
$304.98
$304.98 - $304.98
$304.98

Product Description

Jet 287301 Description

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.

Jet 287301 Features

  • Safety
  • Patented brake wear indicator provides visual indication when to replace worn friction disks
  • Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
  • Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  • Durability
  • Cast steel safety latches are secured with Allen screws and lock nuts
  • Grade 80 black oxide coated for added durability
  • Needle bearing design increases efficiency and promotes smooth operation
  • Impact resistant all steel construction for added durability and protection

Jet 287301 Specifications

Number of Falls 1
Lift per Turn (In.) 4/5
Load Capacity (Tons) 3/4
Load Chain Dimensions (Mm.) 6 x 18
Lever Pull Force (LBF) 31
Weight (Lbs.) 17
Ship Yard Hooks SV_1375591258806
Lift (Ft.) 10
Headroom (In.) 12-4/5
Handle Length (In.) 11
Overload Protection No
Hook Throat Opening (In.) 1-1/2
Overall Width (In.) 5-5/6
