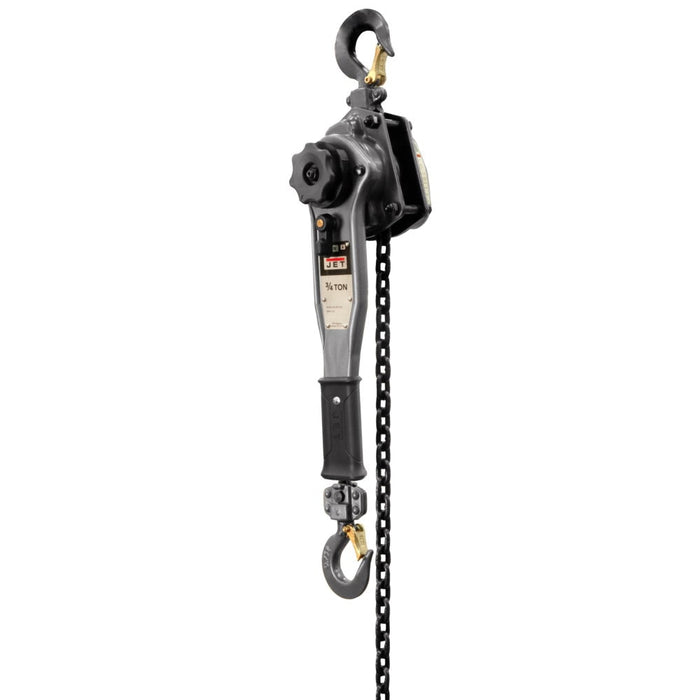

Jet JT9-287302 JLP-075A-15, 3/4-Ton Lever Hoist With 15' Lift

Jet JT9-287302 JLP-075A-15, 3/4-Ton Lever Hoist With 15' Lift

Availability:
in stock, ready to be shipped
Sale Sale
$435.78
$435.78 - $435.78
$435.78
$325.38
$325.38 - $325.38
$325.38

Product Description

Jet 287302 Description

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.

Jet 287302 Features

  • Patented brake wear indicator provides visual indication when to replace worn friction disks
  • Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
  • Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  • Cast steel safety latches are secured with Allen screws and lock nuts
  • Grade 80 black oxide coated for added durability
  • Needle bearing design increases efficiency and promotes smooth operation
  • Impact resistant all steel construction for added durability and protection
  • This product complies with ANSI / ASME B30.21 and HST-3 standards
  • Load tested to 125% of capacity with certificate

Jet 287302 Specifications

Load Capacity 3/4 tons
Lift 15'
Overload Protection No
Ship Yard Hooks No
Headroom 12-4/5"
Handle Length 11"
Lever Pull Force 31
Lift per Turn 4/5"
Number of Falls 1
Load Chain Dimensions 6mm x 18mm
Hook Throat Opening 1-1/2"
Overall Width 5-5/6"
Weight 19 lbs
