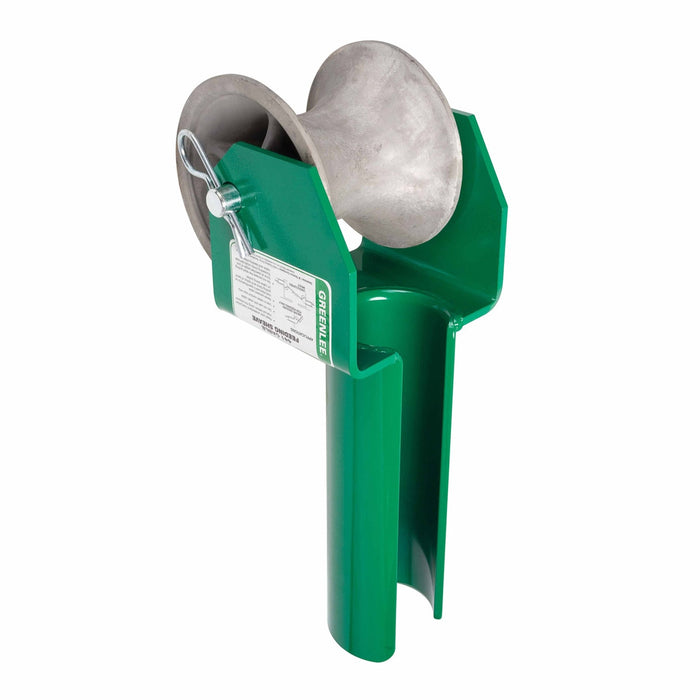

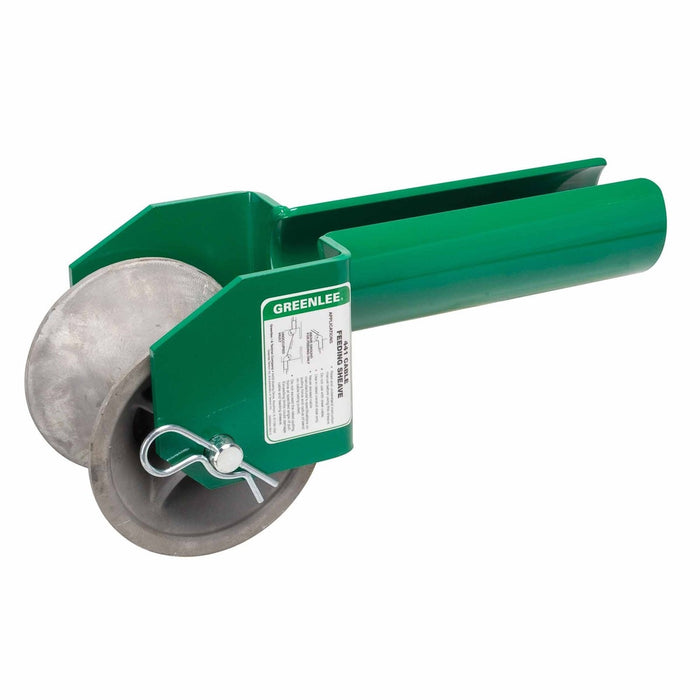

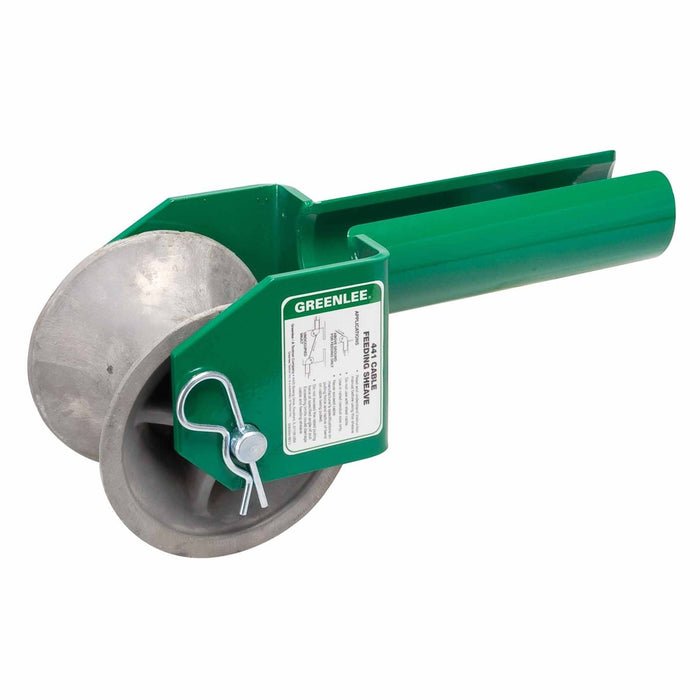

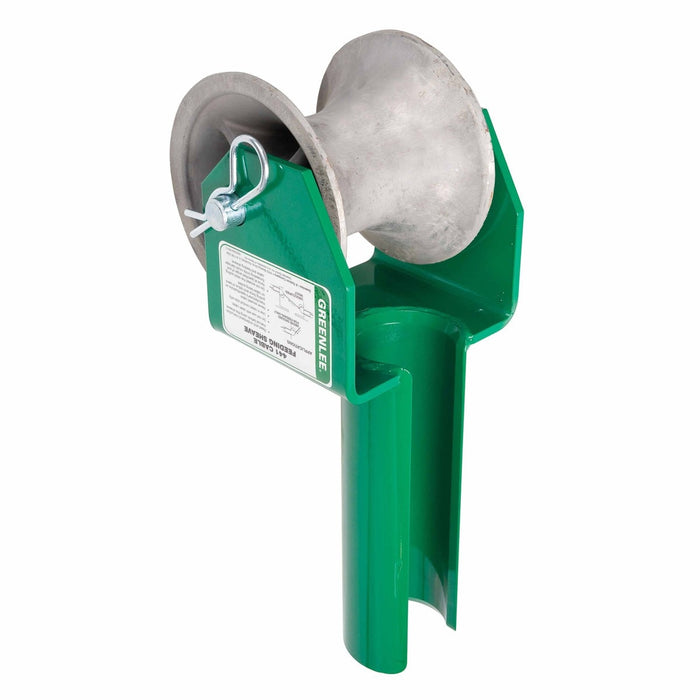

Greenlee 441-3 Feeding Sheave for 3" Conduit

Greenlee 441-3 Feeding Sheave for 3" Conduit

Availability:
in stock, ready to be shipped
Sale Sale
$473.37
$473.37 - $473.37
$473.37
$470.24
$470.24 - $470.24
$470.24

Product Description

Greenlee 441-3 Features

  • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
  • 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
  • Split tube for easy removal after cable is installed.

Greenlee 441-3 Specifications

Weight: 14 lbs. (6.4 kg)
Capacity (Angle Pull) 15 °: 6050 lbs. (26.9 kN)
Capacity (Angle Pull) 30°: 3150 lbs. (14.0 kN)
Capacity (Angle Pull) 45°: 2200 lbs. (9.7 kN)
Capacity (Angle Pull) 60°: 1800 lbs. (8.0 kN)
Capacity (Angle Pull) 75°: 1600 lbs. (7.1 kN)
Capacity (Angle Pull) 90°: 1550 lbs. (6.8 kN)
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
