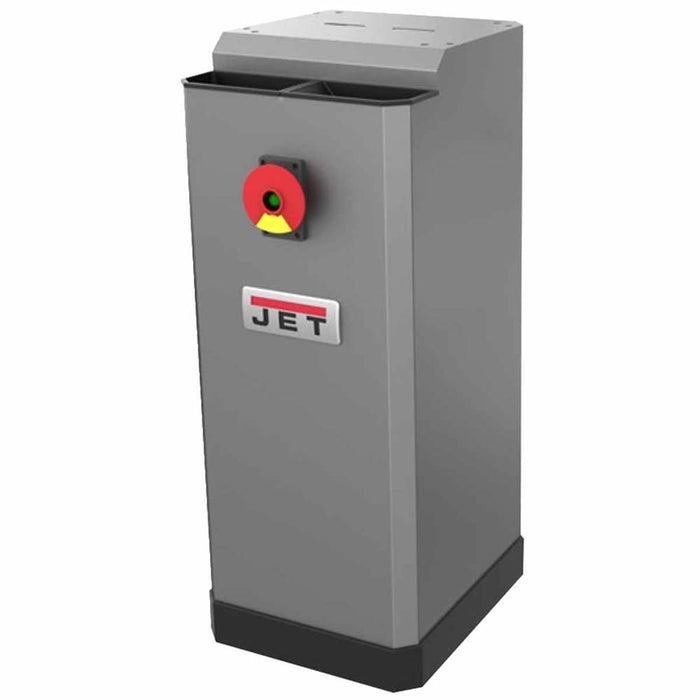

Jet 414800 JDCS-505, Metal Dust Collector Stand 115V

Product Description

FEATURES:
• Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
• Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
• Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
• Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
• Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
• ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
• Two 115V Outlets on side of unit for bench grinders & lamps
• Heavy-Duty 16 gauge steel construction
• Four Adjustable Leveling Pads
• Large On/off switch with safety key

SPECIFICATIONS:
• Motor (HP): 1/2 HP, 115V, 1Ph (20A)
• Hose Size (W x L) (In.): 2 Inlets @ 3"
• Overall Dimensions (L x W xH) (In.): 15-1/2 x 16 x 32-1/4
• Style (Type): Stand
• Maximum Hose Velocity (SFPM): 3,465
• Filter Efficiency: 90% @ 50 Microns
• Filter Size (W x L x D) (In.): 6-3/4 x 2-5/8 x 13-1/2
• Maximum CFM: 472
• Sound Rating (Db.): 75 db @ 10 Ft
• Static Pressure (Wc.): 748
• Max. Static Pressure (Wc.): 2,440

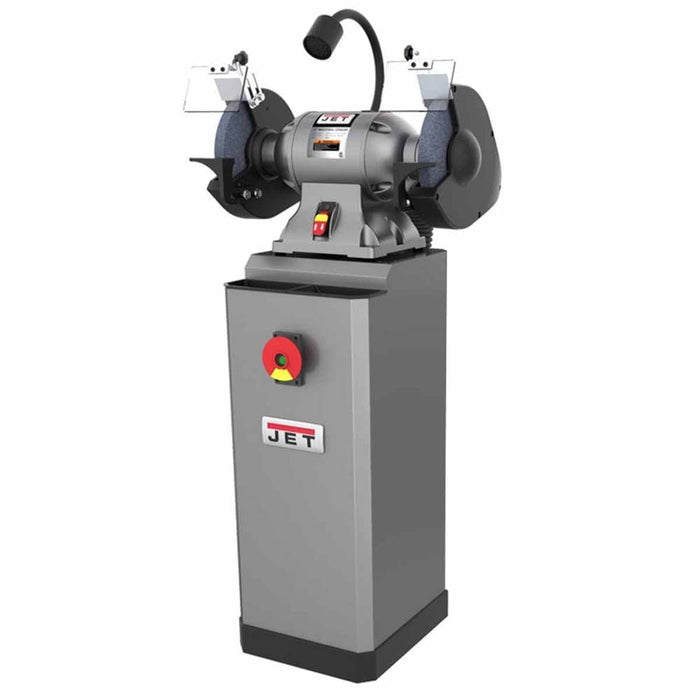

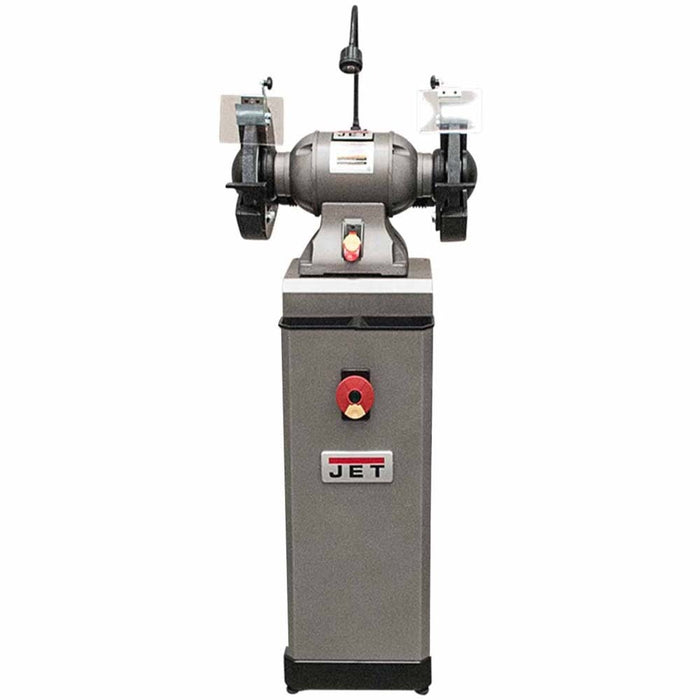

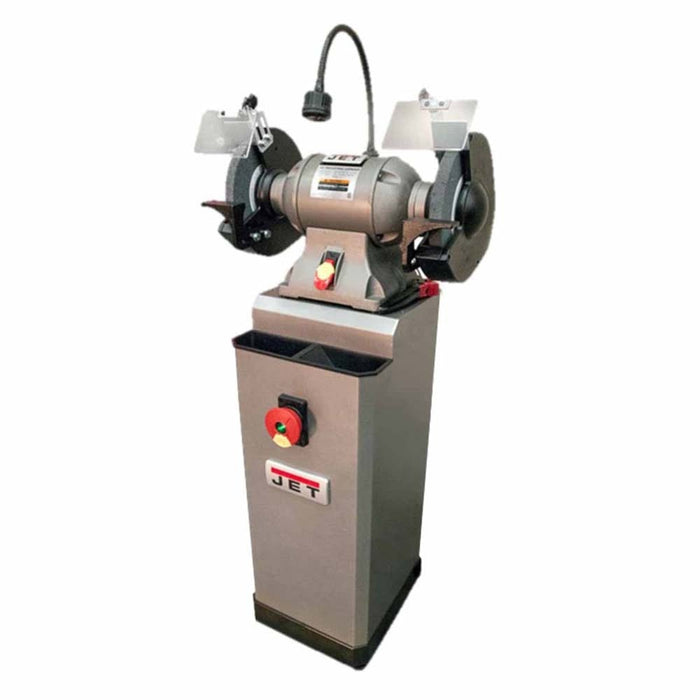

JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.
