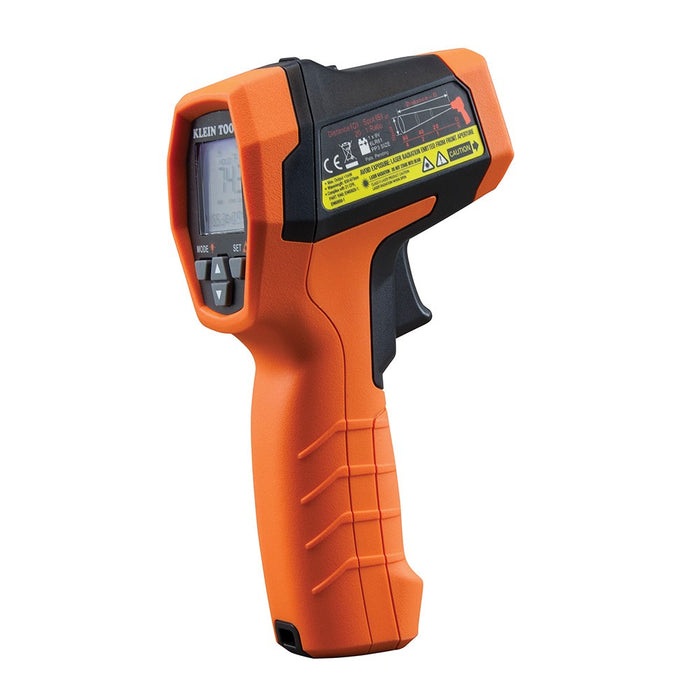

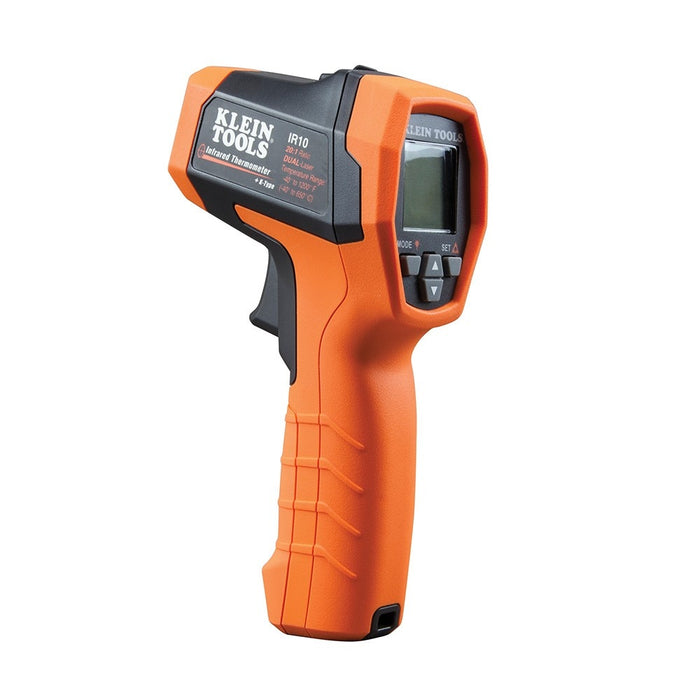

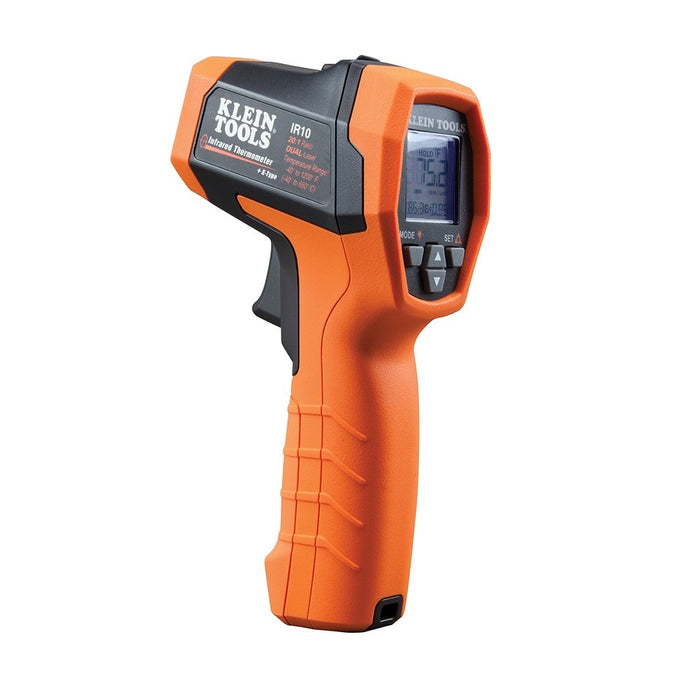

Klein IR10 Dual-Laser Infrared Thermometer, 20:1

Product Description

INCLUDES:
• (1) Custom Pouch
• (1) K-Type Probe
• (1) Battery

FEATURES:

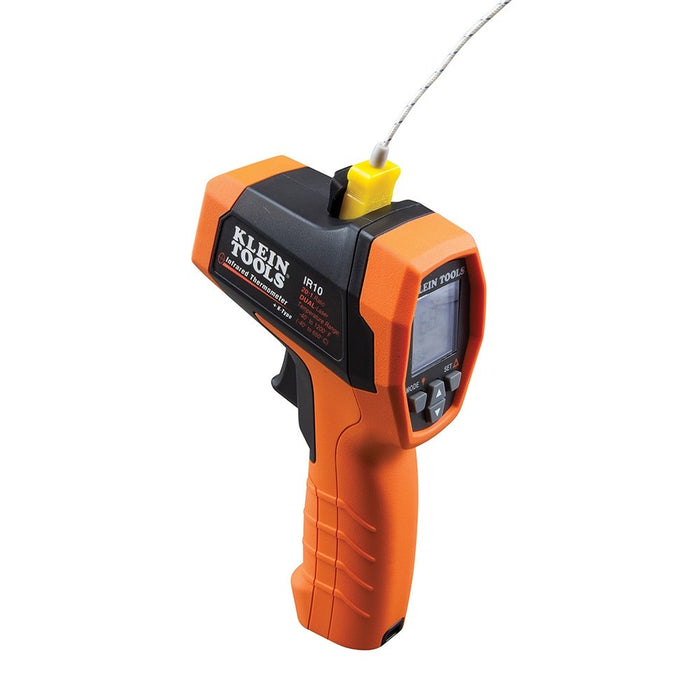

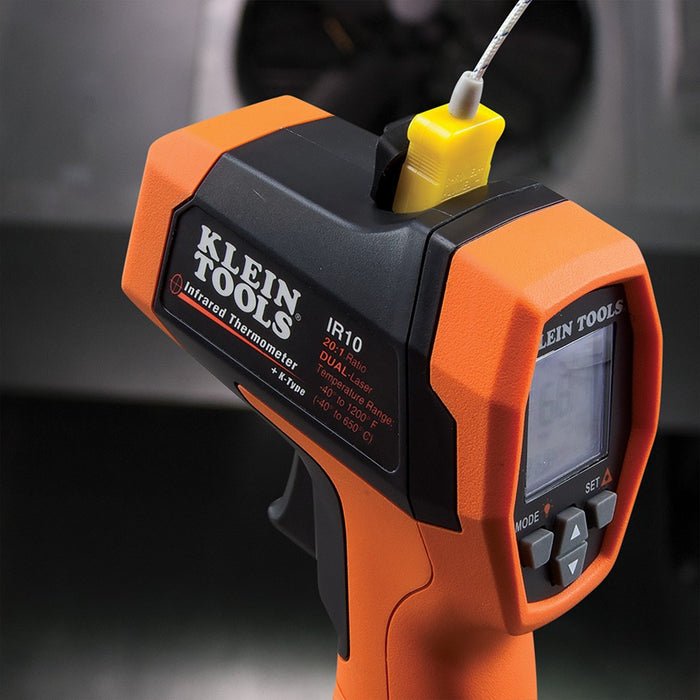

• Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe

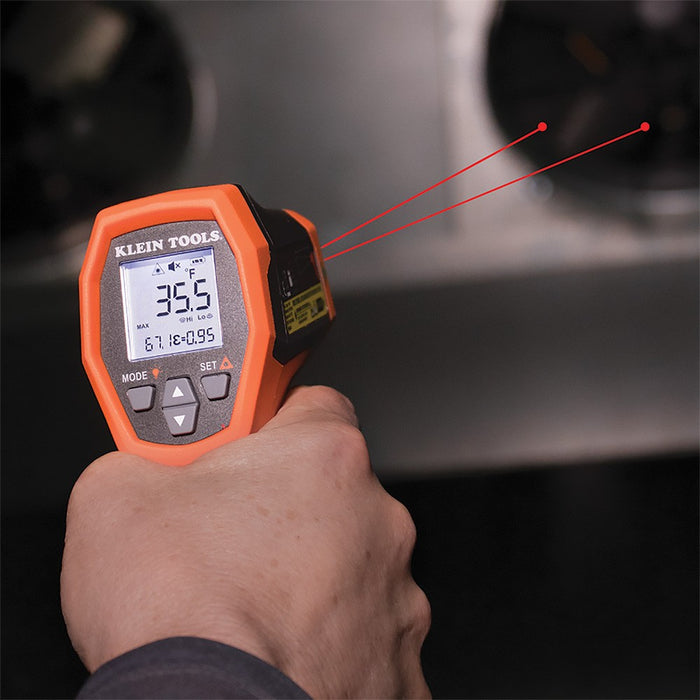

• Dual targeting lasers offer more accurate determination of the area being tested
• Optical Resolution (Distance-to-Spot) is 20:1
• Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
• Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
• Bright backlit display for working in low ambient lighting conditions
• Statistical parameters for measurement event - max/min/avg/diff
• User definable high/low limits with audible and visual alarms when limits are breached
• Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on

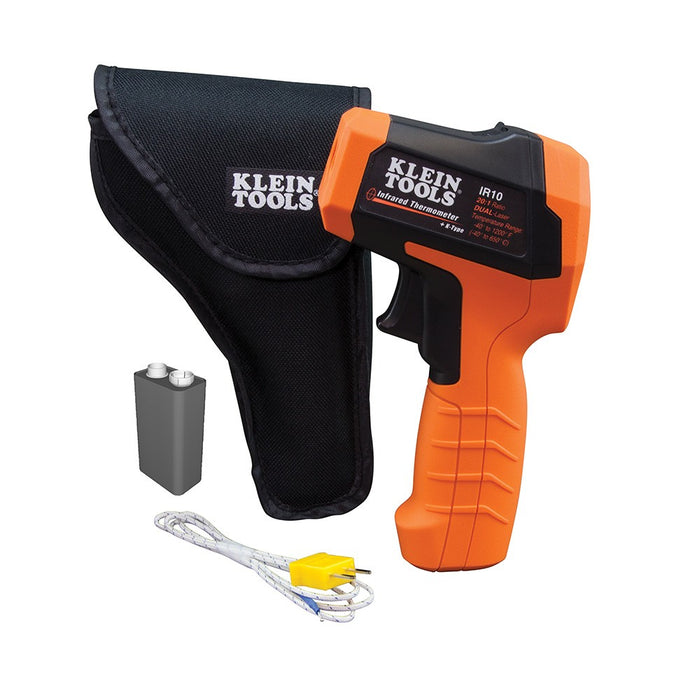

• Includes custom pouch, K-Type probe and battery
• Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
• IP54 ingress protections for dust and water resistance
• "Auto Power-Off" conserves and extends battery life
• U.S. patent D791,624

SPECIFICATIONS:
• Type: Dual-Laser Infrared Thermometer
• Application: Temperature Measurements Using IR Emission or K-Type Probe
• Special Features: Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
• Audible Alert: Y
• Material: Plastic Housing, Electronic Compenents
• Batteries: 1 x 9V
• Distance to Spot: 20:1
• Accuracy: IR: 32° F and Above: +/- 3° F or +/- 1.5% (Whichever is Greater); Less Than 32° F: +/- (3.6° F + 0.2° F per Degree); K-Type: 32° F and Above: +/- 2° F or +/-% (Whichever is Greater); Above 32° F: +/- 3° or +/1% (Whichever is Greater)
• Calculations: Min/Max/Difference/Average
• Display: Digital Backlit
• Display Resolution: 0.1F (0.1 C)
• Degree Format: F or C
• Range: -40° to 1200° F (-40° to 650° C)
• Response Time: <150ms
• Auto Calibration: N
• Overall Length: 7.00" (177.8 mm)
• Overall Height: 4.49" (114.0 mm)
• Overall Width: 2.05" (52.1 mm)
• Weight: 7.40 oz (210.0 g)
• Included: Custom Pouch, K-Type Probe and Battery


Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.
