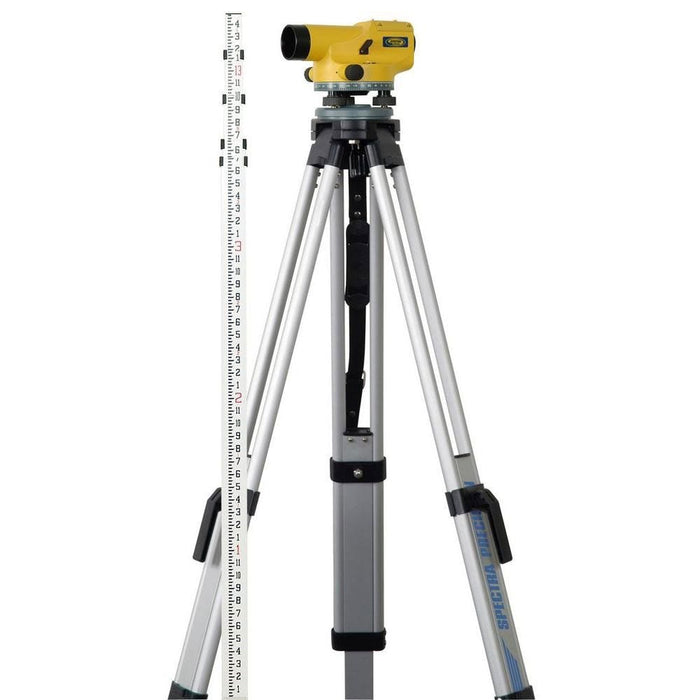

Spectra AL24M-2 24X Magnetic Dampened Automatic Level with Tripod and Rod (Inches)

Name: Spectra AL24M-2 24X Magnetic Dampened Automatic Level with Tripod and Rod (Inches)
Brand: Spectra Precision Laser
SKU: 42120
Price: 340.0 USD
Availability: InStock

Availability:

Only 2 left!

Sale

$350.00

$350.00 - $350.00

$350.00

$340.00

$340.00 - $340.00

$340.00

Quantity

Product Description

Spectra Precision Laser AL24M-2 Description

The AL24M series automatic levels are designed for a variety of elevation control and alignment tasks including general building construction, cut and fill measurements, area leveling, and landscaping.

Spectra Precision Laser AL24M-2 Includes

(1) AL24M Auto-Level
(1) GR152 Telescopic Aluminum Rod - Inches
(1) 5301-27-BLK-SP Tripod
(1) Hard carrying case

Spectra Precision Laser AL24M-2 Features

Choice of magnetic or air dampened automatic compensators
Double-sided, continuous horizontal tangent drives
Stadia lines for simple distance measurement
Convenient horizontal angle measurement
Built in bubble mirror and sighting guide
Metal housing for increased durability
Water resistant construction
Includes hardshell case

Spectra Precision Laser AL24M-2 Specifications

Magnification	24x
Objective Diameter	30 mm
Field of View Angle	1° 20'
Shortest Focusing Distance	0.6 m
Stadia Constant	100
Additive Constant	0
Compensator Dampening	Magnetic
Compensator Range	±15'
Compensator Setting Accuracy
Double Run Leveling per 1 km	2 mm
Circular Vial Accuracy	8/2 mm
Horizontal Circle	1°
Base Plate	5/8 x 11
Color	Yellow
Tripod	Yes
Rod	15', Inches
