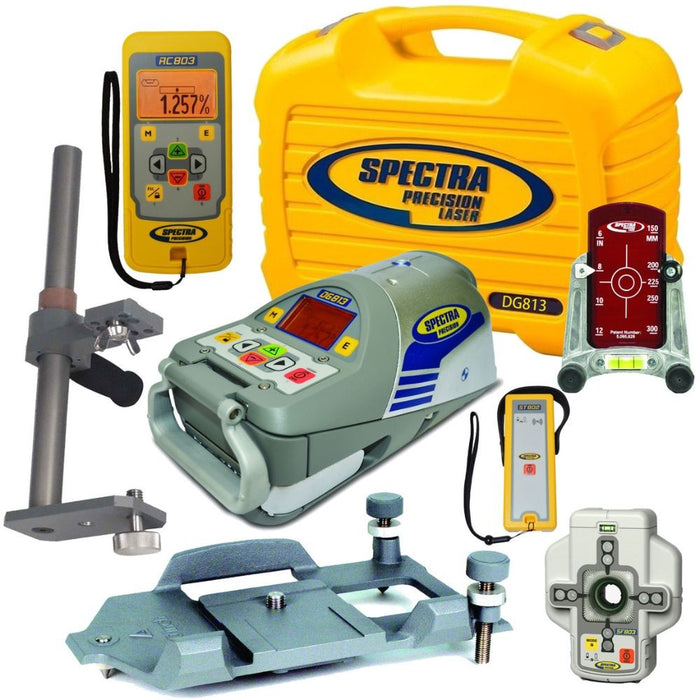

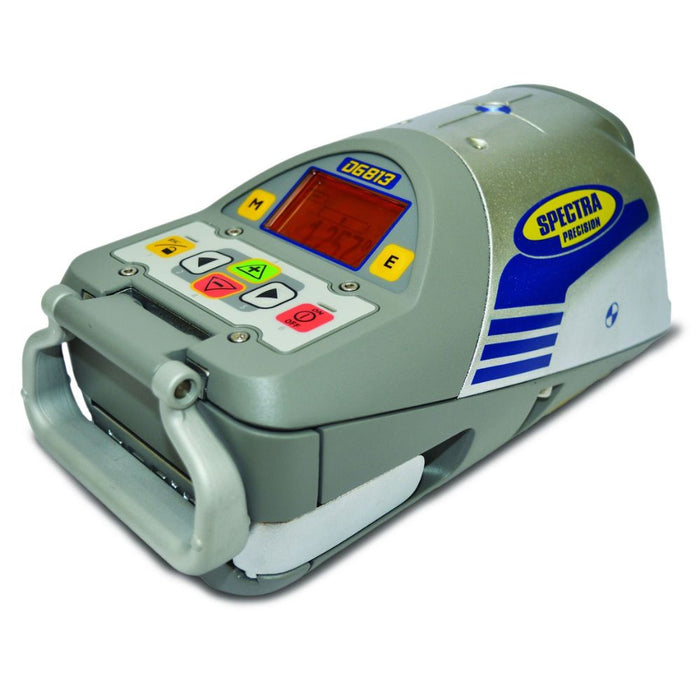

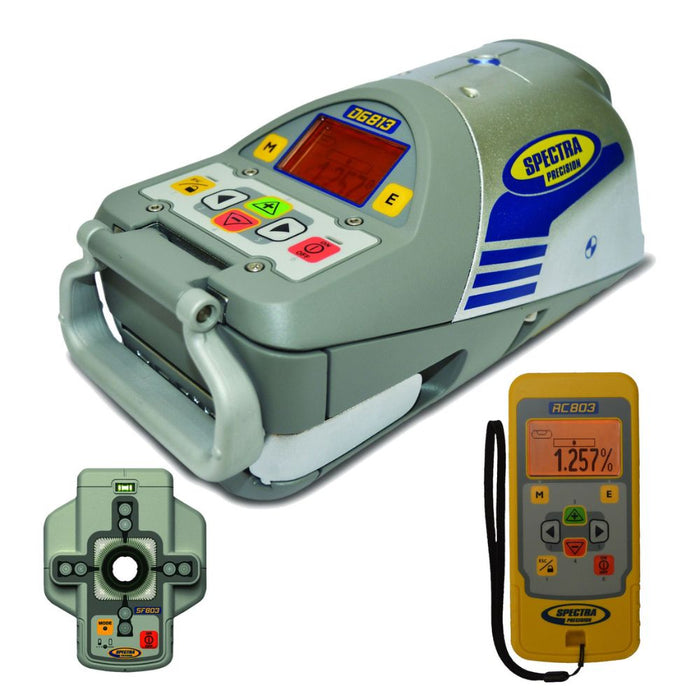

Spectra DG813-5 Pipe Laser with Dialgrade Graphic-Display, Large Pipe Plate, Vertical Pole, Remote, Spot Finder

Spectra Precision Laser DG813-5 Features

• New reduced length to make it easier to fit in pipes around tighter inverts
• Self levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe " place it in the pipe it levels, you work.
• Bright visible beam that works up to 500ft (150m)

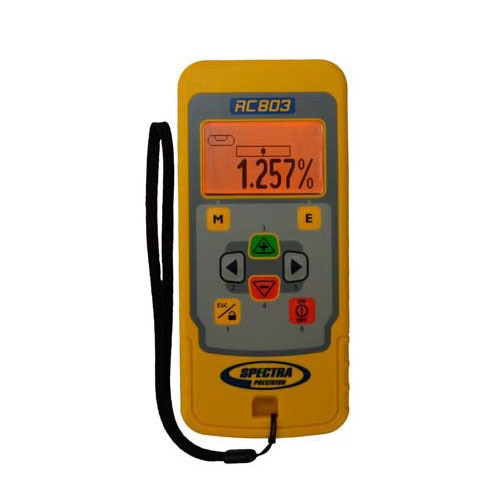

• RC803 remote works via radio 430ft (130m) or infra-red 500ft (150m) for both over-the-top set-up and in pipe/trench set-up.
• Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote " what you see on the laser you see on the remote.
• The DG813 has flexible power options that provide 40 hours operating time (NiMH rechargeable batteries with Worldwide charger) and 50 hours (alkaline batteries). Alkaline batteries can be used directly in the laser without a separate battery pack. Additional car charger can be purchased to keep you working even when out in remote areas.
• The Spectra Precision DG813 has advanced functionality that makes setting up and using it easier and more accurate:
• Line-Set/Check - allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
• Line Scan - provides a quick alignment to the centre of the target
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
• The SF803 SpotFinder, when used with DG813, provides other automatic functions making it the smartest pipe laser in the industry:
• Spot Align - automatically aligns the DG813 to the centre of the SpotFinder in the pipe or to the direction of the manhole when used in a trench or over-the-top set up.
• Spot Match - a great tool for checking that pipe has been installed to the correct grade
• or for finding the grade of existing pipe work. Can also be used to calculate the grade between manholes.
• SpotLok - can be used to lock the beam in a desired position for applications such as solar farms where the beam could be subject to drift.
• Spot Search - can be used to locate the beam over long distances out of the trench
