Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit

Special Offer: Save $500 on select Items - Look for this banner on qualifying itemsCoupon Code: BF500


Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit

Availability:
Only 1 left!
$2,364.99 - $2,364.99
$2,364.99
$2,891.95
$2,891.95 - $2,891.95
$2,891.95

Product Description

Pacific Laser Systems 5022558 Description

The PLS HV2R Kit is a red horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

Pacific Laser Systems 5022558 Includes

  • (1) PLS HV2R Rotary Laser Level

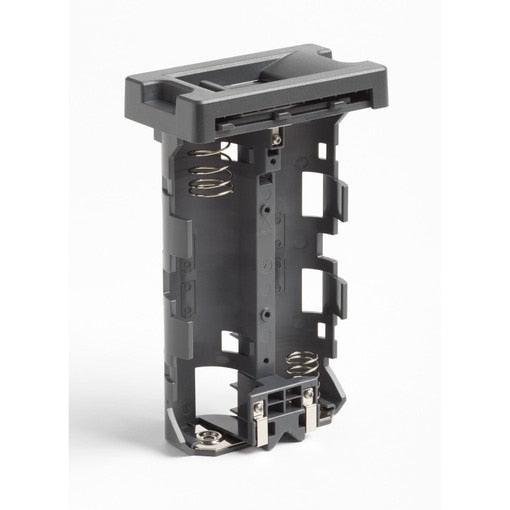

  • (1) PLS BP10 Alkaline Battery Tray
  • (4) D Batteries

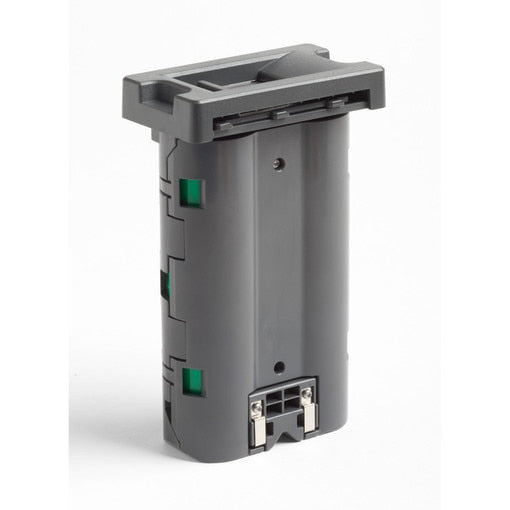

  • (1) PLS RBP10 NiMH Battery Tray

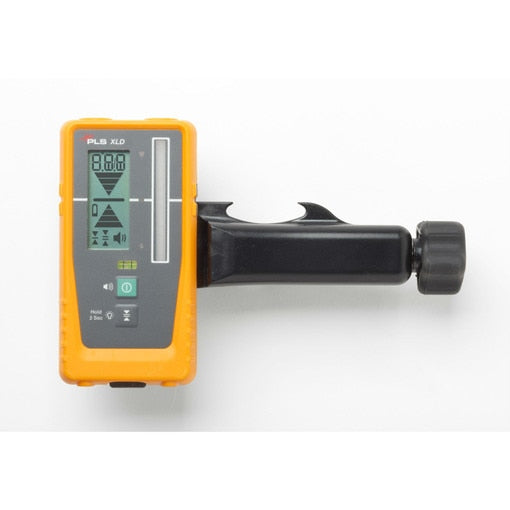

  • (1) PLS XLD Detector with Clamp

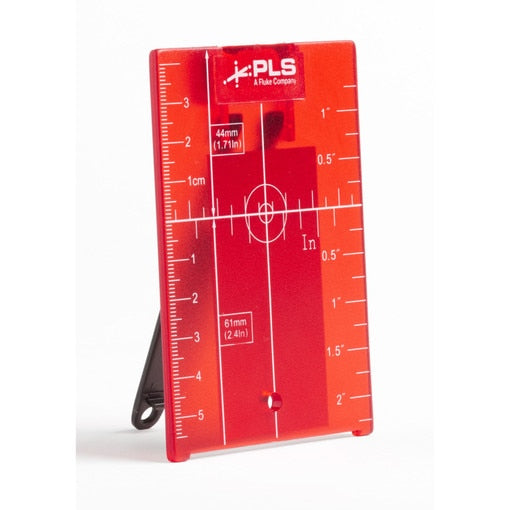

  • (1) PLS RRT4 Reflective Target

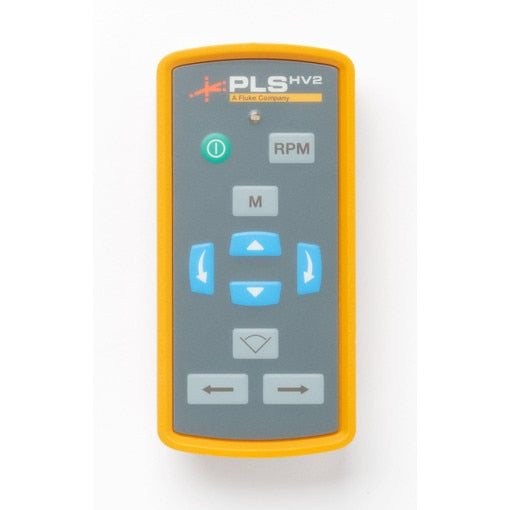

  • (1) PLS RC2 Remote
  • (1) PLS WCB10 Bracket

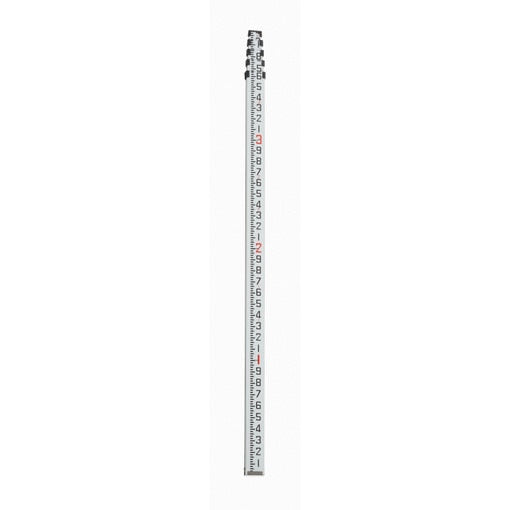

  • (1) PLS GR16 Grade Rod

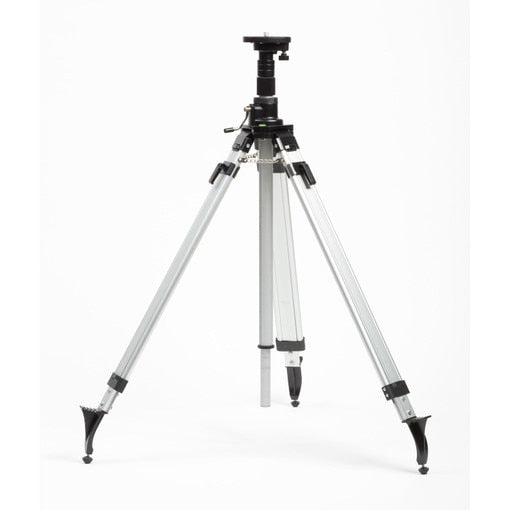

  • (1) PLS TPOD500 Tripod

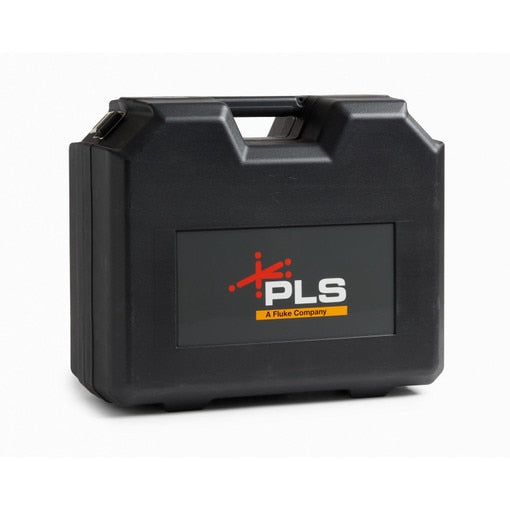

  • (1) PLS C19 Carrying Case
  • (1) Quick Reference Guide
  • (1) Safety Documentation

Pacific Laser Systems 5022558 Features

  • Red Horizontal/Vertical Rotary Laser Level
  • Class II Red Laser
  • Self-leveling within ±5 degrees
  • Dual Manual Slope
  • Up-Point for Layout Tasks
  • Remote Control
  • Alkaline and NiMH Battery Trays



Rotary levels PLS HV2R PLS HV2G
Laser Class II red Class II green
Laser axis Horizontal and Vertical Horizontal and vertical
Accuracy ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
Auto-leveling range ± 5-degrees ± 5-degrees
Manual slope range ± 5-degrees ± 5-degrees
Working range
Without XLD
laser detector		 ≤ 30 m (100 ft) ≤ 30 m (100 ft)
With XLD
laser detector		 ≤ 300 m (1000 ft) ≤ 300 m (1000 ft)
Weight 3 kg (6.6 lb) 3 kg (6.6 lb)
Drop test 1 m 1 m
IP rating IP67 IP67
Operating
temperature 		-20 °C to 50 °C (-4 °F to 122 °F) -20 °C to 50 °C (-4 °F to 122 °F)
Battery 4 x D Alkaline or NiMH rechargeable 4 x D Alkaline or NiMH rechargeable
Battery life > 60 hours > 60 hours
Accessories PLS XLD Rotary Laser Detector
Working range 300m (1000 ft)
Dimensions 135 mm x 69 mm x 25 mm
Weight 0.19 kg (0.42 lbs)
Drop test 1 m
IP rating IP67
Operating
temperature 		-20 °C to 50 °C (-4 °F to 122 °F)
Battery 1 x AA Alkaline
Battery life > 50 hours
Visible spectrum 450 nm – 800 nm
Accuracy
Fine 1 mm (0.05 in)
Medium 2 mm (0.1 in)
Coarse 5 mm (0.2 in)
Electromagnetic compatibility (EMC)
International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
Korea (KCC) Class B Equipment (Broadcast communications equipment for home)
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
