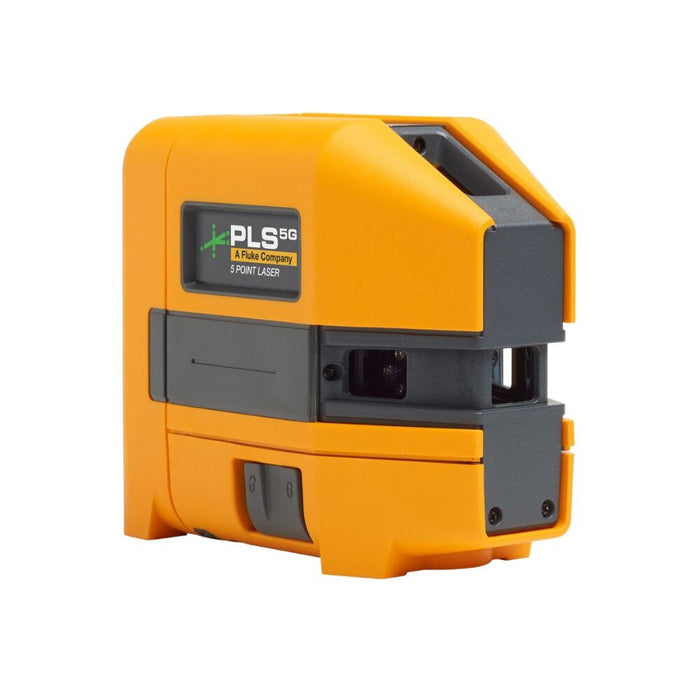

Pacific Laser Systems 5009406 PLS 5G Z, 5-Point Green Laser Bare Tool

Pacific Laser Systems 5009406 PLS 5G Z, 5-Point Green Laser Bare Tool

Availability:
Only 1 left!
$521.99 - $521.99
$521.99
$639.41
$639.41 - $639.41
$639.41

Product Description

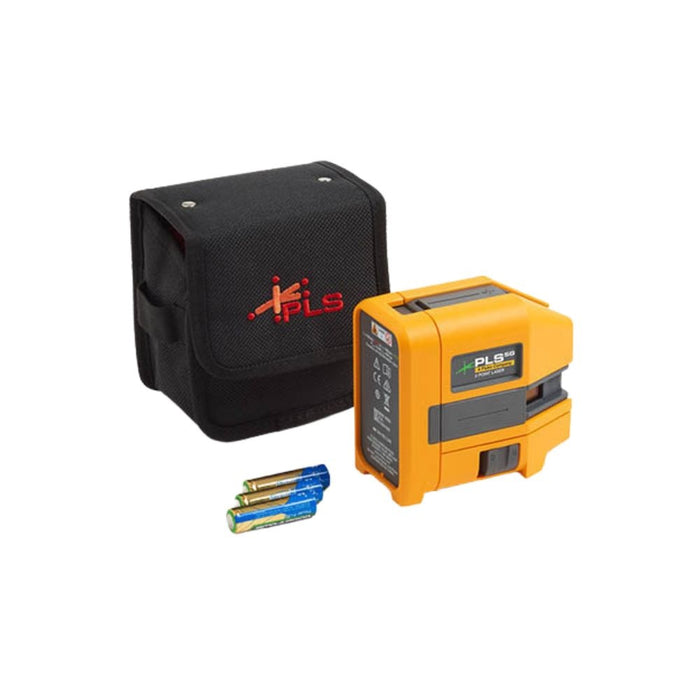

Pacific Laser Systems 5009406 Includes

  • (1) PLS 5G laser level
  • (1) PLS-60573 canvas pouch
  • (3) PLS BP5 alkaline battery pack with AA batteries
  • (1) Bracket knob (for use with older PLS floor stand and magnetic L-brackets)
  • (1) Quick Reference Guide
  • (1) Safety Documentation

Pacific Laser Systems 5009406 Features

  • Green 5-Point Laser Level
  • Class II Green Laser
  • Self-leveling within ±4 degrees
  • Pendulum Lock



Specifications
Battery 3 x AA Alkaline IEC LR6
Battery Life, Continuous Use Red ≥ 30 hours
Green ≥ 16 hours

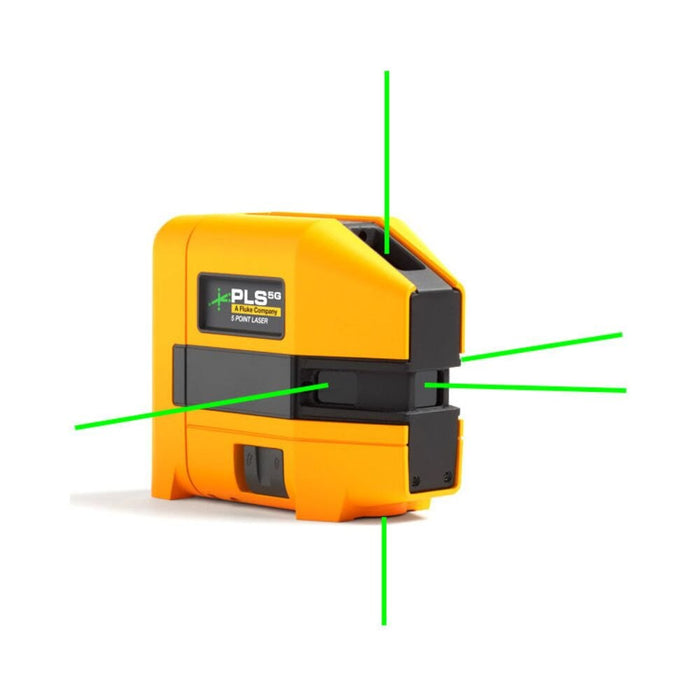

Point Laser Direction 90° up, down, forward
Working Range ≤ 30 m (100 ft.)
Accuracy ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
Laser Leveling System Automatic, Pendulum
Range 4 °
Point Laser Diameter ≤ 4 mm at 5 m
Temperature Operating -10 °C to 50 °C (14 °F to 122 °F)
Storage 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
With Batteries -18 °C to 50 °C (-0.4 °F to 122 °F)
Without Batteries -20 °C to 70 °C (-13 °F to 158 °F)
Relative Humidity 0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Size (H x W X L) 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
Weight ~0.6 kg (1.3 lb.)
Safety IEC 61010-1: Pollution Degree 2
Laser IEC 60825-1:2014 Class 2
Light Source Semiconductor laser diode
Max Output Power < 1 mW
Wavelength Red 635 nm ± 5 nm
Green 525 nm ± 5 nm
