Milwaukee 49-12-KITC EXACT™ #6 - 750 MCM Copper 12T U-Style Die Kit

Availability:
Out of stock
Sold out
Original price $2,159.00
Original price $2,159.00 - Original price $2,159.00
Original price $2,159.00
Current price $1,349.99
$1,349.99 - $1,349.99
Current price $1,349.99

Product Description

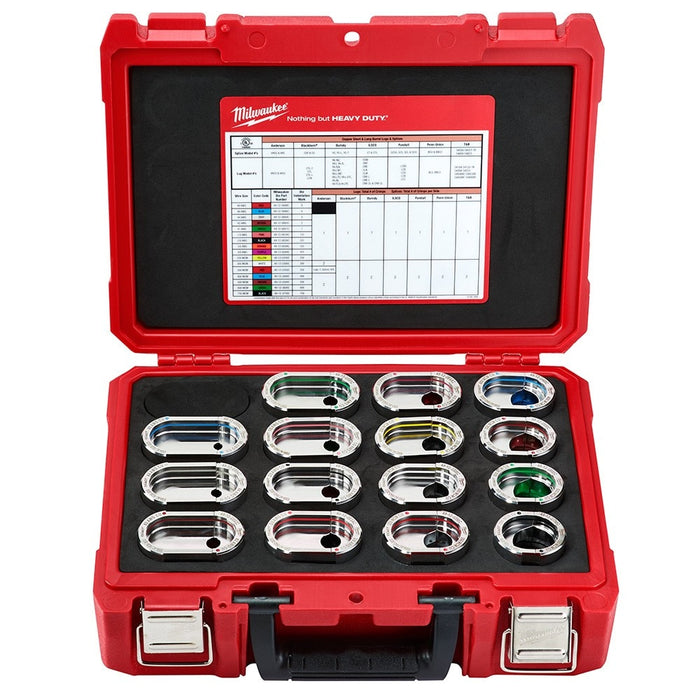

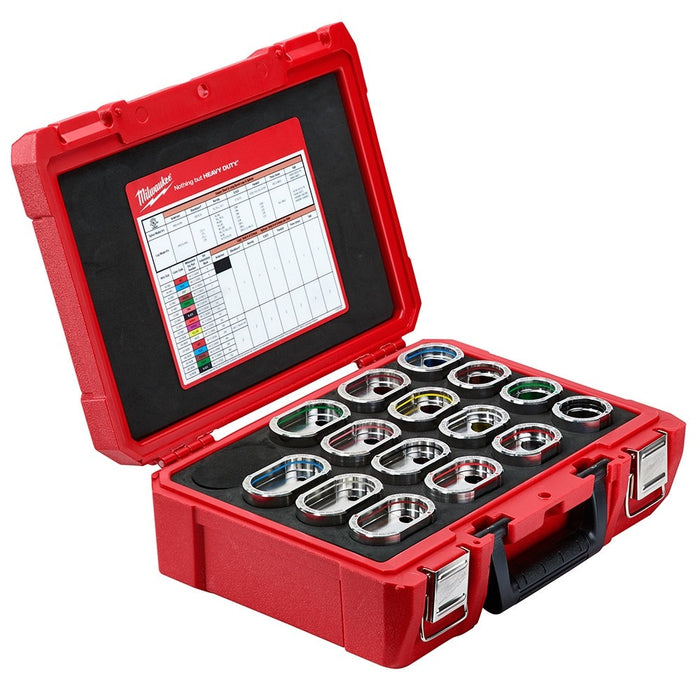

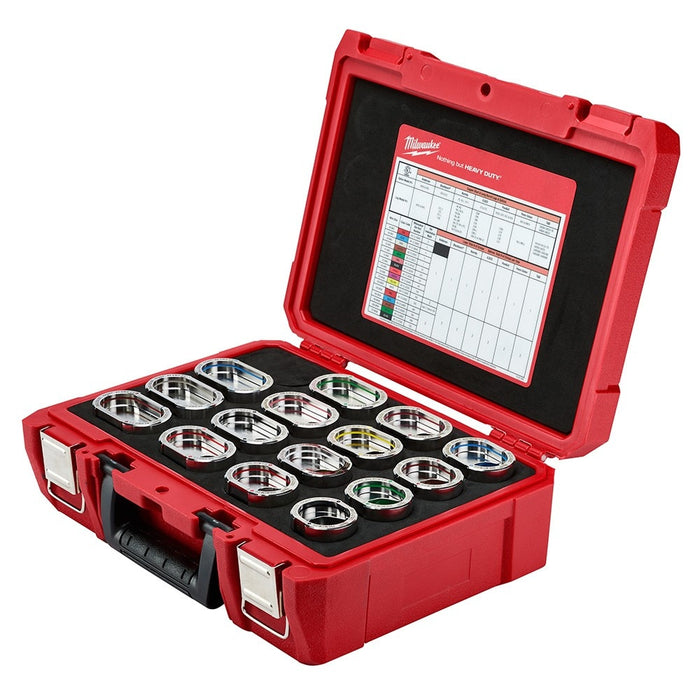

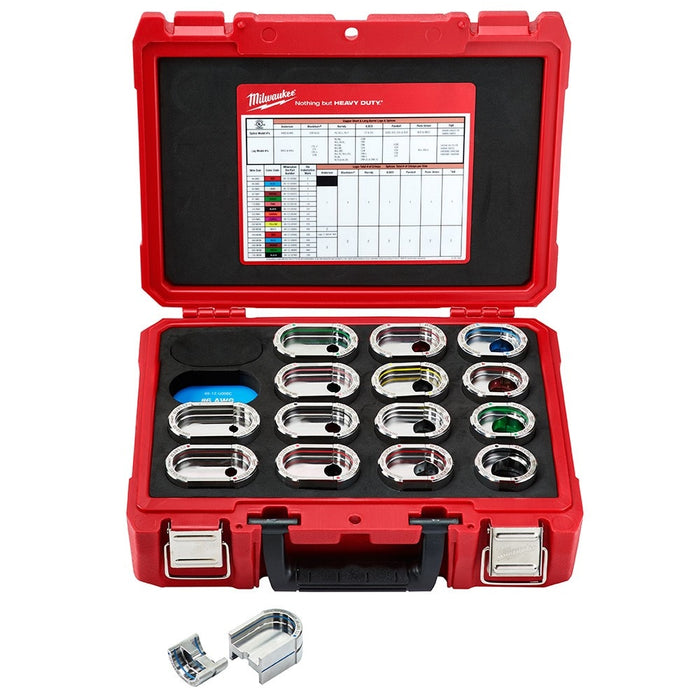

INCLUDES:
• (1) EXACT™ #6 Copper U Style Die (49-12-U006C)
• (1) EXACT™ #4 Copper U Style Die (49-12-U004C)
• (1) EXACT™ #2 Copper U Style Die (49-12-U002C)
• (1) EXACT™ #1 Copper U Style Die (49-12-U001C)
• (1) EXACT™ 1/0 Copper U Style Die 49-12-U01AC
• (1) EXACT™ 2/0 Copper U Style Die (49-12-U02AC)
• (1) EXACT™ 3/0 Copper U Style Die (49-12-U03AC)
• (1) EXACT™ 4/0 Copper U Style Die (49-12-U04AC)
• (1) EXACT™ 250 MCM Copper U Style Die (49-12-U250C)
• (1) EXACT™ 300 MCM Copper U Style Die (49-12-U300C)
• (1) EXACT™ 350 MCM Copper U Style Die (49-12-U350C)
• (1) EXACT™ 400 MCM Copper U Style Die (49-12-U400C)
• (1) EXACT™ 500 MCM Copper U Style Die (49-12-U500C)
• (1) EXACT™ 600 MCM Copper U Style Die (49-12-U600C)
• (1) EXACT™ 750 MCM Copper U Style Die (49-12-U750C)
• (1) Carrying Case

FEATURES:
• Fastest Connections: Die length specific to connector size
• Easy Identification: Wire Size marked on each side
• Eliminates Cross Referencing: Die size pressed into connector matches wire size
• Color Coding: For easiest selection

SPECIFICATIONS:
• Great with Milwaukee M18 ForceLogic 12T Crimpers
• Creates UL Classified Connections when used with 2779-22 Crimper and Major Connector Manufacturers
• No Warranty on Dies


The M18™ FORCE LOGIC™ 750 MCM Crimper is the Easiest Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Cu and Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. Milwaukee® EXACT™ 12T U-Style Dies are individually engineered both for quality crimps and for faster connections on all sizes with die lengths specific to each connector. In addition every EXACT™ 12T U-Style Die features vivid industry standard colors to indicate wire size and center alignment markings for easiest die selection and die alignment. All dies also eliminate cross referencing by imprinting the wire size onto completed connectors and are the only dies that are 100% serialized and measured for greatest accuracy and easiest inspection.
