Fluke 116/323 HVAC Combo Kit (Multimeter & Clamp Meter)

Availability:
in stock, ready to be shipped

Sale Sale
Original price $395.99
Original price $395.99 - Original price $395.99
Original price $395.99
Current price $354.99
$354.99 - $354.99
Current price $354.99
 More payment options

Product Description

Fluke 4296029 Description

Having the right tool for the job is essential. Having all the right tools when you need them is even better. The Fluke 116/323 HVAC Combo Kit gives you the best in a versatile, rugged multimeter and a fast-acting, general purpose clamp meter. The Fluke 116 comes with the Fluke 80BK-A integrated DMM temperature probe; no need to carry a separate thermometer. The microamp function allows flame sensor measurement down to 0.1 microamps. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 116 also has a large white LED backlight for work in poorly lit areas. It measures resistance, continuity, frequency, and capacitance and provides Min/Max/Average readings with elapsed time to record signal fluctuations. Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments. True RMS measurements and optimized ergonomics make the Fluke 323 True RMS Clamp Meter the best general purpose clamp meter for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments. Together, the Fluke 116 HVAC Multimeter and 323 True RMS Clamp Meter give electricians the right tools for the job.

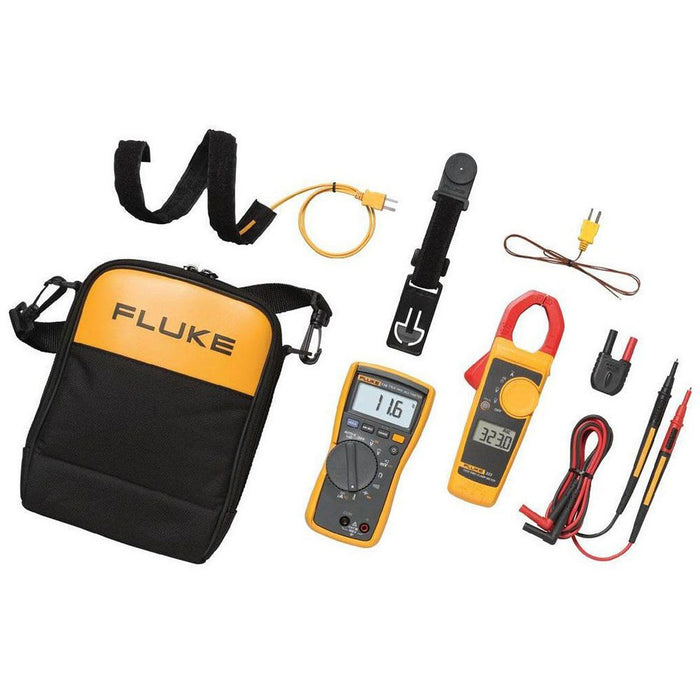

Fluke 4296029 Includes

  • (1) Fluke 116 HVAC Multimeter
  • (1) Fluke 323 True-RMS Clamp Meter
  • (1) TL175 Hard Point Test Lead Set
  • (1) TPak ToolPak Magnetic Meter Hanging Strap
  • (1) Flexible Cuff Pipe Clamp Thermocouple
  • (1) 80BK Integrated Temperature Probe
  • (1) 80AK-A Thermocouple Adapter
  • (1) C115 Deluxe Soft Carrying Case with Shoulder Strap

Fluke 4296029 Features

  • Built-in thermometer for HVAC applications
  • Microamps to test flame sensors
  • Low input impedance: helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average with elapsed time to record signal fluctuations
  • Compact ergonomic design for one-handed operation
  • Compatible with optional magnetic hanger (ToolPak™)
  • CAT III 600 V safety rated

Fluke 4296029 Specifications

Maximum voltage between any terminal and earth ground 600 V
Surge protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Battery type 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery life 400 hours typical, without backlight
Size 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight 550 g
Warranty 3 years
3 Ratings
5.0out of 5 stars
3 Ratings

Rated 5 stars by 100% of reviewers

Rated 4 stars by 0% of reviewers

Rated 3 stars by 0% of reviewers

Rated 2 stars by 0% of reviewers

Rated 1 star by 0% of reviewers

3 Reviews
Rated 5 out of 5
Dec 15, 2016
Great features in a great combo kit
I purchased two of these kits for our HVAC techs about a month ago.

Initially they thought the smaller size of the DMM meter implied it didn't have all the features to what they needed. They have been quick to realize size doesn't matter and have grown to like this little gem.

The DMM is compact and fits nicely in a tool pouch. The magnetic hanging strap is one of their favorite features. Sometimes the simplest features make a difference. The other goodies included with this kit make it great for any HVAC tech.

The 323 clamp meter is awesome for quick current readings and verifications. The thermocouples are very useful.

Do yourself a favor and get the kit which includes a carrying case to hold everything so you aren't losing your stuff and beating it up. This is the perfect kit for field service HVAC work for AC/DC 0 to 480 volts.
Rated 5 out of 5
Dec 8, 2016
Great meter set for every Hvac tech
Nearly a year since I purchased this kit to replace my 15yr old fluke meter (which works fine because it lacked a few settings I needed everyday. I work on all hvac equipment residential, commercial, industrial and commercial and residential backup generators and this meter never lets me down and has all the features I need for fast efficient diagnosis and routine maintenance. Many of the guys I work with have ditched the field piece and tpi meters they were using to buy this kit and not a one regrets it and all swear by fluke products
Rated 5 out of 5
Dec 7, 2016
Great Tool
I bought this meter about a year ago and this is fantastic!! I love the magnetic feature never having to juggle the meter with one hand and trying to read with another. The clamp meter is small and compact and can fit into almost anywhere. The meter is very durable and takes alot of beating that is given to it on the job. The battery life is fantastic and never had to change the batteries yet.
