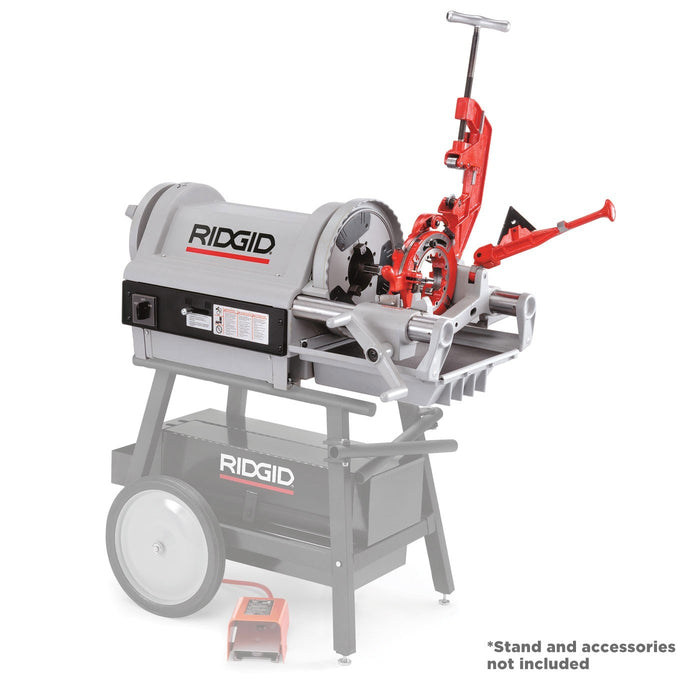

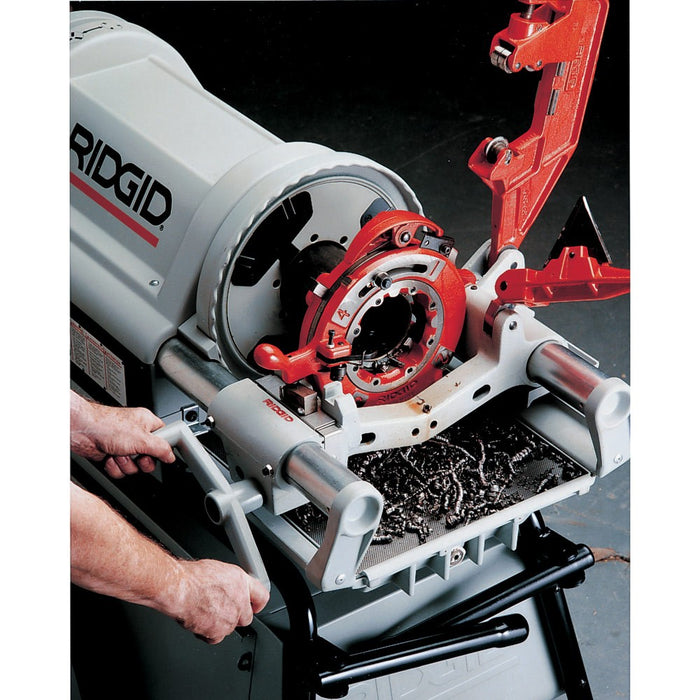

RIDGID 26092 Model 1224 Pipe Threading Machine 1/4"-4" Capacity

Product Description

INCLUDES:
• (1) Threading Machine

FEATURES:
• Threads A Variety Of Pipes: Black, Galvanized, Plastic-Coated Pipe, Along With Stainless Steel, Imc & Heavy-Wall Conduit, And Rod Up To 30 Rockwell C
• Induction Motor Helps Minimize Noise
• Special Capacitor-Start/Capacitor-Run Motor Allows It To Thread A Full Range Of Material Where Voltage Drop Is Experienced
• 1/4"-2" Universal Die Head; 2-1/2" To 4" Receding Die Head Allows Cutting Of Tapered Or Straight Npt/Npsm Or Bspt/Bspp Threads
• Constant And Proper Lubrication Of Dies And Workpiece With Through-Head Oiling

SPECIFICATIONS:
• Pipe Capacity: 1/4"-4" (6mm-100mm) 4"-6" (100mm-150mm) with 161 Geared Threader
• Bolt Capacity: 1/4"-2" (6mm-50mm)
• Motor: 1-1/2 HP, single-phase, 60 Hz, induction type
• Motor Control: Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch
• Spindle Speed: 36/12 RPM
• Gear Box: Two-speed gear box 3:1 ratio
• Chuck: Hammer-type with replaceable rocker-action jaw inserts
• Rear Centering Device: Cam action
• Cutter: Model 764 full-floating, self-centering 1/4"-4" with F-229 cutter wheel
• Reamer: Model 744, 1/4"-4" blade-type
• Pump: Self-priming, gerotor-type, automatic-reversing, (more...)
