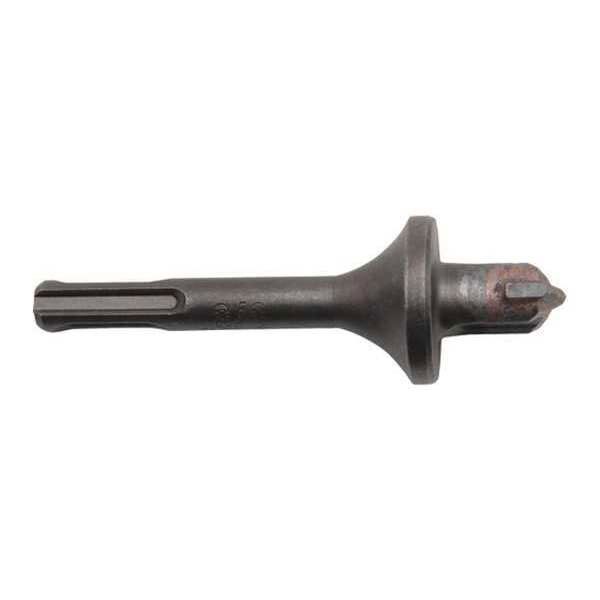

Powers Fasteners PPA2431720 5/8" x 3/4" Stop Drill Bit for Mini-Undercut+ Anchors

Powers Fasteners PPA2431720 5/8" x 3/4" Stop Drill Bit for Mini-Undercut+ Anchors

Availability:
in stock, ready to be shipped
Sale Sale
$27.20
$27.20 - $27.20
$27.20
$20.16
$20.16 - $20.16
$20.16
 More payment options

Product Description

Powers Fasteners PPA2431720 Description

The Mini-Undercut+ anchor is an internally threaded, self-undercutting anchor designed for performance in cracked and uncracked concrete. Suitable base materials include post-tension concrete (PT slabs), hollow-core precast concrete, normal-weight concrete, sand-lightweight concrete and concrete over steel deck. The Mini-Undercut+ anchor is installed into a pre-drilled hole with a power tool and a setting tool. The result is an anchor which can provide consistent behavior at shallow embedments as low as 3/4 of an inch. After installation a steel element is threaded into the anchor body.

Powers Fasteners PPA2431720 Includes

  • (1) 5/8" x 3/4" Stop Drill Bit for Mini-Undercut+™ Anchors

Powers Fasteners PPA2431720 Features

  • Ideal for precast hollow-core plank and post-tensioned concrete slabs
  • Cracked concrete tested alternative to a mini dropin anchor
  • Redesigned ANSI carbide stop bit with enlarged shoulder for accurate depth
  • Anchor design allows for shallow embedment as low as 3/4 of an inch
  • Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
  • Drill and drive the anchor with one tool for fast anchor installation
  • International Code Council, Evaluation Service (ICC-ES), ESR-3912 for Concrete and Hollow-Core precast slabs, Code Compliant with the 2015, IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, and 2009 IRC.
  • Qualified according to ACI 355.2 (including ASTM E 488) for use in concrete
  • FM Approvals (Factory Mutual) – File No. J.I. 3059197

Powers Fasteners PPA2431720 Specifications

Bit Diameter 5/8"
Bit Sizes 5/8"
Drill Bit Type Stop
Drilling Depth in 3/4"
Magnetic No
Number Of Pieces 1 Piece
Product Type Stop Bit
Shank Size 25/64"
Shank Style SDS-Plus
Applications Tension zones, seismic and wind loading applications; Suspended Conduit; Fire Sprinkler & pipe supports; Cable Trays and Strut; Suspended Lighting
Overall Length 3-51/64"
Number of Cutter Heads 2
Weight 0.25 lbs
