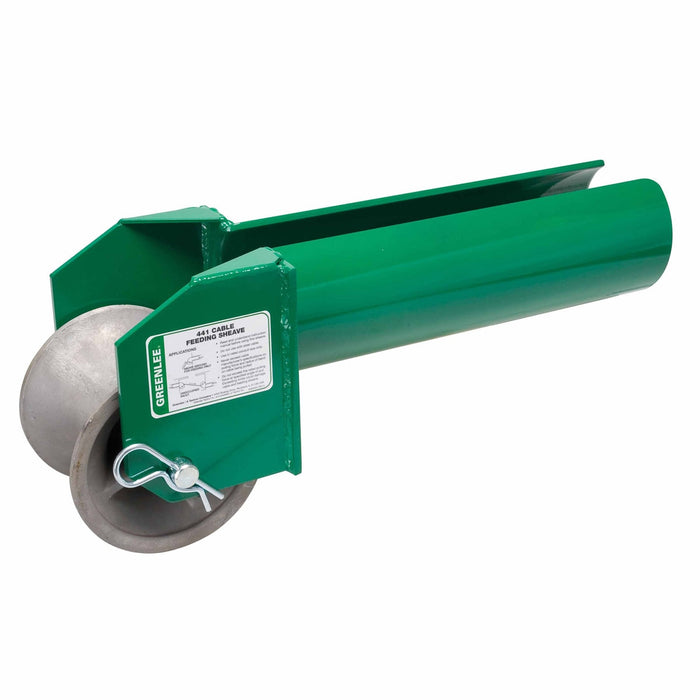

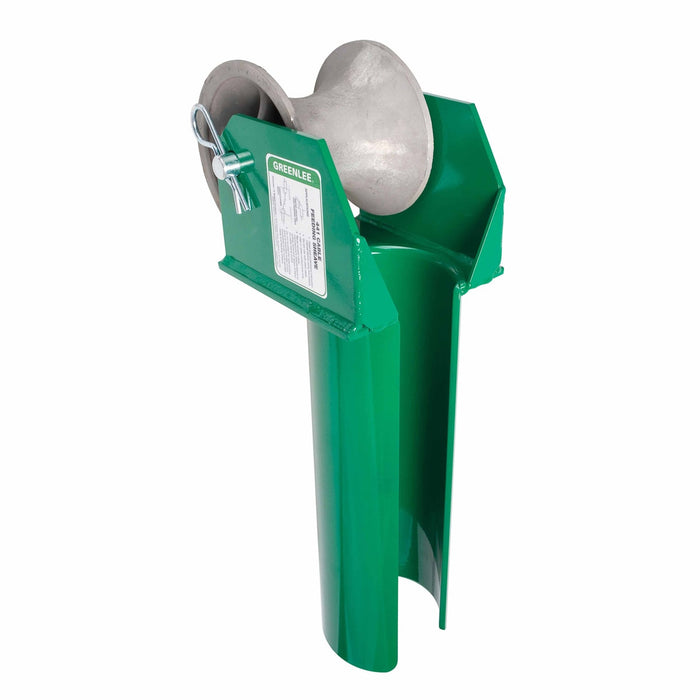

Greenlee 441-3-1/2 Feeding Sheave for 3-1/2" Conduit

Product Description

Greenlee 441-3-1/2 Specifications:
•Weight: 17 lbs. (7.7 kg)
•Capacity (Angle of Pull) -
•15 °: 6500 lbs. (28.9 kN)
•30°: 5050 lbs. (22.4 kN)
•45°: 3550 lbs. (15.7 kN)
•60°: 2900 lbs. (12.8 kN)
•75°: 2600 lbs. (11.5 kN)
•90°: 2500 lbs. (11.1 kN)

Greenlee 441-3-1/2 Features:
•Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
•5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
•Split tube for easy removal after cable is installed.
