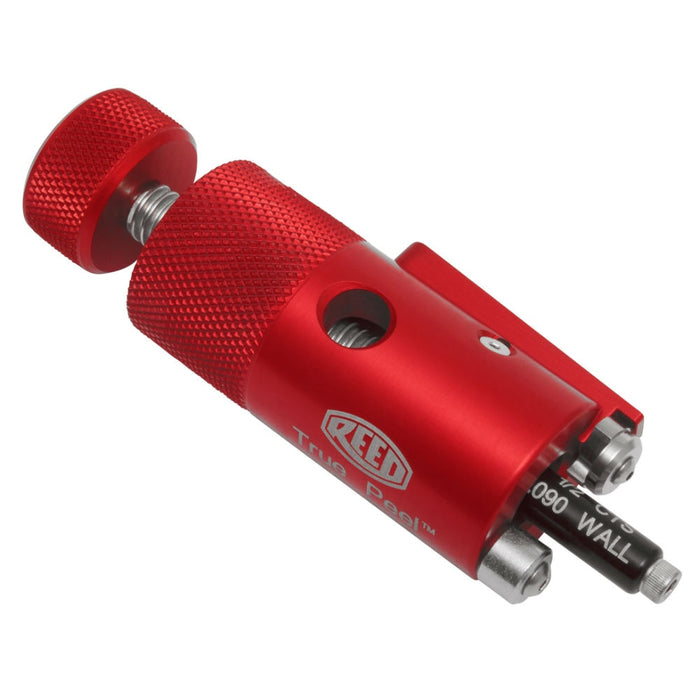

Reed 04637 PEP1IPS11 True Peel PE Prep Tool

Product Description

INCLUDES:
• (1) True Peel PE Prep Tool

FEATURES:
• Prepares the ends of PE pipe and tapping tees for electrofusion.
• Removes .009" - .012" peel thickness.
• Spring actuated blade gives a complete peel, even on out-of-round pipe.
• Observation window indicates the completion of the peel.
• External cutting blade allows for clear observation of the peel removal.
• Hardened tool steel cutting blade w two cutting edges for twice the life.
• Close fitting mandrel to round pipe that may be oval.
• Includes a protective carrying case.

SPECIFICATIONS:
• Length: 6.5
• Width: 2.6
• Height: 2.4


Electrofusion requires the outside diameter of pipe to be clean and free of oxidation. The True Peel™ PE Prep Tool removes dirt and oxidation from the outside diameter of the pipe in preparation for electrofusion. Its spring-loaded blade does not skip and it keeps consistent pressure on the pipe to yield a smooth, finished surface. The blade completely peels even out-of-round pipe with the help of the close fitting mandrel which rerounds oval pipe. Blade may be rotated 180 degrees to provide a second cutting edge, giving twice the blade life. An observation window allows operator to see when the peel (more...)
