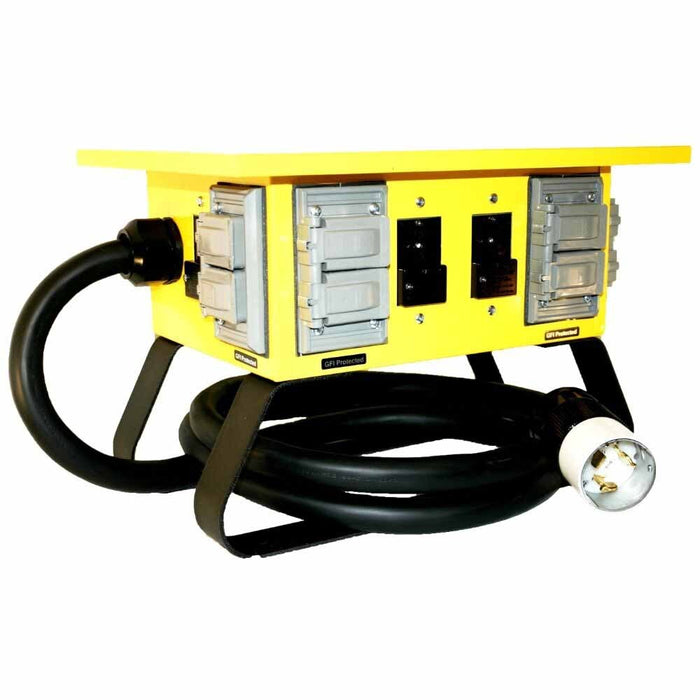

Southwire 6508UGSX 50A 125/250V UG Temporary Power Distribution w/ Sled Base

Southwire 6508UGSX 50A 125/250V UG Temporary Power Distribution w/ Sled Base

Availability:
in stock, ready to be shipped
Sale Sale
$853.89
$853.89 - $853.89
$853.89
$531.09
$531.09 - $531.09
$531.09

Product Description

CEP 6508UGSX Includes

  • (1) Power Distribution Box

CEP 6508UGSX Features

  • 14 Ga. Steel endures for years of use
  • Heavy-duty, impact & flame-resistant enclosure
  • GFCI Protection includes open neutral, reverse phasing, & 240V shut-off with indicator light
  • Outdoor and Indoor-Rated Options allow application based choices without extra cost
  • GFCI meets UL 943 requirements with 4-6 milliamp trip level,
  • 20-Amp, 30-Amp, and 50-Amp 125/250V 3 Pole 4 Wire

CEP 6508UGSX Specifications

Amperage 50A
Voltage 125/250V
Outlet Type U-Ground
Outlet Description Classic 4 Outlet Duplex U-Ground
Power Input CS6365M 125/250V
Recepracles NEMA 5-20 GFCI Protected Duplex
GFI Yes
GFI Specs 4-6 Milliamp Trip Level,
Construction Powder Coated Steel
Rating 50A Type 3R Outdoor
Base Sled BaseCEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL 1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
