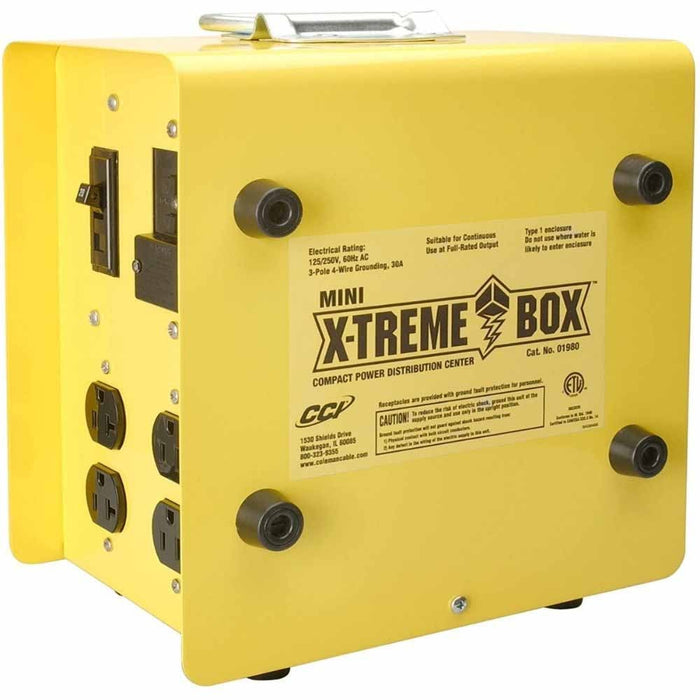

Southwire 6532UGM1 Mini X-Treme Box 30A UG Temporary Power Distribution, 8 Outlet Straight Blade

Southwire 6532UGM1 Mini X-Treme Box 30A UG Temporary Power Distribution, 8 Outlet Straight Blade

Availability:
Only 4 left!
Sale Sale
$429.81
$429.81 - $429.81
$429.81
$375.00
$375.00 - $375.00
$375.00
 More payment options

Product Description

CEP 6532UGM1 Description

The Mini X-Treme Box™ provides more impact and less costly work-site power distribution than our popular full size models. Used along with our restoration adapters, these units are ideal for disaster restoration work where the only available power is from range outlets, dryer outlets or portable generators. Or, they can be used in any situation where a more compact, easier-to-handle unit is desired to safely expand and distribute power on jobsites.

CEP 6532UGM1 Includes

  • (1) Power Distribution Box

CEP 6532UGM1 Features

  • OSHA and NEC Compliant, UL Listed, and Certified to CAN/CSA
  • Ready to use out of the box
  • 8 overload, circuit-breaker protected 20 amp straight blade outlets
  • All outlets are GFCI protected with open neutral and over-voltage protection
  • Compact size for ease of use
  • May be used in vertical or horizontal positions

CEP 6532UGM1 Specifications

Maximum Amperage 30A
Voltage 125/250V
Outlet Type U-Ground
Output Configuration 5-20 U-Ground
Power Connector 30 Amp 125/250V 3P 4W NEMA L14-30P
Power Specification 125/250V 30 Amp 3P 4W
Feed-Thru Connector 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers
Outputs 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers
Rating 30A Type 1 Indoor
Base Mini with Feet
GFI Specs 4-6 Milliamp Trip Level,
