Greenlee CS-5000 Circuit Seeker

Greenlee CS-5000 Circuit Seeker

Availability:
Only 4 left!
$761.04 - $761.04
$761.04
$761.04 - $761.04
$761.04

Product Description

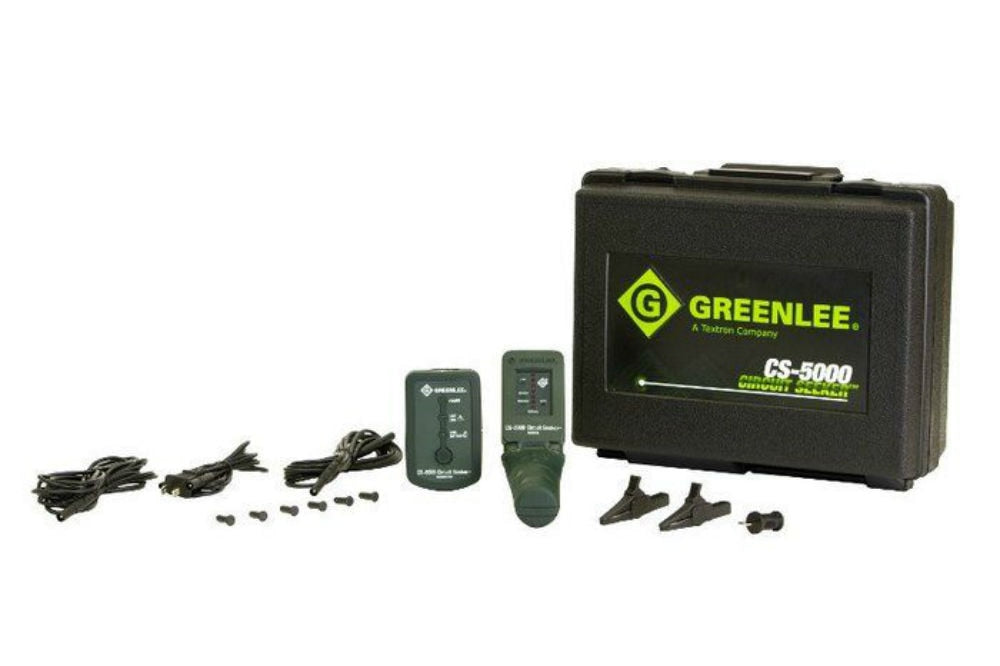

Greenlee CS-5000 Includes

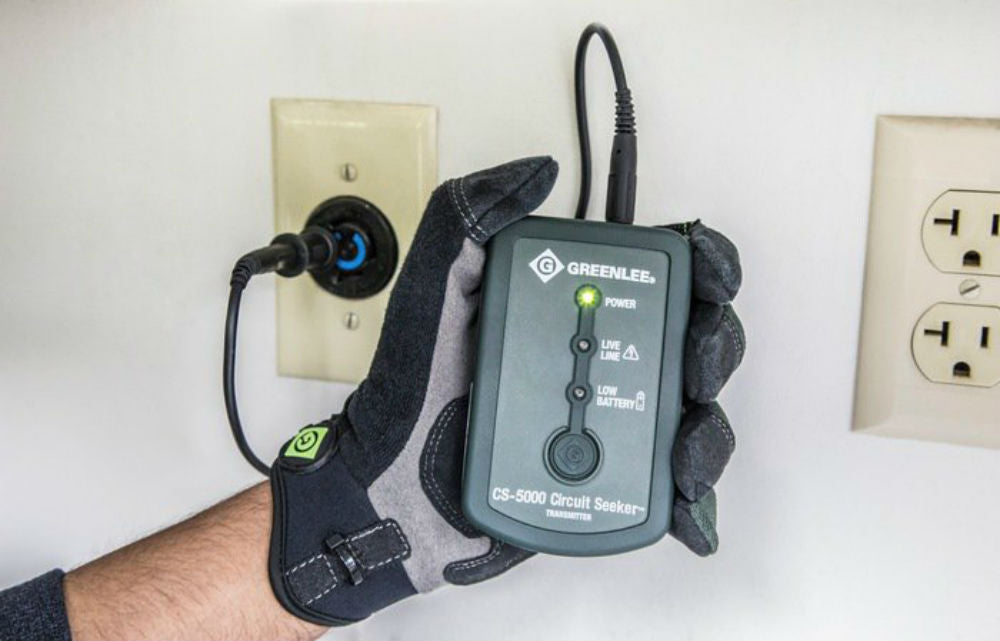

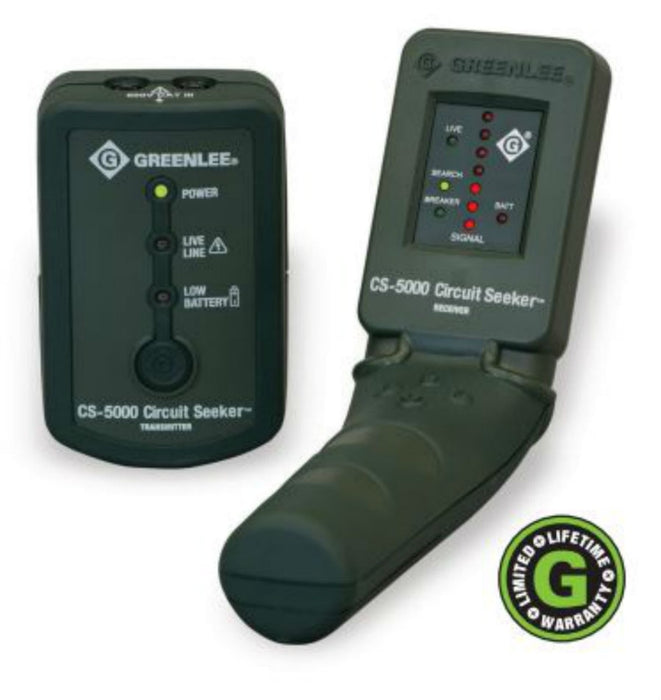

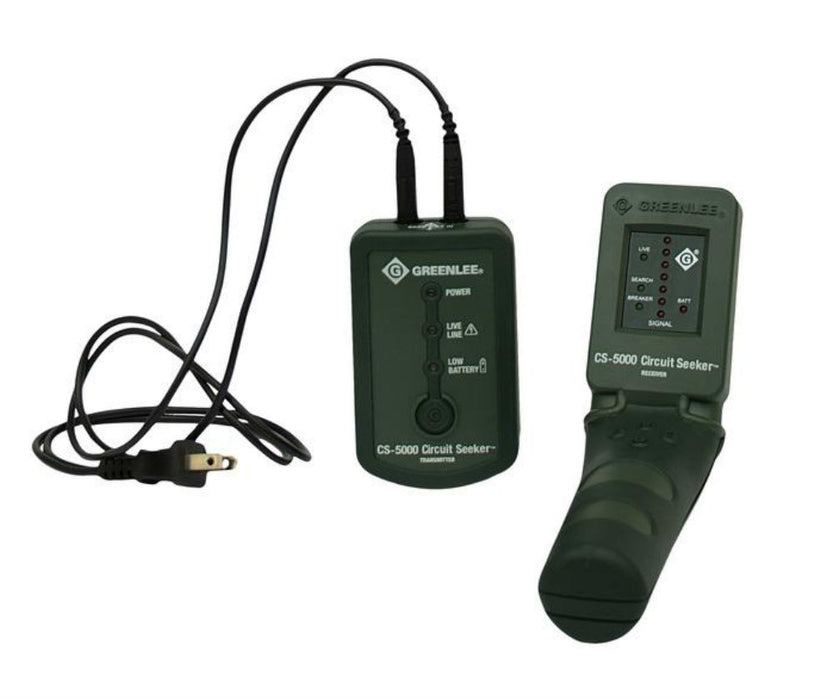

  • (1) Transmitter

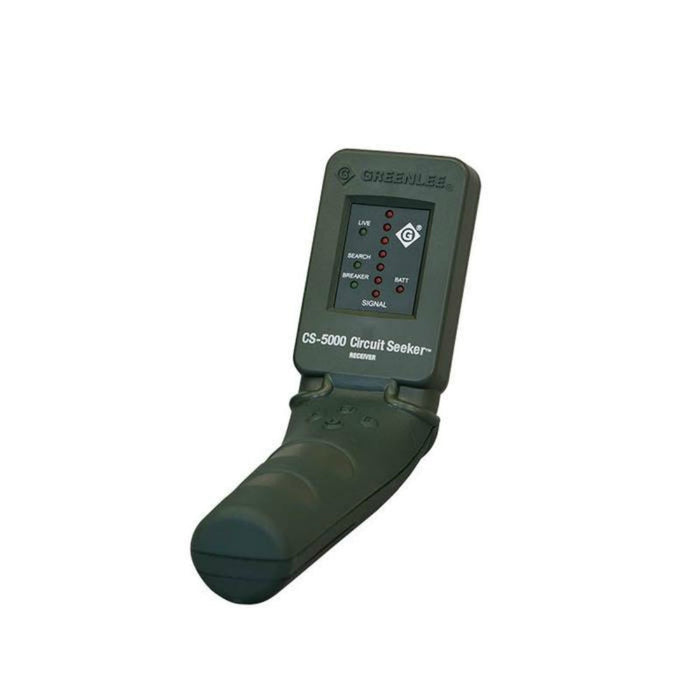

  • (1) Receiver
  • (2) Alligator Clips
  • (1) AC Blade
  • (1) AC Plug Adapter
  • (2) Extension Leads
  • (1) Carrying Case

Greenlee CS-5000 Features

  • Superior sensitivity and functionality providing accurate tracing and locating
  • Auto Gain Option – Automatically seeks the strongest signal identifying the target breaker, improving locating accuracy
  • Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing
  • Rated for 600VAC/DC
  • Works on de-energized circuits, no need to have to have the power on
  • Works on live circuits without disrupting service
  • Front facing LED linear array receiver display promotes good working posture reducing hand strain
  • Handle design creates comfortable, easy grasp to reduce hand fatigue
  • Dual Notification: Visual (bright LEDs) and distinctive audio tone, assist the operator in challenging work environments

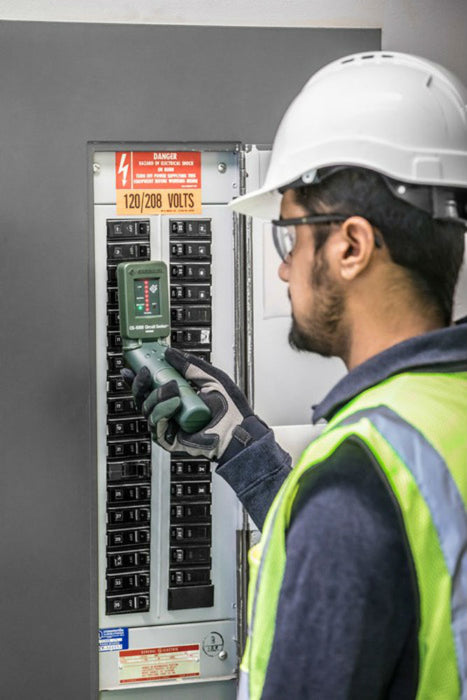

  • Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits

Greenlee CS-5000 Specifications

Voltage Rating 600V AC/DC
Tracing Range Open Line Mode Up to 3 m (10 ft) with a metallic connection to ground; 0.3 to 0.9 m (1 to 3 ft) with a capacitive ground reference
Tracing Range Live Line Mode Up to 6 m (20 ft) from circuit
Auto Power Off Intervals (Transmitter) 4 Hours
Auto Power Off Intervals (Receiver) 30 minutes without signal
Operating Conditions (32 ºF to 122 ºF)Battery Type
