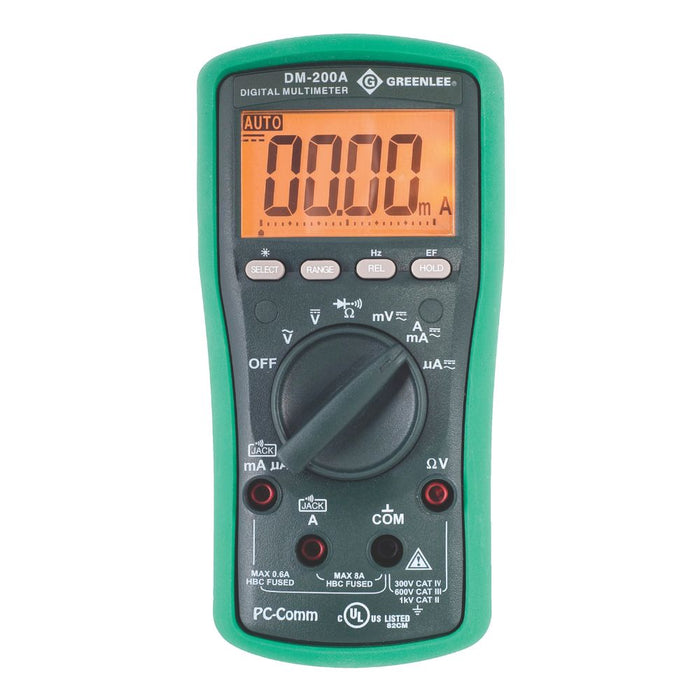

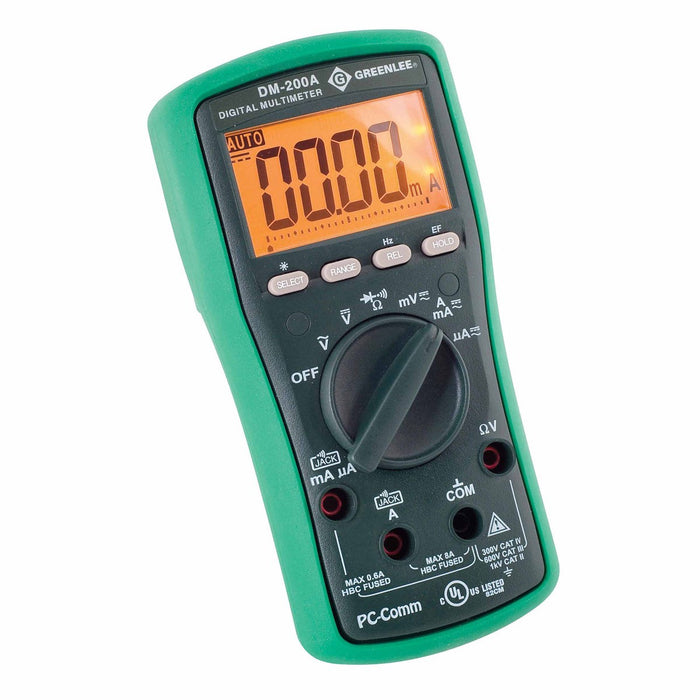

Greenlee DM-200A 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A)

Greenlee DM-200A 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A)

Availability:
Only 1 left!

$111.17 - $111.17
$111.17
$116.64
$116.64 - $116.64
$116.64

Product Description

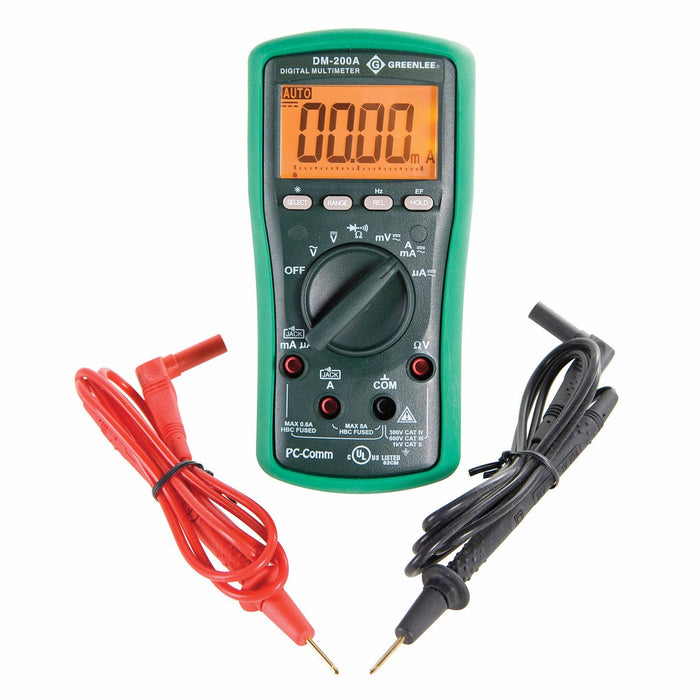

Greenlee DM-200A Includes

  • (1) Multimeter
  • (2) 1.5V AAA Batteries
  • (1) Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max)
  • (1) Test leads
  • (1) ProtectiveBoot

Greenlee DM-200A Features

  • Measures voltage, current, resistance and frequency
  • Tests continuity and diodes
  • Backlit LCD with 6,000 count display
  • Two voltage detection modes - non-contact or using a single test lead
  • BeepJack warns when test leads are incorrectly inserted in current measurement terminals
  • Automatic and manual range selection
  • Relative offset mode to see changes in measurements
  • Data hold
  • Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
  • Lifetime Limited Warranty

Greenlee DM-200A Specifications

Amperage Measurement 600, 6000?A; 60, 600mA; 6, 8A
Battery (2) 1.5 V AAA
Capacitance 60, 600 nF; 6, 60, 600, 3000?F
Display Backlit LCD with 6,000 Count
Frequency Measurement 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Measurement Category CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Replacement Part TSG-3 Sure-Grip Test Leads
Resistance Measurement 600 ?; 6, 60, 600 k?; 6, 60 M?
Standard CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Sub Brand ESM
Temperature Rating K Type, -58 to 1832°F (-50 To 1000°C)
Type Digital
Voltage Measurement 60, 600 mV; 6, 60, 600, 1000V
