Product Description
Bosch GRL4000-90CHVGK Description
The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. Its green-beam laser is up to 4X brighter than standard red beams. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.

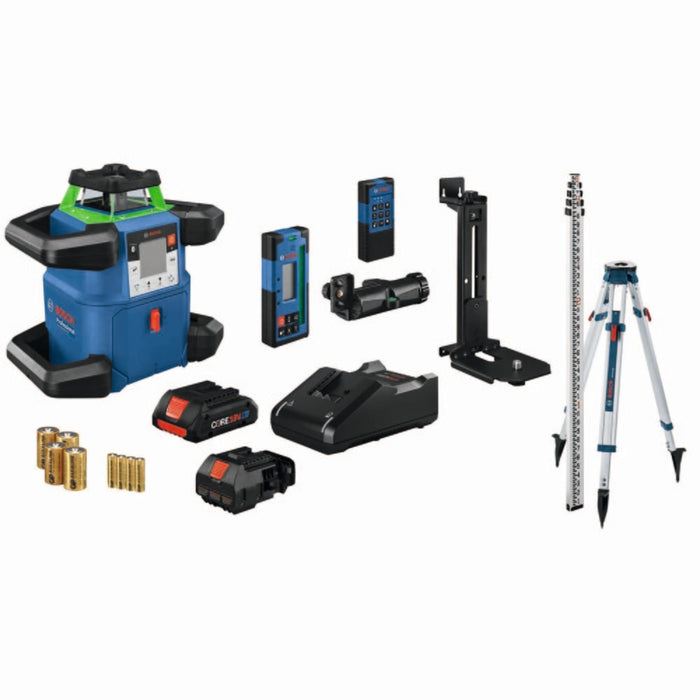

Bosch GRL4000-90CHVGK Includes
- (1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
- (1) LR40G Laser Receiver with Bracket
- (1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
- (1) 18V Battery Charger
- (1) BA1 Alkaline Battery Adapter
- (4) D Batteries
- (4) AA Batteries
- (1) BT170 Heavy-Duty Aluminum Tripod
- (1) GR13 13 Ft. Grade Rod

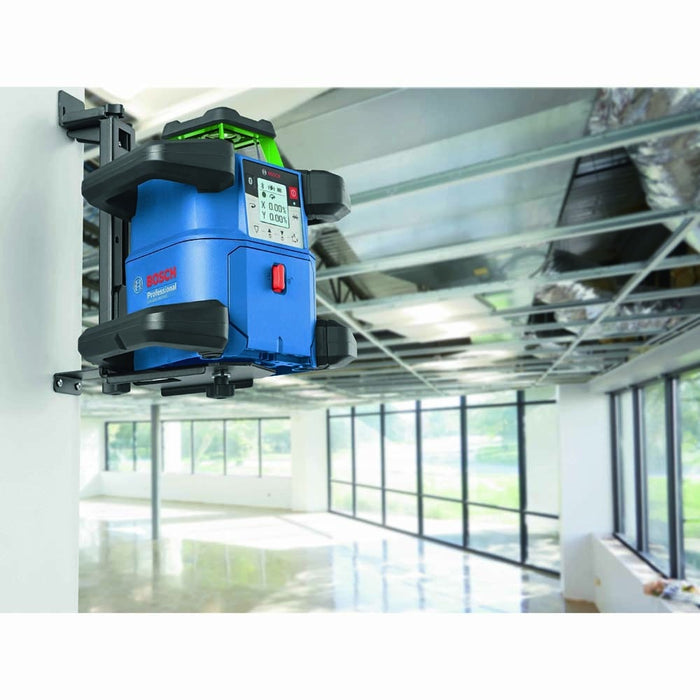

- (1) WM6 Wall Mount
- (1) RC5 Remote Control

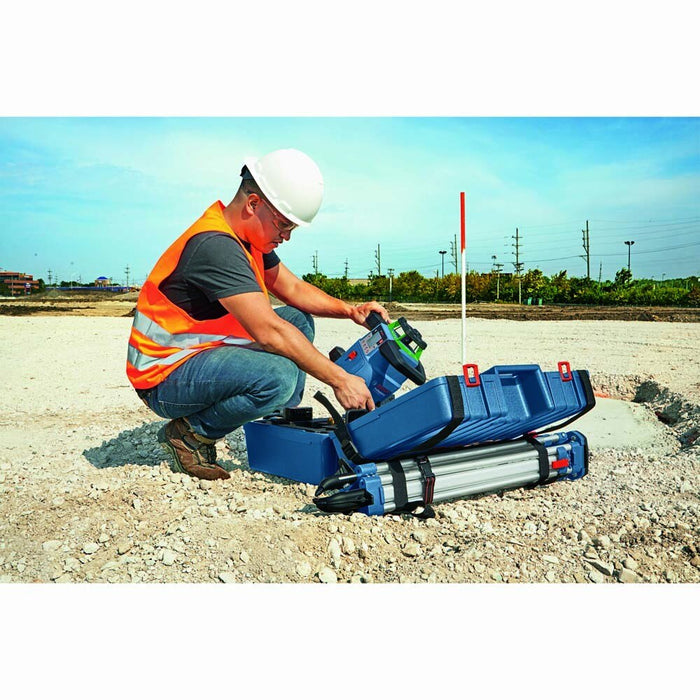

- (1) Carrying Case

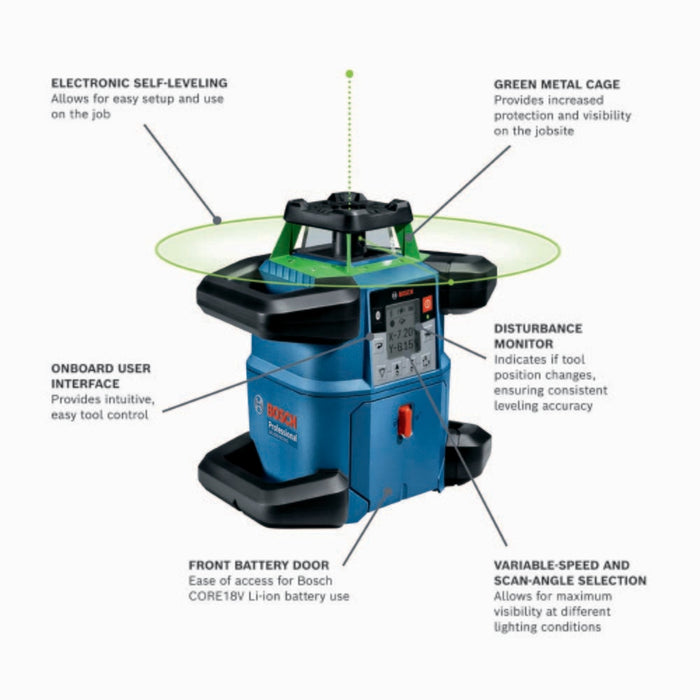

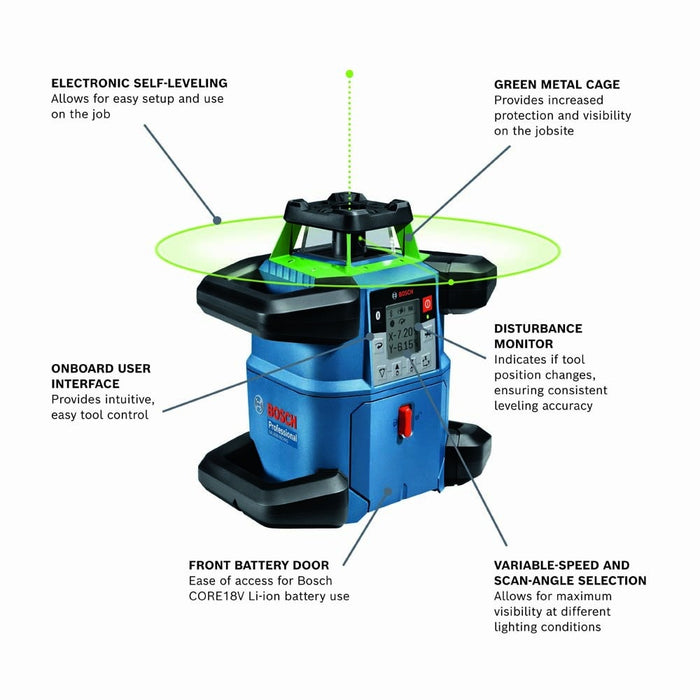

Bosch GRL4000-90CHVGK Features
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes

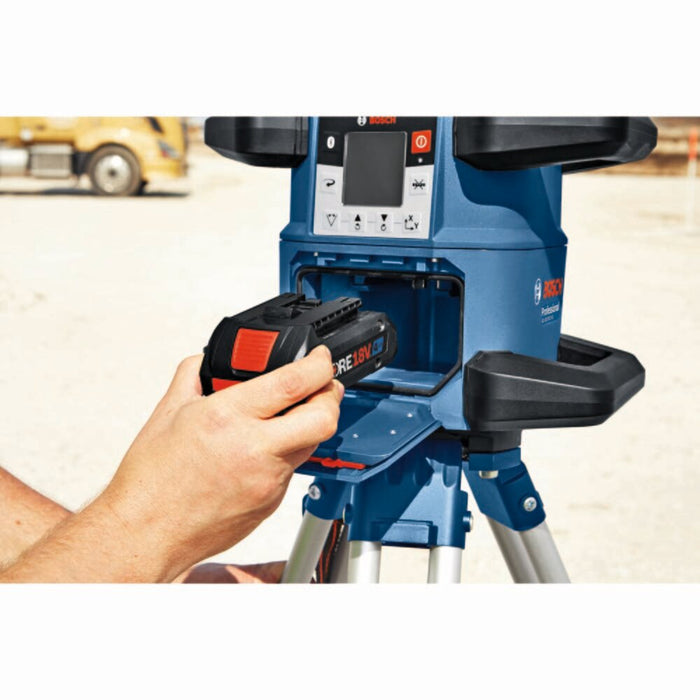

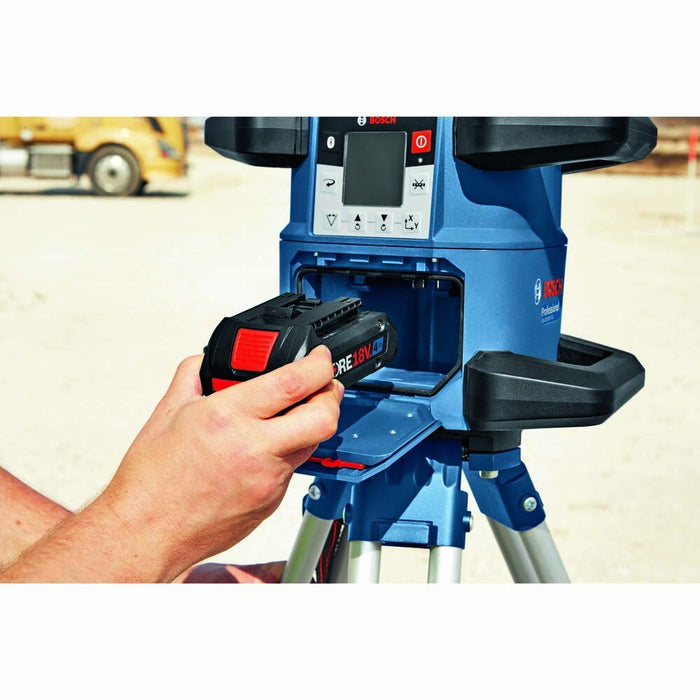

- Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries

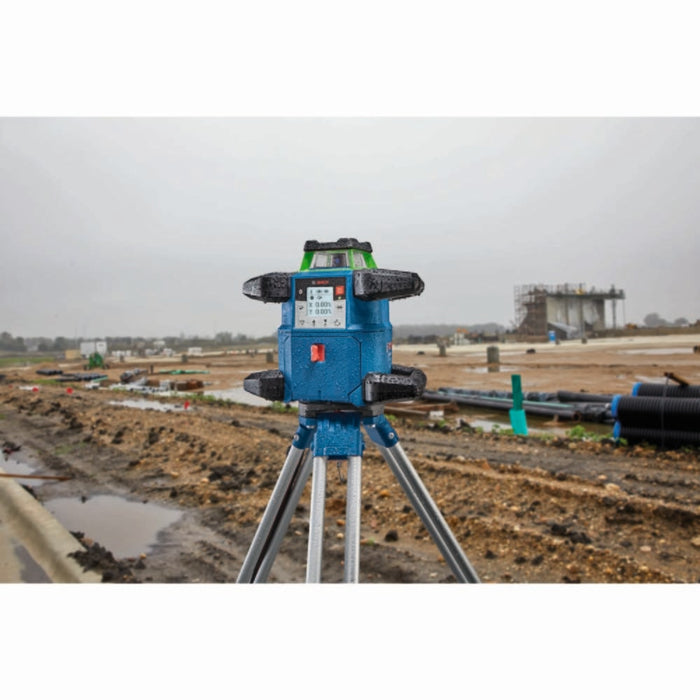

- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards

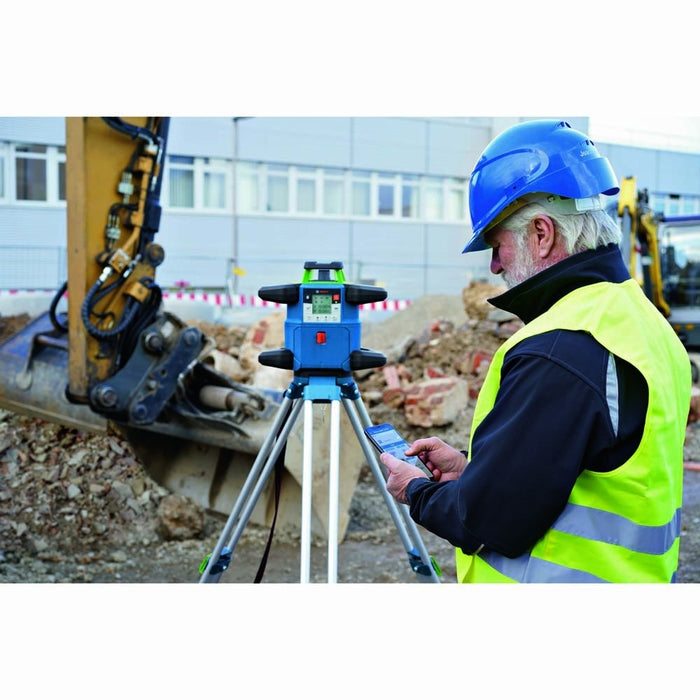

- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more

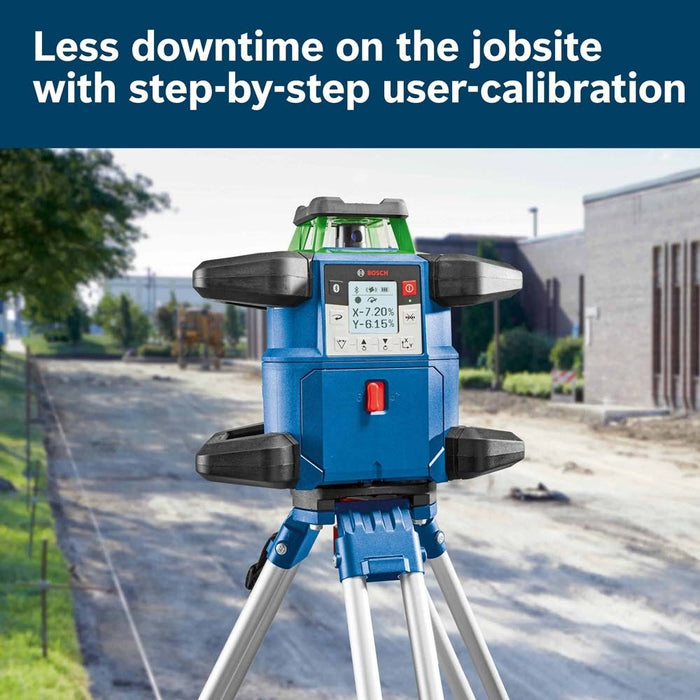

- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode

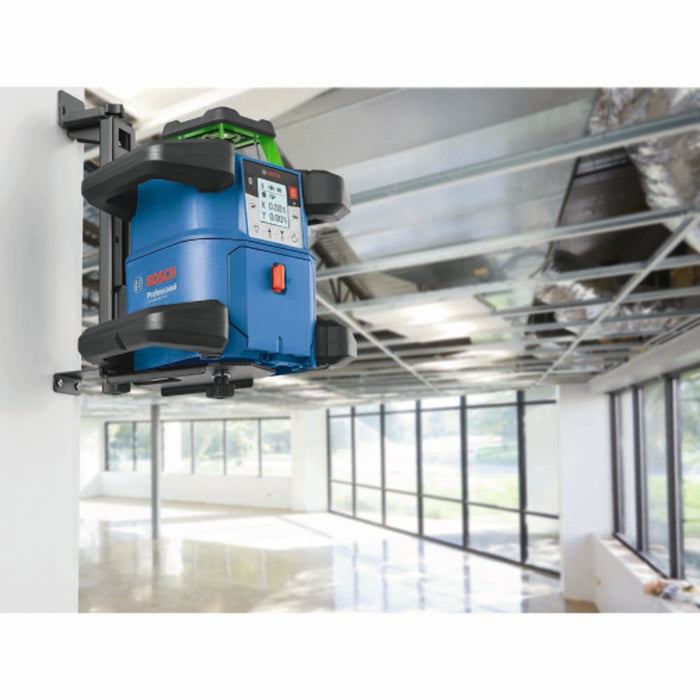

- Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications

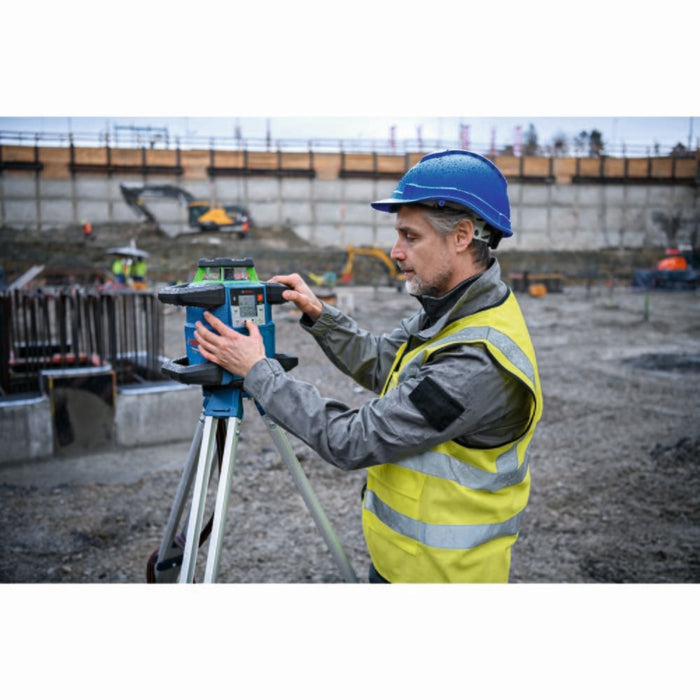

- Electronic self-leveling – allows for easy setup and use on the job
Bosch GRL4000-90CHVGK Specifications
Laser Beam Color | Green |
Laser Diode | Class 2, 500-540 nm |
Leveling Type | Self-Leveling, Up to 5° |
Material | Plastic Composite |
Mount Threading | 5/8-11 |
Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
Range | Up to 4000' |
Battery | Lithium-Ion Battery |
IP Rating | IP 68 |
