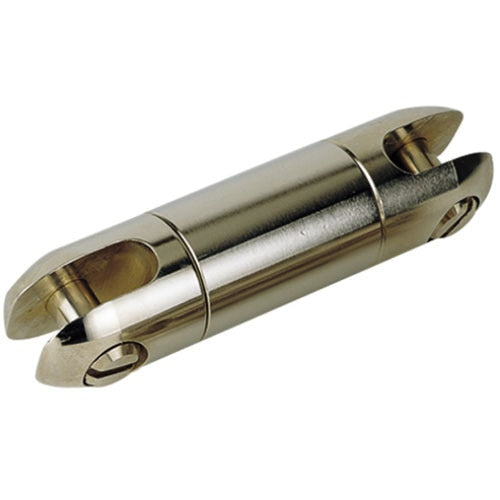

Condux 08080912 1-1/4" x 5000 lbs Working Load 808 Champion Swivel

Product Description

INCLUDES:
• (1) 1-1/4" x 5000 lbs Working Load 808 Champion Swivel

SPECIFICATIONS:
• Part Number: 08080912
• Underground - Working Load: 5,000 lbs (22,241 N)
• Aerial - Working Load: 3,000 lbs (13,344 N)

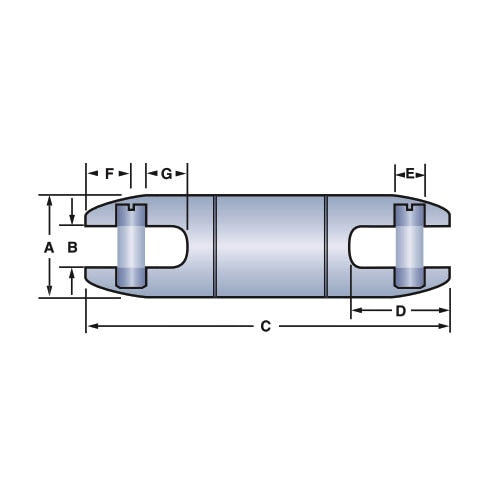

• Dimension (A): 1-1/4 in. (32 mm)
• Dimension (B): .56 in. (14 mm)
• Dimension (C): 5.44 in. (138 mm)
• Dimension (D): 1.34 in. (34 mm)
• Dimension (E): .37 in. (9 mm)
• Dimension (F): .59 in. (15 mm)
• Dimension (G): .565 in. (14 mm)
• Replacement Part Number, Slotted Pin: 08081046

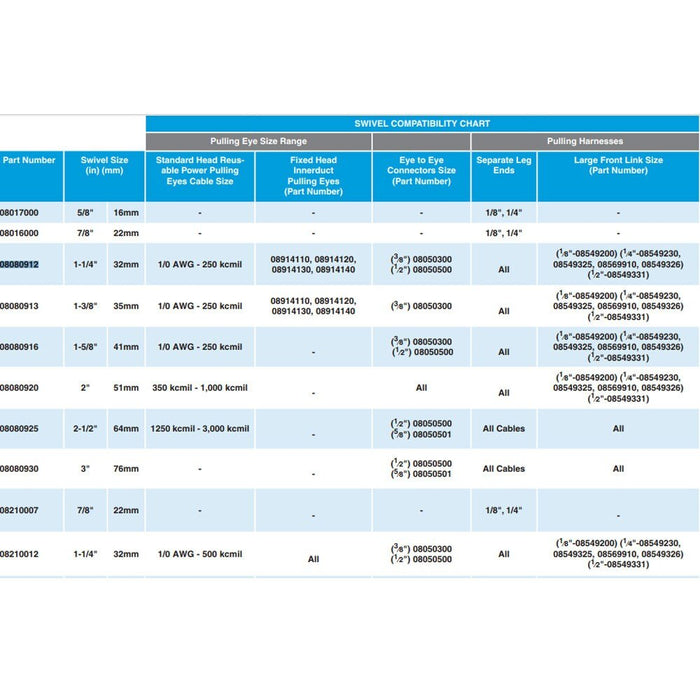

Designed specifically for underground and overhead cable pulling applications. Can handle all types of utility cables. Precision machined from high-strength stainless steel. Clevis pin is easily replaceable. CAUTION: 808 Champion Swivels are to be used for cable stringing or pulling only. 808 Champion Swivels are not to be used for directional drilling. NOTE: Swivels are not designed to run around bullwheels. Always verify that the swivel size is sized to the pulling harness or grip prior to ordering. Not Designed for Directional Drilling.
