Condux 08917175 1000 kcmil Orange Swivel Head Power Pulling Eye
Availability:
Only 3 left!
Original price
$537.56
-
Original price
$537.56
Original price
$537.56
$537.56
$537.56
-
$537.56
Current price
$537.56
INCLUDES:
• (1) 1000 kcmil Orange Swivel Head Power Pulling Eye
• (1) Sleeve Nut
• (1) Plug
FEATURES:
• Reusable
• Will fit all Condux pulling harnesses
SPECIFICATIONS:
• Part Number: 08917175
• Cable Size: 1000 kcmil
• Color: Orange

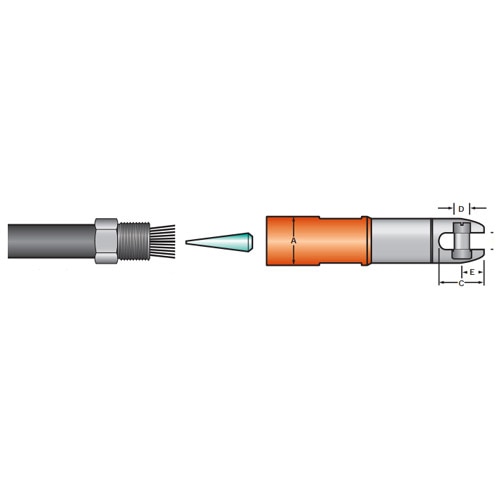

• Max Conductor Diameter: 1.152 in. (29 mm)
• Max Eye OD (A): 2.06 in. (52 mm)
• Slot Width (B): 0.75 in. (19 mm)
• Slot Depth (C): 1.78 in. (45 mm)
• Pin Diameter (D): 0.63 in. (16 mm)
• Pin Center (E): 0.72 in. (18 mm)
• Replacement Plug: 08917123
• Load Rating: 15,000 lbs (6,804 kg)

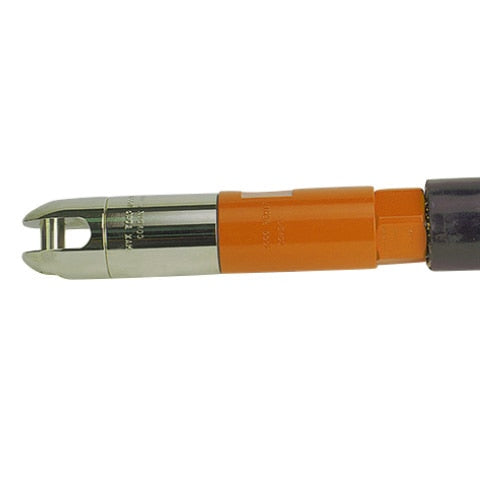

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
