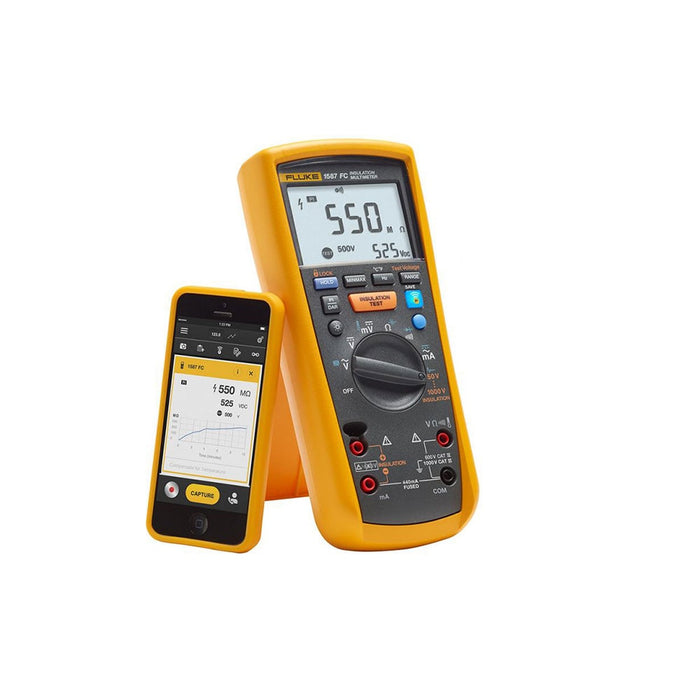

Fluke 4691215 1587 FC Wireless Insulation Multimeter

Availability:
Only 1 left!

Original price $1,038.99 - Original price $1,038.99
Original price $1,038.99
$1,038.99
$1,038.99 - $1,038.99
Current price $1,038.99

Product Description

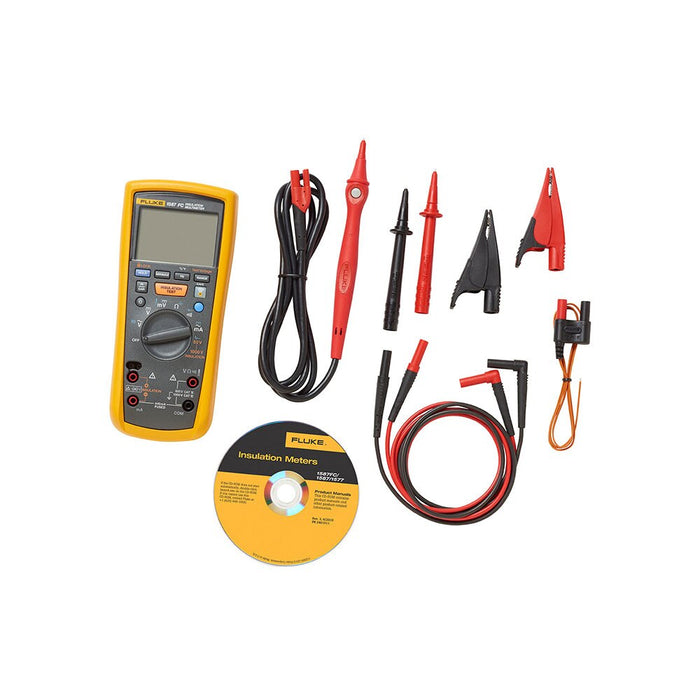

INCLUDES:
• Remote probe
• Test leads
• Alligator clips
• K-type thermocouple
• Hard case
• User documentation

FEATURES:
• PI/DAR measurements with TrendIt™ graphs
• Memory storage through Fluke Connect Measurements app
• Temperature Compensation through Fluke Connect Measurements app
• VFD low-pass filter for accurate motor drive measurements
• Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation test: 0.01 M? to 2.0 G?
• Auto-discharge of capacitive voltage
• Insulation test smoothing reading
• Frequency / Capacitance / Diode test / Temperature
• Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
• Resistance (0.1 ? to 50 M?) / Continuity / Auto power off
• Resistance (0.1 ? to 50 M?) / Continuity / Auto power off
• Three-year warranty / Remote probe, test leads, alligator clips, K-type thermocouple, hard case

SPECIFICATIONS:
• Maximum voltage applied to any terminal and common: 1000 V
• Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
• Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
• Relative humidity Noncondensing:0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F), 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F), 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
• Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
• Radio frequency communication: 2.4 GHz ISM Band
• Radio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE
• International: IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
• Batteries: Four AA batteries (NEDA 15A or IEC LR6)
• Size (H x W x L): 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
• Weight 550 g (1.2 lb)
• Altitude: Operating 2000 m, Storage 12,000 m
• Over-range capability: 110% of range except for capacitance which is 100%
• Frequency overload protection: <107 V Hz
• Fuse protection for mA input: 0.44A, 1000 V, IR 10 kA


Fluke 1587 insulation multimeters provide maximum versatility for troubleshooting & preventative maintenance.
