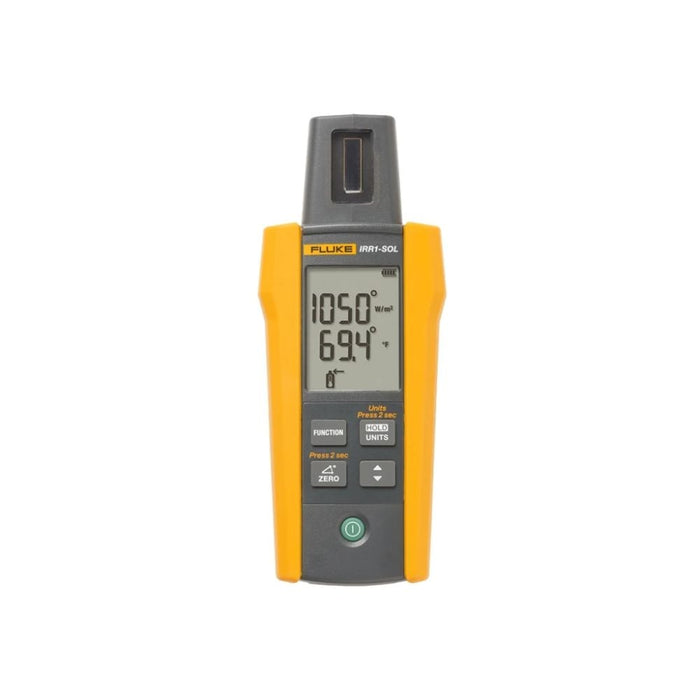

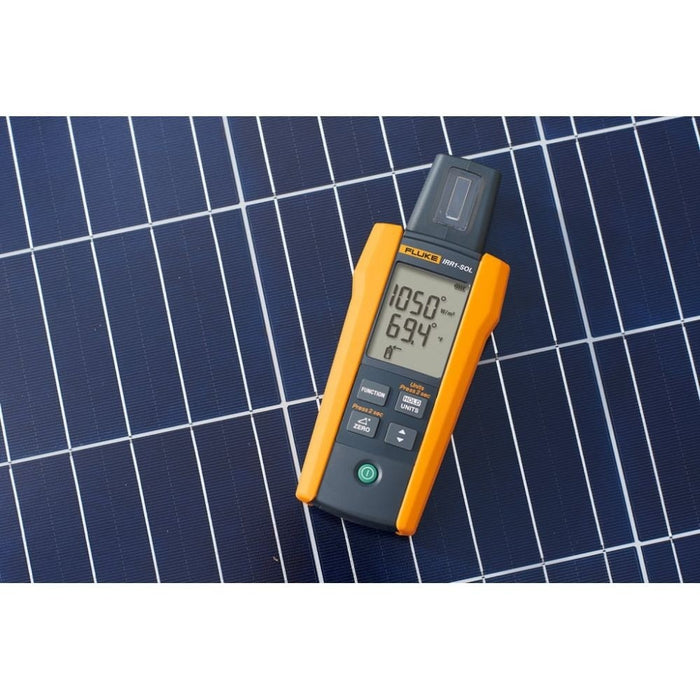

Fluke 5218288 FLK-IRR1-SOL - Solar Irrandiance Meter w/ Temp Probe, Carry Case

Product Description

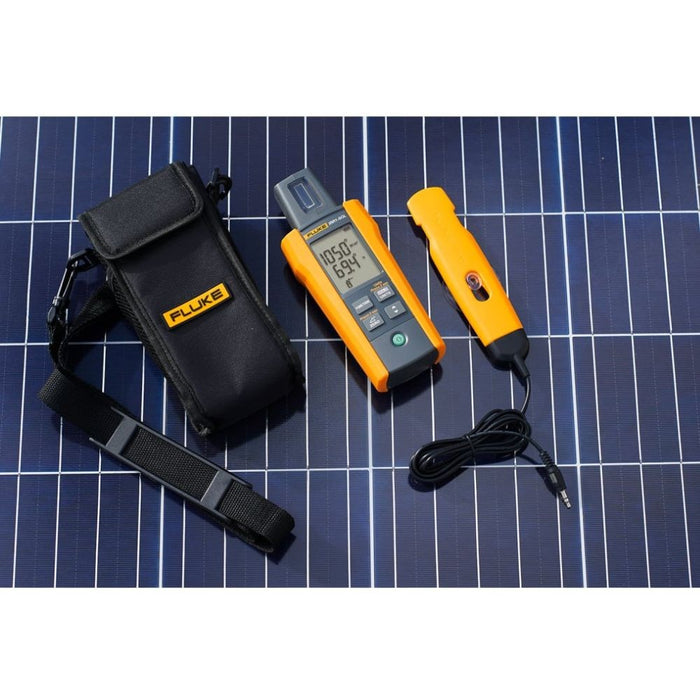

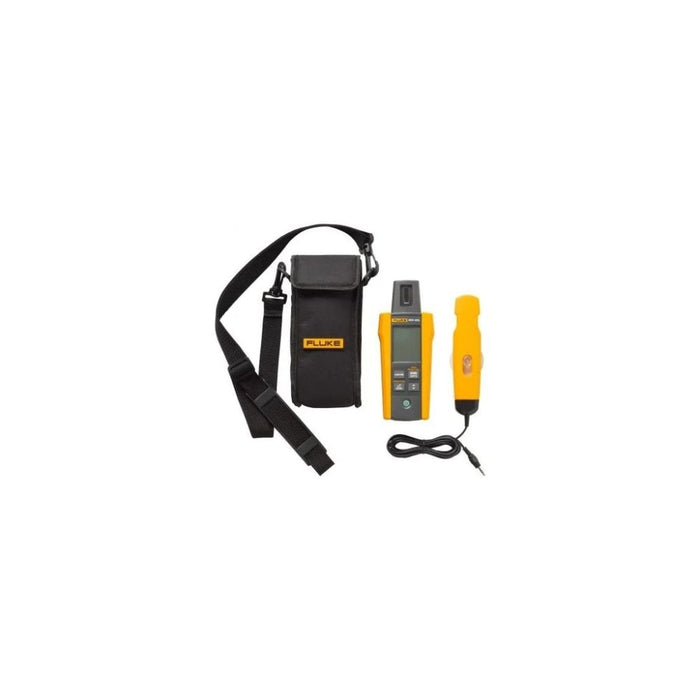

INCLUDES:
• (1) Solar Irradiance Meter

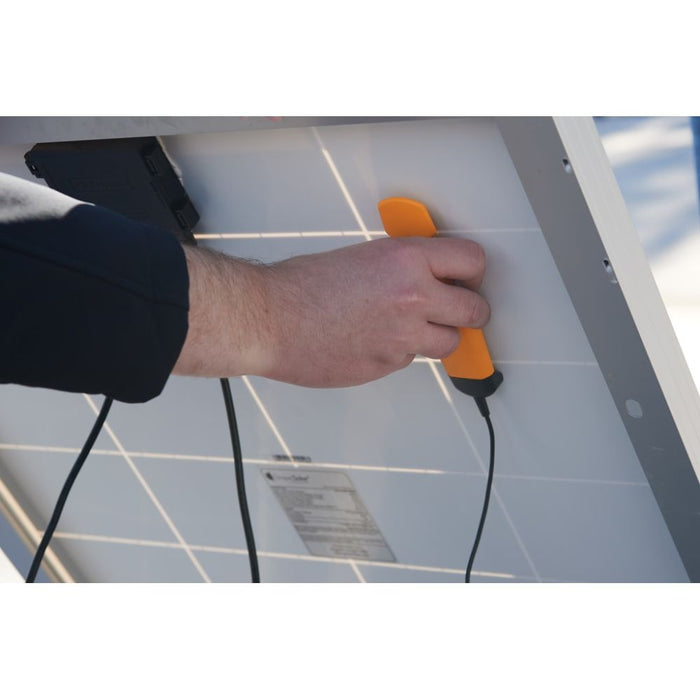

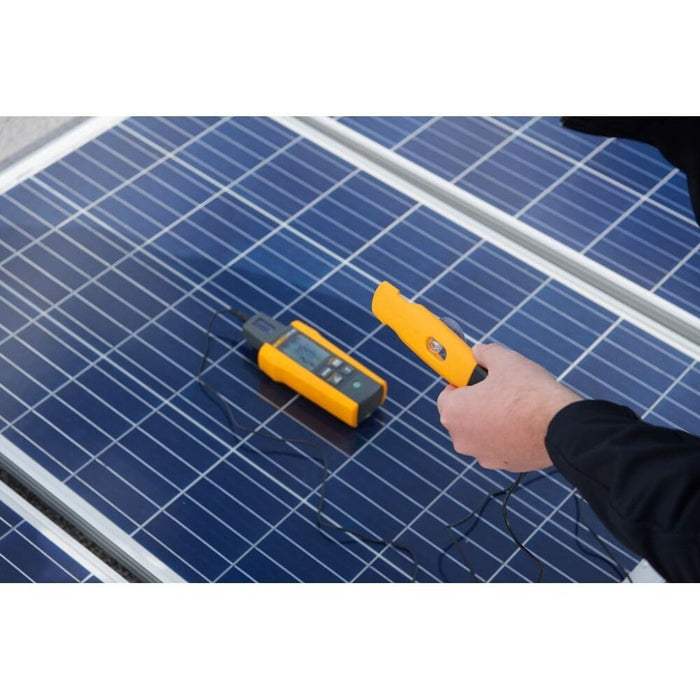

• (1) External Temperature Probe with Suction Cup
• (1) Carrying Case with Sholder Strap
• (4) AA Batteries
• (1) User Manual

FEATURES:

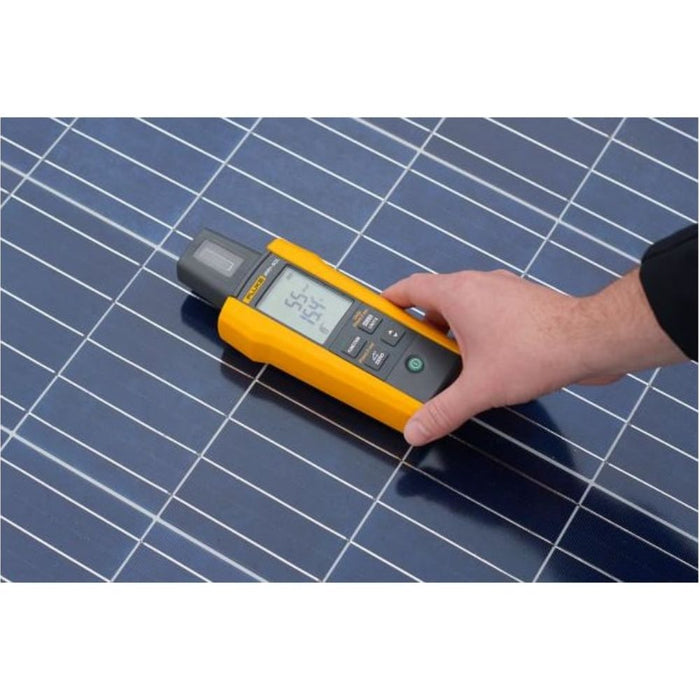

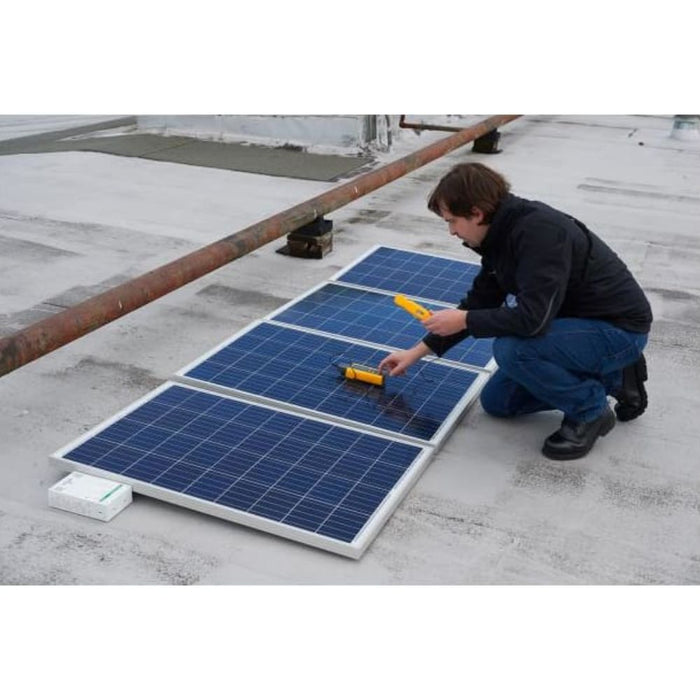

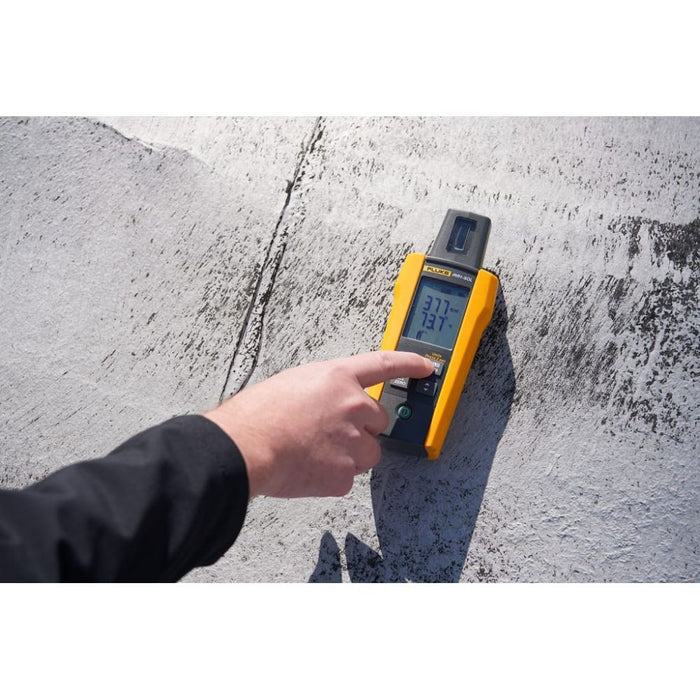

• Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
• Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard

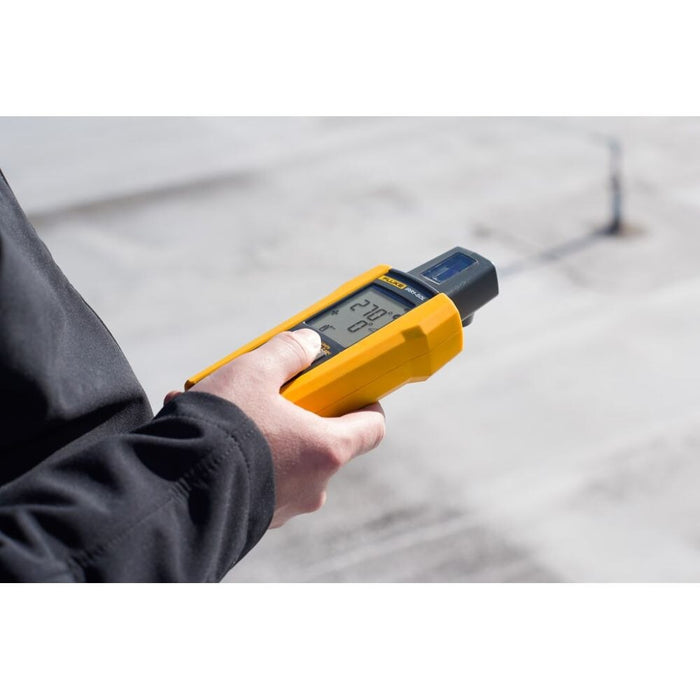

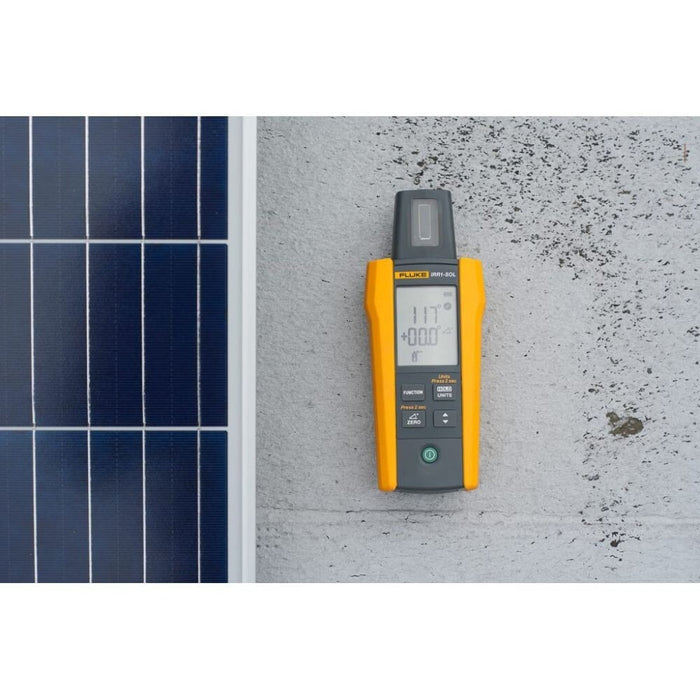

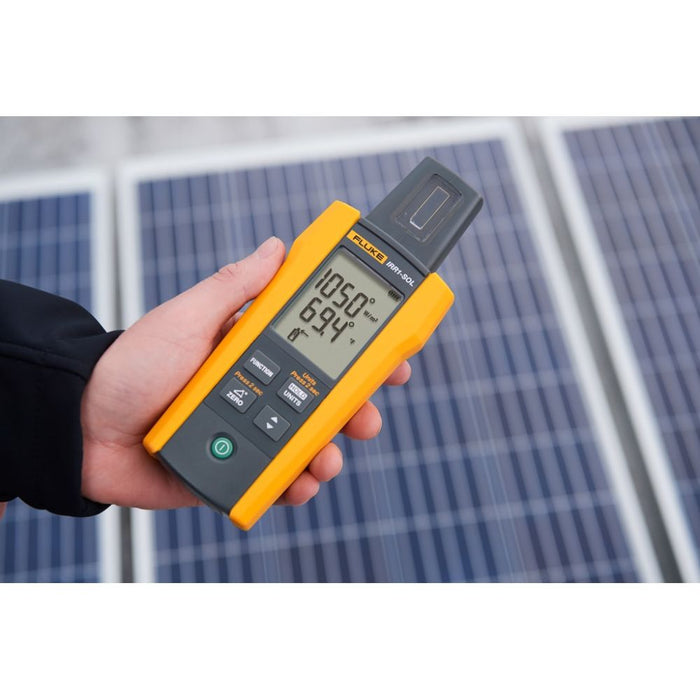

• High contrast LCD with large numbers for easy readability in direct sunlight
• Includes convenient carry case with shoulder strap

SPECIFICATIONS:
• Irradiance Measuring Range: 0 to 1400 W/m²
• Resolution: 1 W/m²
• Measuring Accuracy: ± (5 % + 5 Digit)
• Temperature Measuring Range (°C): -22 °F to 212 °F (-30 °C to 100 °C)
• Resolution: 0.2 °F (0.1 °C) / 1 °F @>100 °F
• Measuring Accuracy: ±2 °F (±1 °C) @ 14 °F to 167 °F (-10 °C to 75 °C); ±4 °F (±2 °C) @ -22 °F to 14 °F (-30 °C to -10 °C); and 167 °F to 212 °F (75 °C to 100 °C)

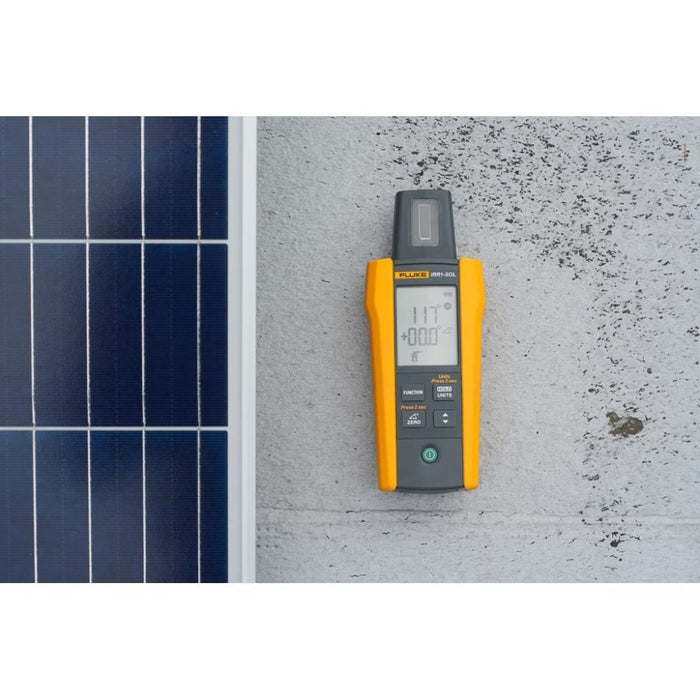

• Inclination Angle Measuring Range: -90° to +90°
• Resolution: 0.1°
• Measuring Accuracy: ± 1.5°@ -50° to +50°, ±2.5° @ -85° to -50° and +50° to +85°; ±3.5° @ -90° to -85° and +85° to +90°
• Compass Measuring Range: 0° to 360°
• Resolution: 1(more...)
