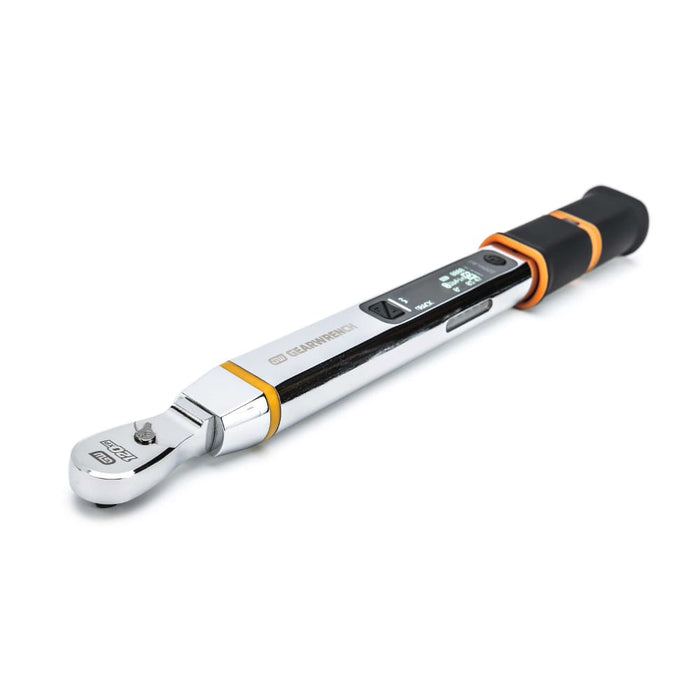

GearWrench 85235-01 1/4" 120XP E-Spec Electronic Torque Wrench 5-25Nm - Wrench Only

Availability:
Only 2 left!
Sale Sale
Original price $1,077.29
Original price $1,077.29 - Original price $1,077.29
Original price $1,077.29
Current price $558.34
$558.34 - $558.34
Current price $558.34

Product Description

GearWrench 85235-01 Description

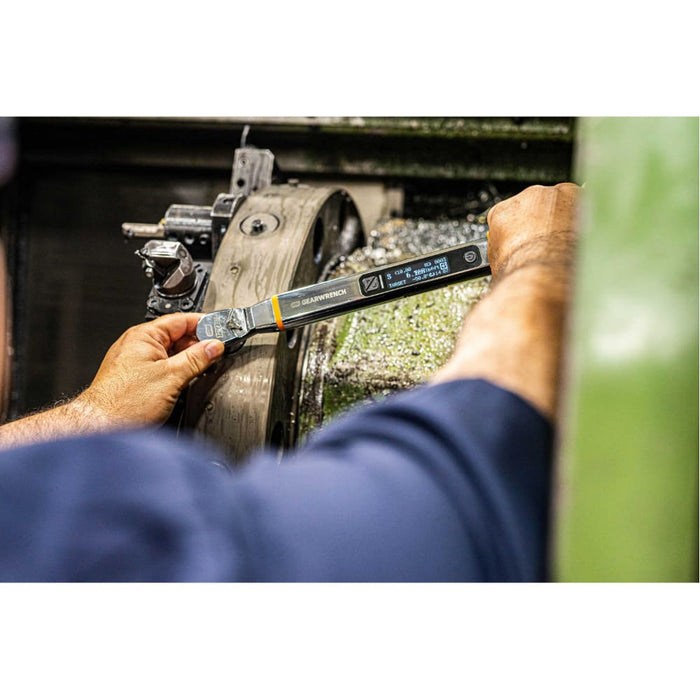

E-Spec is a connected electronic torque wrench designed specifically for production environments where a high level of precision is required. With+/- 1.5% torque accuracy and +/- 1% angle accuracy, E-Spec is a high-tech workhorse. E-Spec software allows users to set torque parameters and download torque process data via standard text format and all E-Spec wrenches incorporate GEARWRENCH 120XP technology that can turn fasteners in just a 3° swing arc. E-Spec is the new standard for premium industrial torque applications.

GearWrench 85235-01 Features

  • Wrench only no accessories
  • 120XP head provides a 3° ratcheting arc to turn fasteners in narrow spaces
  • Low profile flex head design allow for better access in tight confines
  • Torque accuracy of +/-1.5% CW and +/-2.5% CCW angle settings offer +/-1% of reading of angle accuracy
  • 3 Torque measurement units provide a readout in ft-lb, in-lb and Nm

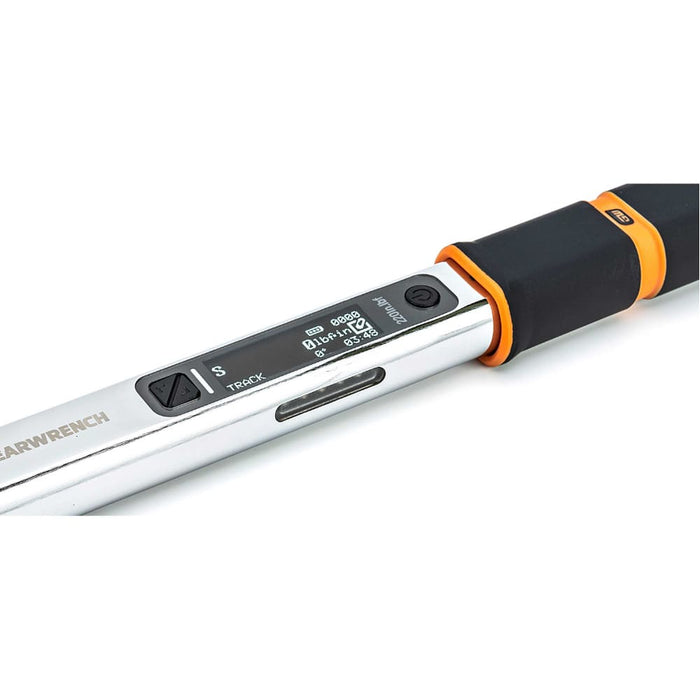

  • Simple 2 button menu with reversible screen for right or left handed use
  • 100 Available preset torque settings allow you to quickly access frequently repeated applications
  • 100,000 Life cycle accuracy
  • Meets or exceeds ASME standards and specifications
  • 1 Year limited warranty; calibration accuracy warrantied for 90 days

GearWrench 85235-01 Specifications

Alt Scale Increments 0.1 ft/lb
ASME Specification B107.300
Batteries Included No
Drive Tang Size 1/4 in
Drive Type Square
Finish Full Polish Chrome
Head Thickness 0.86 in
Head Width 1 in
Included Storage None
Material Alloy Steel
Max Torque (Alt Scale) 18 ft/lb
Max Torque (Primary Scale) 25 Nm
Min Torque (Alt Scale) 4 ft/lb
Min Torque (Primary Scale) 5 Nm
Primary Scale Increments 0.1 Nm
Repair Kit 81099P
Tether Ready No
Tooth Count 120
Torque Accuracy (20-100% of Full Range) +/- 1.5% Clockwise
Torque Range In. Lbs. 44 - 220 in/lb
