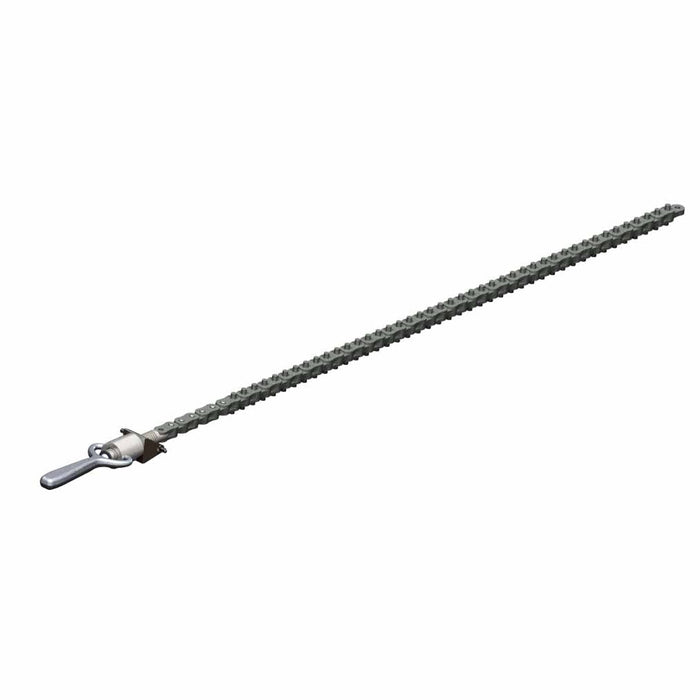

Greenlee 29631 Vise Chain Unit for 6001 Cable Puller

Greenlee 29631 Vise Chain Unit for 6001 Cable Puller

Availability:
Out of stock
Sold out
$408.45
$408.45 - $408.45
$408.45
$406.16
$406.16 - $406.16
$406.16

Product Description

Spec:
Pulling Force Maximum: 6,500 lbs. (28.9 kN)
Continuous: 4,500 lbs. (20 kN)
Dimensions Length: 20-3/4" (527 mm)
Width: 22-1/2" (572 mm)
Height: 12" (305 mm)
Weight 6001, 6001-22: 108 lbs. (49 kg)
6003: 454 lbs. (206 kg) 6000, 6000-22: 550 lbs. (250 kg)
6006, 6006-22: 612 lbs. (278 kg)
Pulling Speed - Feet (Meters) Per Minute
No Load: 16.5 (5) At 2000 lbs.: (8.8 kN) - 11 (3.4)
At 4000 lbs.: (17.9 kN) - 7.5 (2.3)
At 6000 lbs.: (26.7 kN) - 6 (1.8)
Power 1-1/2 HP (1.1 kW): 120 VAC 1-1/2 HP (1.1 kW): 220 VAC 50HZ
Rope - Average Breaking Strength or More 3/4" (19.1 mm)
Double-Braided Composite - Rated at 26,000 lbs. (115.6 kN)

Description:
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort. Unique floor mounting attachment for quick, reliable setup. Leaf type mounting chains won’t twist when tightening. Heat treated steel serrated gripper feet for secure mounting to conduit. Force Gauge included to constantly monitor the pull. Right angle sheave allows the operator to stand out of the direct line of force. Audio alarm high force warning and circuit breaker shut off at maximum force for added safety. Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan. Patented.
