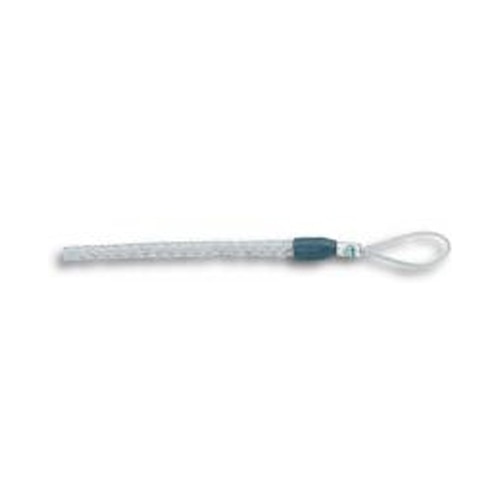

Greenlee 30506 Multiple Strength Basket-Type Pulling Grips with Rotating Forged Eye
• Cable Diameter Range: 3.00-3.49in. (76.2-88.8 mm);
• Maximum Rated Capacity: 9600 lbs. (42.7 kN);
• Color Code: Aluminum;
• Eye Length: 10in. (254 mm);
• Mesh Length: 54in. (1371.6 mm);
• Rotating Eye Diameter: 1-7/8in. (47.6 mm)
greenlee 30506 features:
• Use to pull overhead transmission lines, bare or insulate conductors and wire rope.
• Type of pulls: heavy-duty, long distance.
• Triple, to double, to single weave galvanized steel mesh with rotating forged eye.
• Color coded for easy size identification.
• Select the grip with a maximum rated capacity that meets or exceeds the cable puller maximum pulling force.
