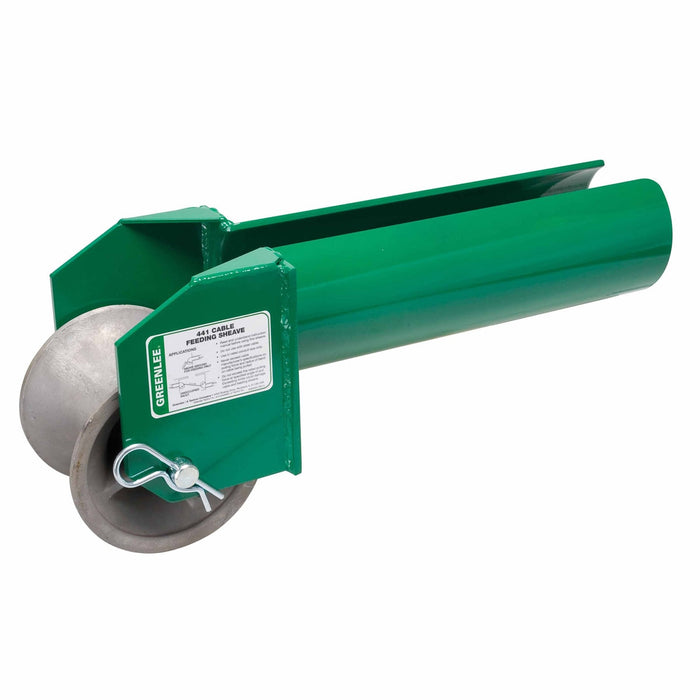

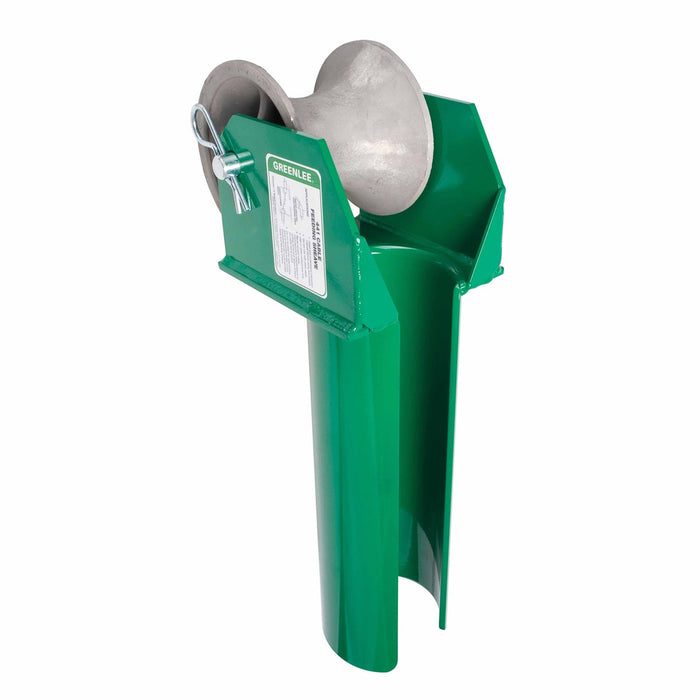

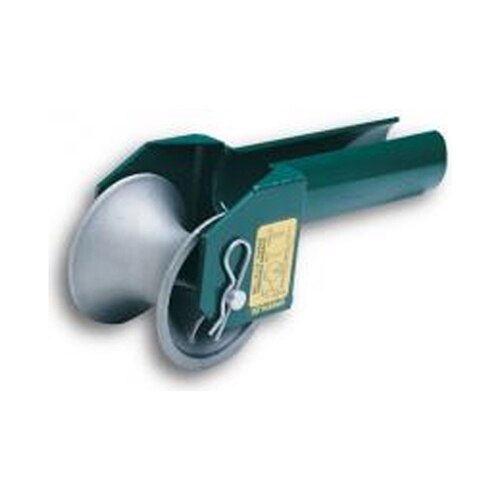

Greenlee 441-5 Feeding Sheave for 5" Conduit

Product Description

Greenlee 441-5 Specifications:
•Weight: 26 lbs. (11.8 kg)
•Capacity (Angle of Pull) -
•15 °: 6500 lbs. (28.9 kN)
•30°: 6500 lbs. (28.9 kN)
•45°: 6500 lbs. (28.9 kN)
•60°: 6000 lbs. (26.6 kN)
•75°: 5500 lbs. (24.4 kN)
•90°: 5250 lbs. (23.3 kN)

Greenlee 441-5 Features:
•Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
•5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
•Split tube for easy removal after cable is installed.
