Greenlee 6005 Specifications:
•Pulling Force Maximum: 6,500 lbs. (28.9 kN)
•Continuous: 4,500 lbs. (20 kN)
•Dimensions Length: 20-3/4" (527 mm)
•Width: 22-1/2" (572 mm)
•Height: 12" (305 mm)
•Pulling Speed - Feet (Meters) Per Minute
•No Load: 16.5 (5) At 2000 lbs.: (8.8 kN) - 11 (3.4) At 4000 lbs.: (17.9 kN) - 7.5 (2.3) At 6000 lbs.: (26.7 kN) - 6 (1.8)
•Power 1-1/2 HP (1.1 kW): 120 VAC 1-1/2 HP (1.1 kW): 220 VAC 50HZ

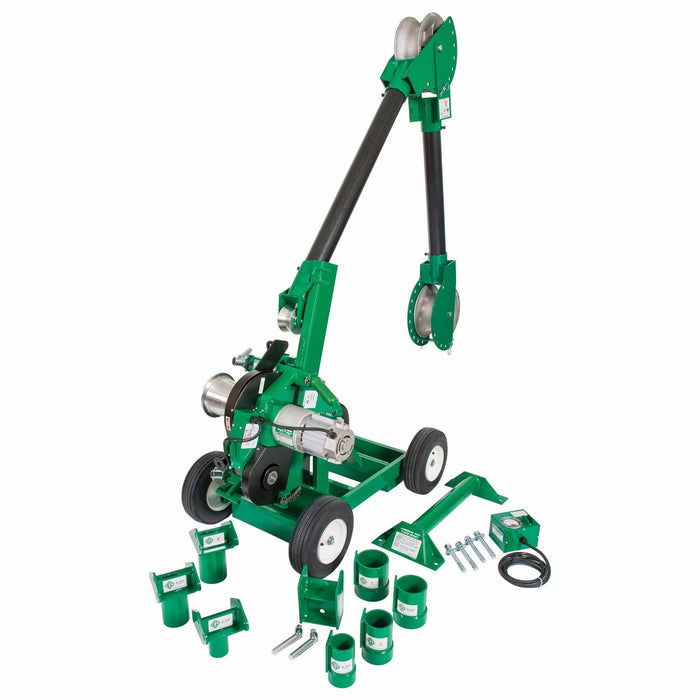

Greenlee 6005 Includes:
•6001 Super Tugger
•Floor Mount
•Mobile Carriage
•Boom Mount
•4' Boom Tube
•Nose Unit
•3' Boom Tube
•Elbow Unit
•Slip-In Couplings: 2-1/2", 3", 3-1/2", 4"
•Storage Trays
Greenlee 6005 Features:
•Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
•Unique floor mounting attachment for quick, reliable setup.
•Leaf type mounting chains won’t twist when tightening.
•Heat treated steel serrated gripper feet for secure mounting to conduit.
•Force Gauge included to constantly monitor the pull.
•Right angle sheave allows the operator to stand out of the direct line of force.
•Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
•Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
