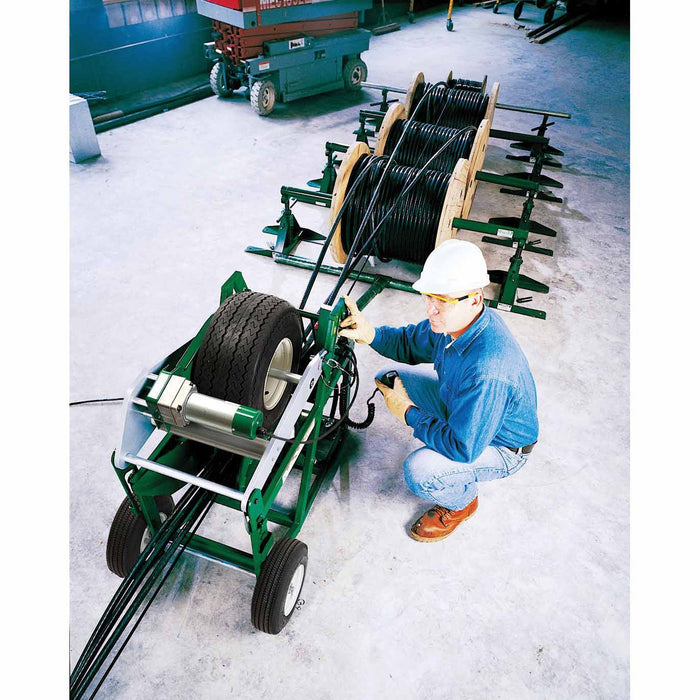

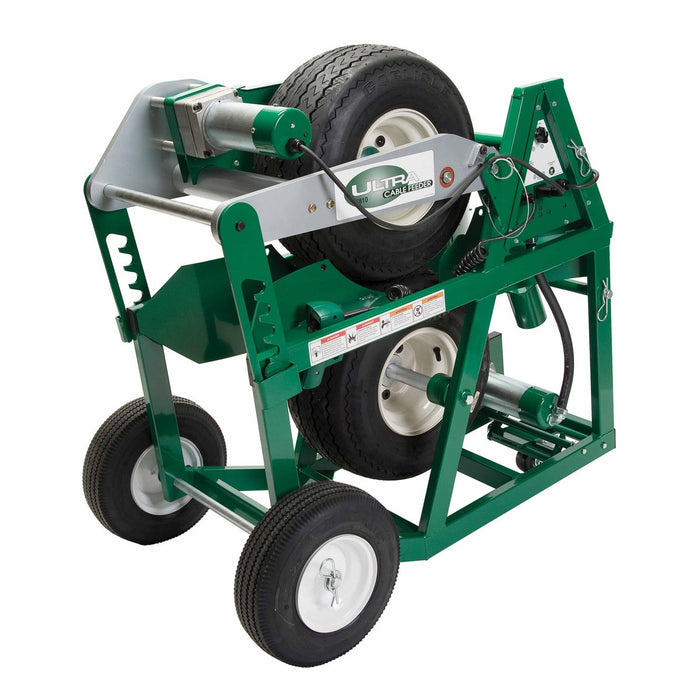

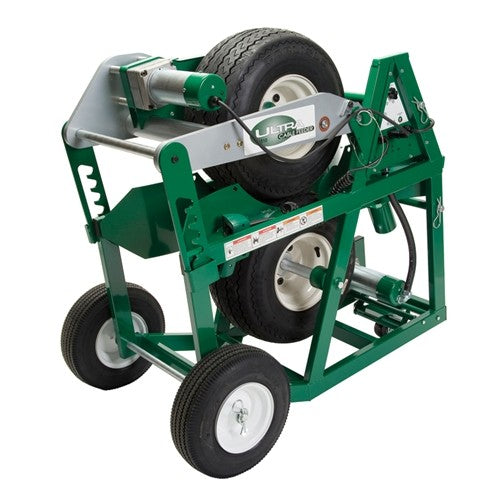

Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Ultra Cable Feeder with Hand Switch

Greenlee 6810 Ultra Cable Feeder with Hand Switch

Regular price $8,598.98 Sale price $6,438.98 Save $2,160.00
2 in stock
Greenlee 6810 Specifications:
• Power Supply: 115 VAC, 15 amps, 60 Hz
• Speed: 4-36 feet per minute (1.2-11 meters per minute)
• Maximum Tractive Force Single Cable: 200 lbs. (.9 kN)
• Maximum Tractive Force All Cables: 800 lbs. (3.5 kN)
• Cable Capacity:
• Quantity x Size
-- 8 x 250 MCM (120 mm2)
-- 6 x 500 MCM (240 mm2)
-- 5 x 750 MCM (300 mm2)

Greenlee 6810 Features:
• Feeds cable at variable speeds to match the speed of cable puller.
• Accommodates cable ranging in size up to 3.5" (88.9 mm) in diameter.
• Sets up easily and can be operated by just one person.
• Dual motors drive each wheel for traction on both sides of the cable.
• Comes with pendant and toggle switch. An optional foot switch (445) is available to control feeding.
• Two cable loading methods; top-loading and end-loading.
