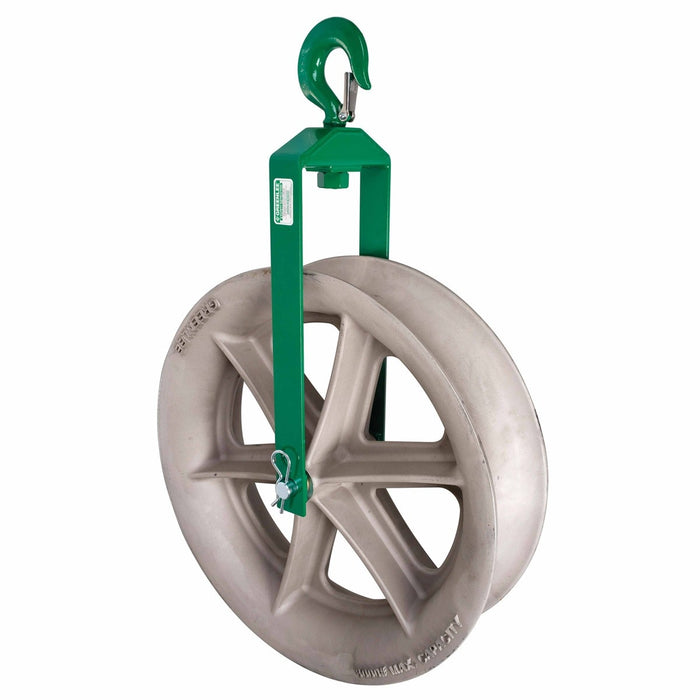

Greenlee 8024 24" Hook Sheave

Name: Greenlee 8024 24" Hook Sheave
Rating: 5.0 (1 reviews)

Availability:

in stock, ready to be shipped

Sale

$1,134.48

$1,134.48 - $1,134.48

$1,134.48

$1,008.45

$1,008.45 - $1,008.45

$1,008.45

Quantity

More payment options

Product Description

Greenlee 8024 Features

2" (609.6 mm) Hook Sheave for any Greenlee Cable Puller
For use with any Greenlee cable puller.
Strong, welded steel frames.
Forged steel closure type hooks with 1" (25.4 mm) opening.
All three sheaves are aluminum alloy with self-lubricating bearings.

Greenlee 8024 Specifications

Outside Diameter:	24" (609.6 mm)
Inside Radius:	9-7/8" (250.8 mm)
Width:	6-1/2" (165.1 mm)
Weight:	67 lbs. (30.3 kg)
Maximum Rated Capacity:	8,000 lbs. (35.8 kN)

1 Rating

5.0out of 5 stars

1 Rating

Rated 5 stars by 100% of reviewers

Rated 4 stars by 0% of reviewers

Rated 3 stars by 0% of reviewers

Rated 2 stars by 0% of reviewers

Rated 1 star by 0% of reviewers

Rated 5 out of 5

Oct 7, 2021

Couldn't have got our wire pulled without it

This could be the difference between getting your wire pulled or not. We had to rig two of these up in two different spots in order to pull in 3 500MCM conductors and a 1/0 ground. This isn't a product that made our job easier, this is a product that we couldn't have gotten the job done without

Tim R
