Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2

Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2

Availability:
Only 1 left!
Sale Sale
$2,305.20
$2,305.20 - $2,305.20
$2,305.20
$2,146.14
$2,146.14 - $2,146.14
$2,146.14

Product Description

Greenlee DVI-500T/K02 Description

Indicates Voltage up to 500kV Kit No range selector switch or settings required Audible indication when voltage is detected Measure elbow test points with the DVI-500T Large LED display indicates the line-to-ground voltage level Display is easy to read in bright or dark conditions Voltage readout allows the user to distinguish between nominal and induced voltages Built-in universal spline for standard hot stick attachment Built-in self-test to verify proper operation Auto shutoff with low battery function For use on system voltages up to 800kV (reads up to 500kV line-to-ground) Powered by a field-replaceable 9V lithium or alkaline battery Compact, rugged and lightweight polycarbonate housing Kits are available, contact factory for details.

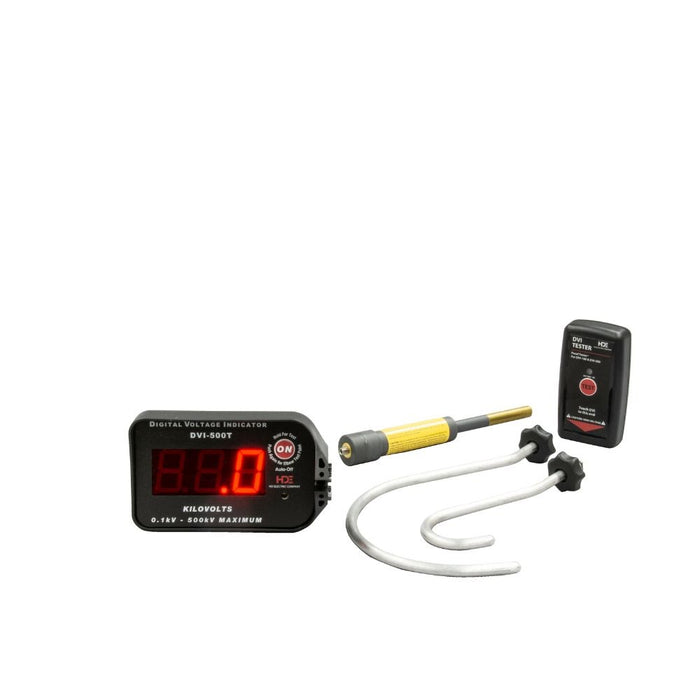

Greenlee DVI-500T/K02 Includes

  • (1) DVI-500
  • (1) HP-DVI-2 2" Overhead Hook Probe
  • (1) HP-DVI-6 6" Overhead Hook Probe
  • (1) IEP-DVI-5 Underground Bushing Probe
  • (1) PT-DVI Proof Tester Proof Tester
  • (1) CS-DVI Plastic Case

Greenlee DVI-500T/K02 Features

  • Measures voltage up to 500kv line-to-ground
  • Voltage readout distinguishes between nominal and induced voltages
  • Audible indication when voltage is detected
  • Test Point mode
  • Auto-shutoff and low battery indication features
  • Versatile for overhead and underground applications

Greenlee DVI-500T/K02 Specifications

Type Digital Voltage Indicator
Model DVI-500T
Voltage Rating 100V - 500kV Line-to-Ground
Accuracy Laboratory Calibrated to +/-3%. Typical Overhead Line in Compact Overhead Three Phase +/-10%. Other Applications up to +/-25%
Display LED Display
Operating Temperature -20°F to +140°F (-29°C to +60°C)
Dimensions 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm)
Frequency Rating AC 60Hz (50Hz model available)
Sub Brand HDE
Included DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
