HD Electric TL-AST-M TILT-II Transformer Tester with Automatic Self-Test, Magnet Mount

Availability:
in stock, ready to be shipped
Sale Sale
Original price $784.40
Original price $784.40 - Original price $784.40
Original price $784.40
Current price $638.20
$638.20 - $638.20
Current price $638.20

Product Description

Greenlee TL-AST-M Description

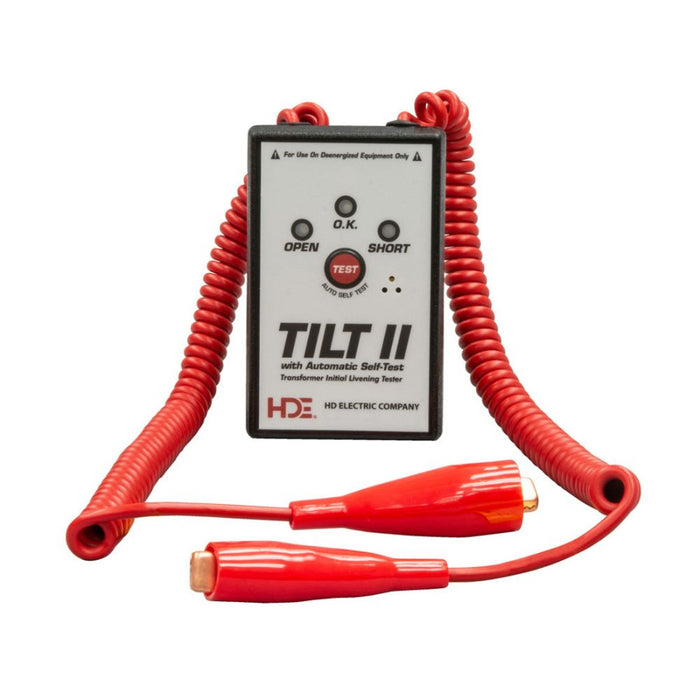

The Greenlee TL-AST-M (52087335) TILT-II Transformer Tester with Automatic Self-Test and Magnet Mount provides quick and easy tests for opens and shorts on power distribution systems. It operates with a single push-button and provides clear indications of open circuits, short circuits and confirmation that the test results are OK. The TILT II (Transformer Initial Livening Tester) Transformer Tester is a versatile tool for quick and easy checks of transformers and the connections made to them. In the field, the TILT II is used to test the primary and secondary sides of a new or reworked, single or three-phase transformer installation for short circuits prior to energizing. The TILT II can test the secondary sides of transformers and all the connections made to them, up to and including the meter, prior to energizing. Unlike a simple ohmmeter, the TILT II can differentiate a true short from the low instance of a transformer winding.

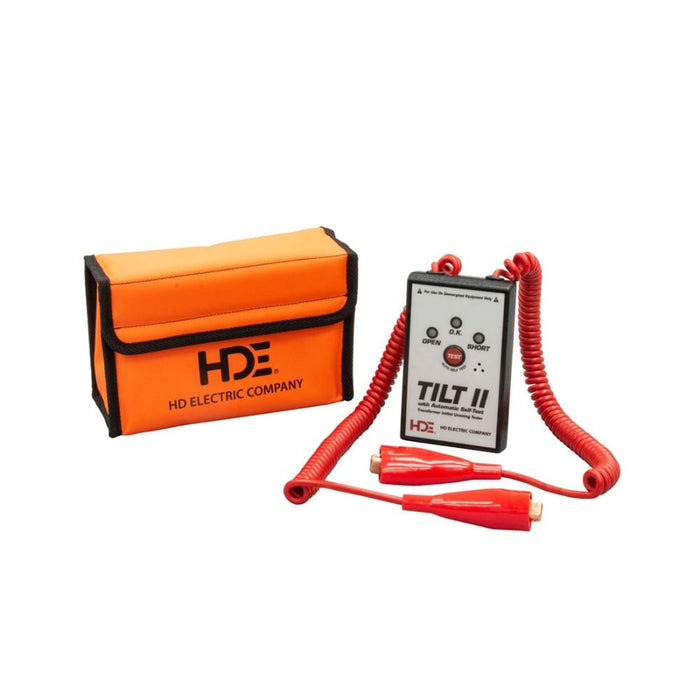

Greenlee TL-AST-M Includes

  • (1) TILT-II Transformer Tester with Magnet
  • (1) Padded Carrying Bag (B-8)

Greenlee TL-AST-M Features

  • Performs quick and easy checks for opens or shorts on transformers before energizing
  • Indicates open circuits, short connections, and confirmation that test results are OK
  • Tests overhead, pad-mount and other distribution transformers
  • Tests primary and secondary sides of de-energized transformers without disconnecting
  • Helps prevent line workers from installing a fuse on shorted transformer
  • Completes automatic self-test of battery, lights, beeper and all electronics
  • Magnet holds tester in place for hands-free operation while testing
  • Bright LEDs provide clear test result indications
  • Buzzer confirms successful test
  • Equipped with heavy duty rubber insulated coiled test leads
  • Large alligator clips built with heavy-duty boots

Greenlee TL-AST-M Specifications

Type Transformer Tester
Output 6VDC
Enclosure ABS UL 94-HB
Mounting Magnet
Temperature Range -20°F to +140°F (-29°C to +60°C)
Short ? 10?, Varies with Battery Voltage
Open ? 10?, Varies with Battery Voltage
Transformer OK Minimum Inductance 800µH
Operating Frequency 50/60Hz
Battery 9V Field Replaceable Lithium or Alkaline Battery
Test Lead Length 21" (53.34 cm) Retracted, 54" (137.16 cm) Fully Extended
