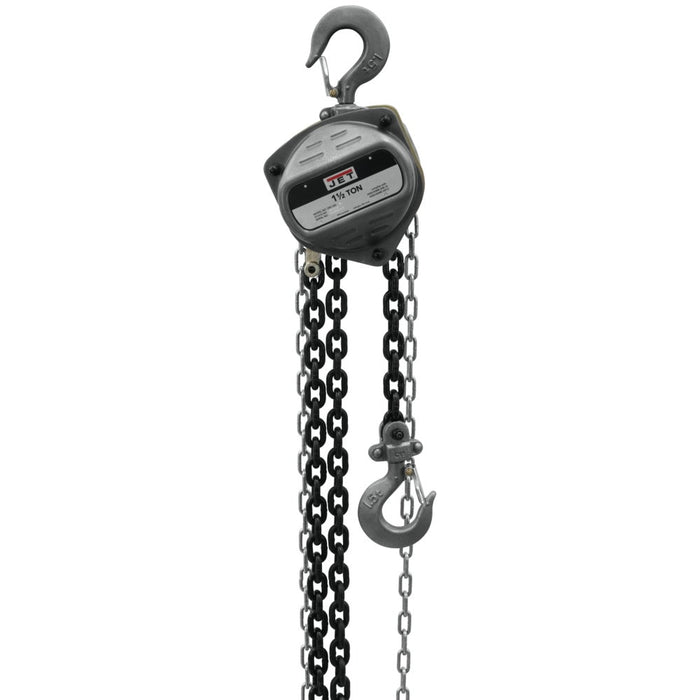

Jet 101920 S90-150-10, 1-1/2-Ton Hand Chain Hoist With 10' Lift

Product Description

FEATURES:
• Safety
• Weston Style Dual Pawl Brake System- Double pawl design increases safety
• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Durability
• Needle Bearing Design- Promotes long hoist life with low wear reducing downtime
• Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• All Steel Construction- Impact resistant covers that provide durability and protection
• Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
• Standards

SPECIFICATIONS:
• Hand Chain Overhaul (Ft.) to Lift Load 1Ft.: 57
• Overload Protection: No
• Hand Chain Pull Force (LBF) to Move Load: 84
• Headroom (In.): 14-1/2
• Lift (Ft.): 10
• Number of Falls: 1
• Load Capacity (Tons): 1-1/2
• Load Chain Dimensions (Mm.): 8 x 24
• Weight (Lbs.): 50

JET® S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
