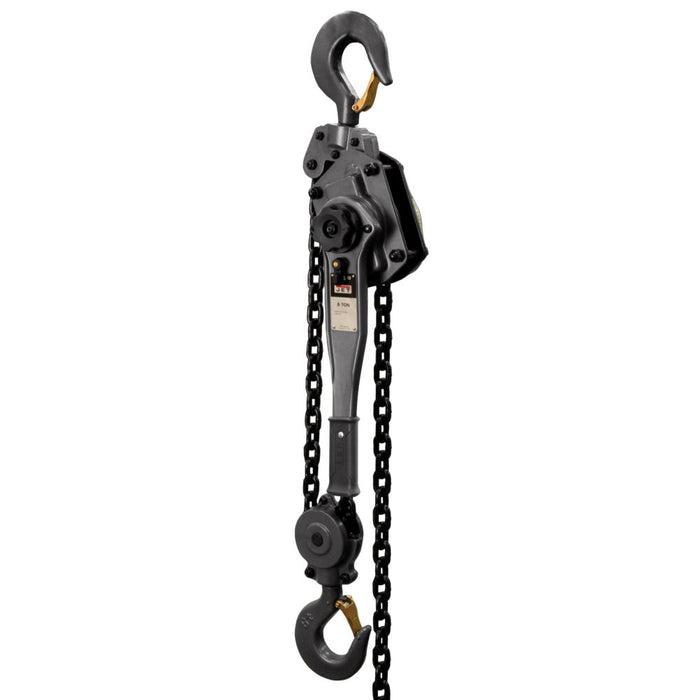

Jet JT9-287601 JLP-600A-10 6T Lever Hoist 10' Lift

Product Description

FEATURES:
• Safety
• Patented brake wear indicator provides visual indication when to replace worn friction disks
• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Durability
• Cast steel safety latches are secured with Allen screws and lock nuts
• Grade 80 black oxide coated for added durability
• Needle bearing design increases efficiency and promotes smooth operation
• Impact resistant all steel construction for added durability and protection

SPECIFICATIONS:
• Number of Falls: 2
• Lift per Turn (In.): 1/3
• Load Capacity (Tons): 6
• Load Chain Dimensions (Mm.): 10 x 30
• Lever Pull Force (LBF): 77
• Weight (Lbs.): 72
• Ship Yard Hooks: SV_1375591258806
• Lift (Ft.): 10
• Headroom (In.): 24-2/5
• Handle Length (In.): 16-1/7
• Overload Protection: No
• Hook Throat Opening (In.): 3
• Overall Width (In.): 7-7/8


JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
