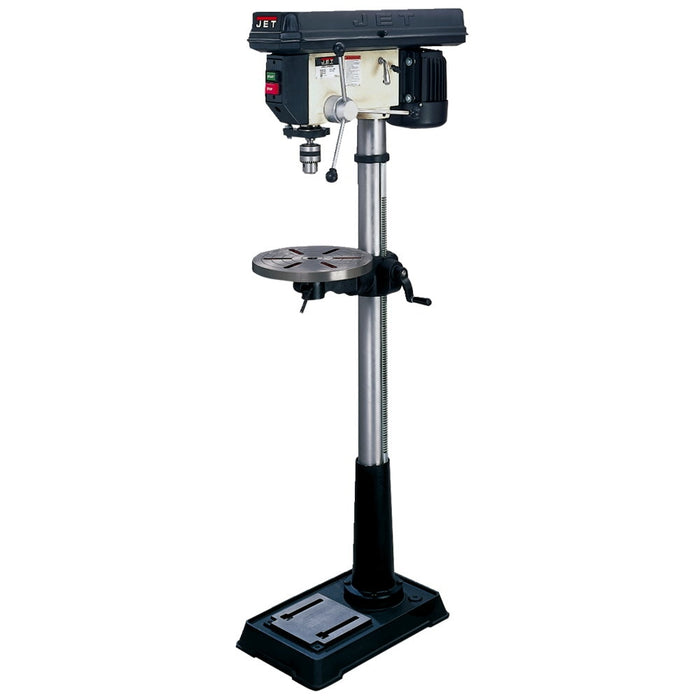

Jet 354169 JDP-17MF 16-1/2" Floor Drill Press, 5/8" Capacity, 3/4HP, 16 Speed

Product Description

FEATURES:
• 16 speeds lets you choose the best speed for the job
• Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
• Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
• X pattern mounting grooves in table allow mounting a fence when table is in reverse position
• Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
• Spindle has high-quality ball bearing construction for long life
• Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
• Built-in worklight (bulb not included) provides additional visibility of your work

SPECIFICATIONS:
• Motor Power (HP): 3/4
• Number of Spindle Speeds: 16
• Motor Voltage (V): 115/230
• Spindle Speed Range (RPM): 200 - 3630
• Spindle Distance to Table (Max.) (In.): 29-1/8
• Style (Type): SV_1375591258781
• Table Tilt (Deg.): 45 R & L
• Column Diameter (In.): 3-1/8
• Swing (In.): 16-1/2
• Chuck Size (In.): 5/8
• Base Size (In.): 11-1/8 x 19-5/8
• Motor Amps: 9/4.5
• Table Size (L x W) (In.): 13-3/4
• Spindle Travel (In.): 4-3/8
• Motor Phase (PH): 1
• Spindle Taper: MT2

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
