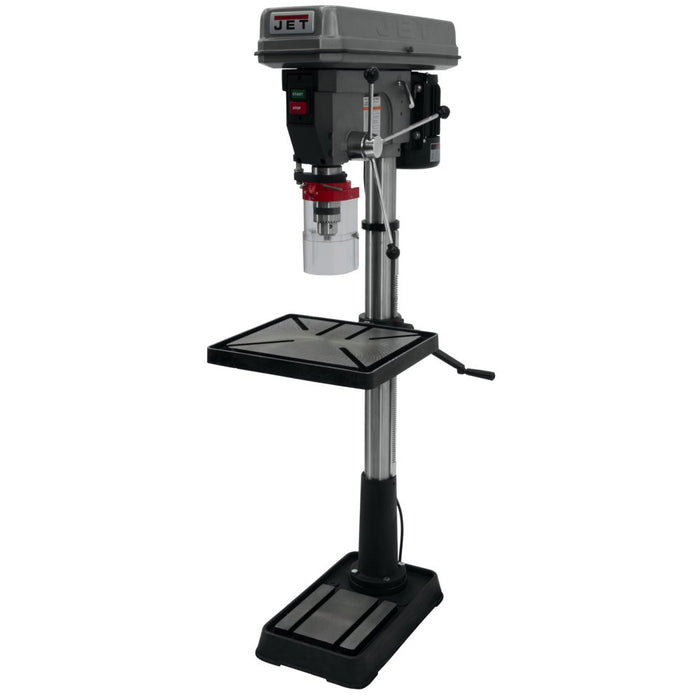

Jet 354170 JDP-20MF, 20" Floor Drill Press 115/230V 1PH

Product Description

FEATURES:
• Hinged metal belt and pulley cover
• Quick adjustment motor mount for rapid changing of spindle speeds
• Rotating, 45° tilting, crank operated worktable with release clamp
• On/off switch located on front of drill press head
• 1/2" diameter external depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Spindle is supported by high quality bearings
• Drill chuck and key included
• Telescoping safety spindle guard

SPECIFICATIONS:
• Table Travel (In.): 21-1/2
• Table Size (L x W) (In.): 18-1/2 x 16
• Column Diameter (In.): 3-3/8
• Spindle Distance to Table (Max.) (In.): 29-1/8
• Base Dimensions (In.): 13-3/4 x 22-3/4
• Drilling Capacity Mild Steel (In.): 3/4
• Spindle Travel (In.): 4-5/8
• Base Work Table (In.): 13 x 8-1/2
• Weight (Lbs.): 282
• Distance Column to Spindle (In.): 10
• Drills to Center of Circle (in): 20
• Work Table Weight Capacity (Lbs.): 80
• Range of Spindle Speeds (RPM): 150 - 4,200
• Spindle Distance to Base (In.): 46-3/4
• T-Slot Centers (In.): 3-1/2
• Motor (HP): 1-1/2 HP, 115/230V, 1 Ph
• Base Slots Number & Size (In.): 2 & 5/8
• Drilling Capacity Cast Iron (In.): 1
• Number of Spindle Speeds: 12

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
