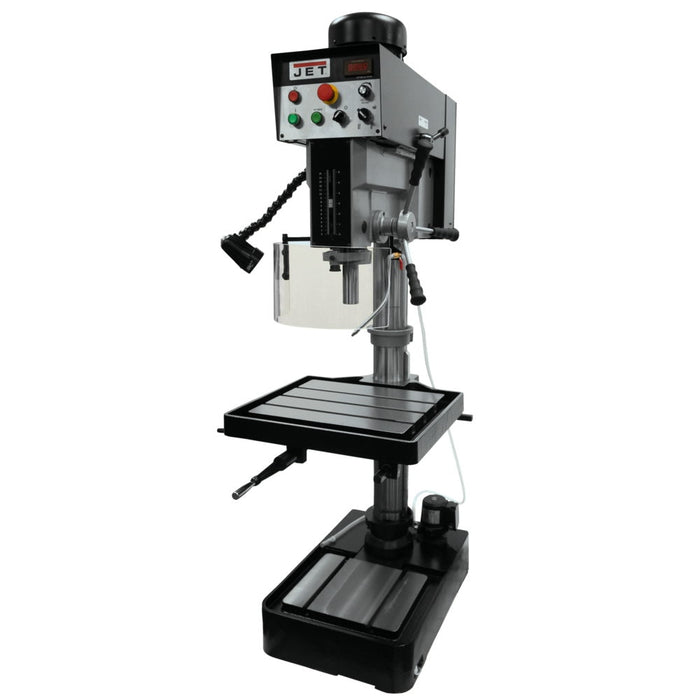

Jet JT9-354225 JDP-20EVST-230 20" EVS Tapping Drill Press, 230V

Jet JT9-354225 JDP-20EVST-230 20" EVS Tapping Drill Press, 230V

Availability:
Out of stock
Sold out
$7,914.29
$7,914.29 - $7,914.29
$7,914.29
$7,017.81
$7,017.81 - $7,017.81
$7,017.81

Product Description

Jet 354225 Description

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

Jet 354225 Features

  • Heavy-duty steel column for increased precision and rigidity
  • Heavy Duty casted head for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Latest AC Inverter Variable Speed Technology
  • CSA Coolant System
  • Spindle is supported by high quality ball bearings
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Emergency Stop

Jet 354225 Specifications

Table Travel (In.) 20
Table Size (L x W) (In.) 22x18-3/4
Column Diameter (In.) 4-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Base Dimensions (In.) 27 x 19
Drilling Capacity Mild Steel (In.) 1-3/8
Spindle Travel (In.) 6
Distance Column to Spindle (In.) 10-7/16
Drills to Center of Circle (in) 20
Work Table Weight Capacity (Lbs.) 154
Range of Spindle Speeds (RPM) 65-540 /245- 2,000
Spindle Distance to Base (In.) 44-1/2
T-Slot Centers (In.) 7-7/16
Tapping Capacity Cast Iron (In.) 7/8
Motor (HP) 2 HP, 230V 3ph
Base Slots Number & Size (In.) 2 & 5/8
Drilling Capacity Cast Iron (In.) 1-1/2
Tapping Capacity Mild Steel (In.) 3/4
Number of Spindle Speeds Variable
Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x 79.52
Spindle Taper (In. x TPI) MT-3
Style (Type) SV_1375591258801
T-Slots Number and Size (In.) 3 & 5/8
Inverter Type M Type 230V 1/3Ph
