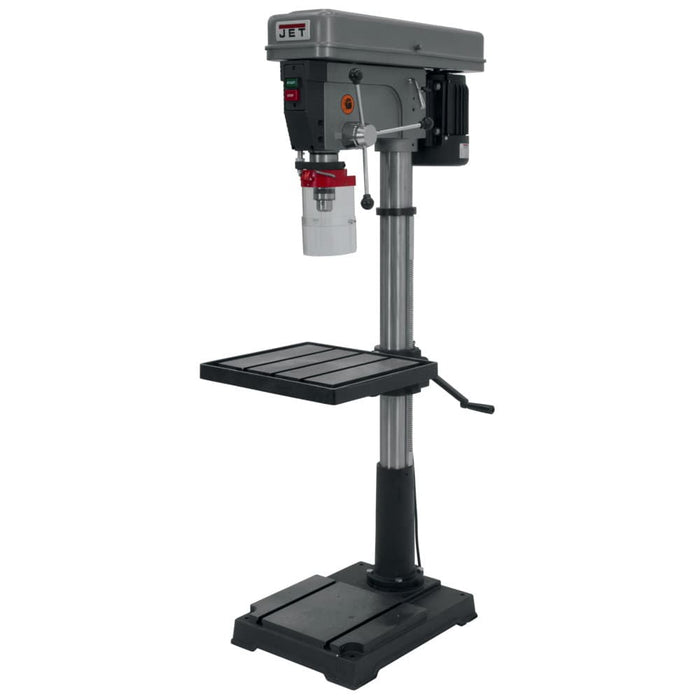

Jet JT9-354402 J-2550, 20" Floor Model Drill Press 115V 1PH

Jet JT9-354402 J-2550, 20" Floor Model Drill Press 115V 1PH

Availability:
Only 1 left!
Sale Sale
$2,107.14
$2,107.14 - $2,107.14
$2,107.14
$1,729.00
$1,729.00 - $1,729.00
$1,729.00

Product Description

Jet 354402 Description

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Jet 354402 Features

  • Constructed to provide a solid base for drilling
  • The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
  • Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an encloseCast Iron head d quill for longer life.
  • Large quill allows greater accuracy
  • Large ground steel column for maximum head and table support
  • Large production table tilts 45°
  • 4-3/4" stroke for deep hole applications
  • Accurate depth stop for precice hole depths
  • 5/8" drill chuck and arbor
  • Telescoping safety spindle guard

Jet 354402 Specifications

Table Travel (In.) 21-1/2
Table Size (L x W) (In.) 18-11/16 x 16-3/4
Column Diameter (In.) 3-5/8
Spindle Distance to Table (Max.) (In.) 24
Base Dimensions (In.) 22-3/4 x 17-3/4
Drilling Capacity Mild Steel (In.) 5/8
Spindle Travel (In.) 4-3/4
Weight (Lbs.) 304
Distance Column to Spindle (In.) 10
Drills to Center of Circle (in) 20
Work Table Weight Capacity (Lbs.) 66
Range of Spindle Speeds (RPM) 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
Spindle Distance to Base (In.) 43-1/2
T-Slot Centers (In.) 4
Motor (HP) 1 HP, 115/230V, 1 Ph
Base Slots Number & Size (In.) 2 & 5/8
Drilling Capacity Cast Iron (In.) 3/4
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
