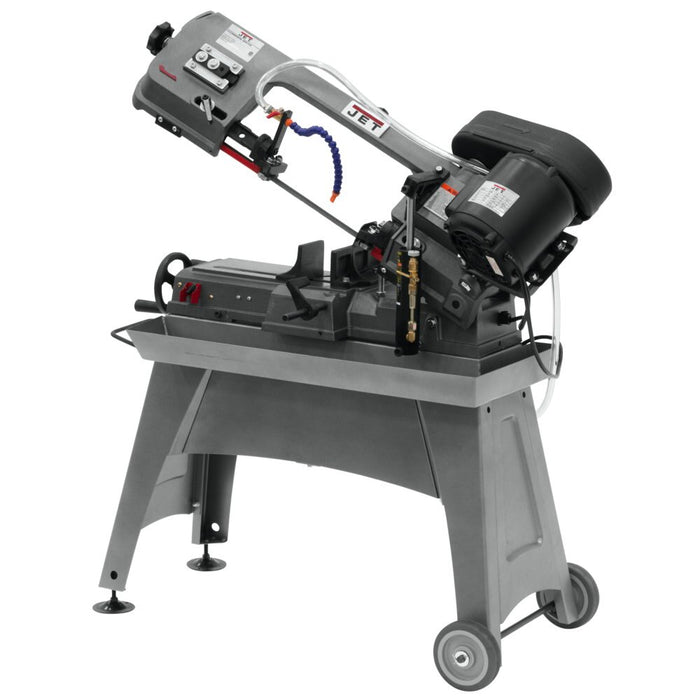

Jet JT9-414453 J-3230, 5" x 8" Horizontal Bandsaw

Jet JT9-414453 J-3230, 5" x 8" Horizontal Bandsaw

Availability:
Out of stock
Sold out
$1,840.00
$1,840.00 - $1,840.00
$1,840.00
$1,499.00
$1,499.00 - $1,499.00
$1,499.00

Product Description

Jet 414453 Description

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

Jet 414453 Features

  • For added safety, the J-3230 follows strict guidelines and electrical requirements to be certified by CSA Group
  • Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
  • Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
  • Fully adjustable hydraulic downfeed system
  • Wheels and handle for easy movement
  • Automatic shut-off after cut
  • Coolant system
  • Adjustable material stop
  • 1/2" Carbon Steel Blade

Jet 414453 Specifications

Round at 90 Degrees (In.) 5
Blade Size (In.) 1/2 x .025 x 68
Drive Belt Drive
Blade Speeds (SFPM) 85, 125, 200
Round at 45 Degrees (In.) 4-1/2
Rectangle at 90 Degrees (In.) 7-1/2 x 5
Blade Wheel Diameter (In.) 7-1/2
Bed Height (In.) 23-1/2
Cutting Capacity (W x D) (In.) 5 x 8
Rectangle at 45 Degrees (In.) 4-1/2 x 5
Weight (Lbs.) 134
Vise Swivels (Deg.) 45°
Blade Length (In.) 68-1/2
Motor (HP) 1/2 HP, 115V, 1Ph
Overall Dimensions (L x W x H) (In.) 37 x 16 x 37
