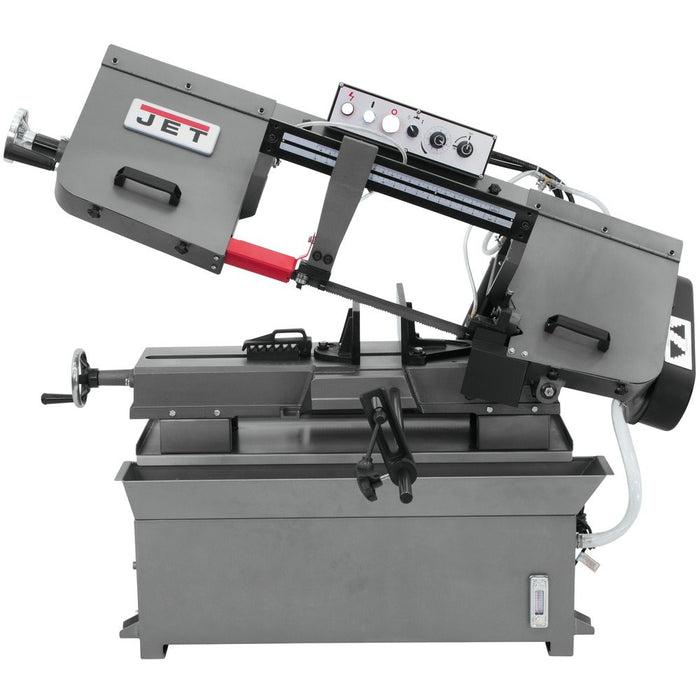

Jet 414468 HBS-916W, 9" x 16" Horizontal Bandsaw

Product Description

FEATURES:
• Large hand wheel and built-in gauge provides easy blade tensioning
• Quick-positioning vise with fully adjustable jaws, swivels to 45°
• Easy access chip tray allows quick cleanup
• Blade is fully guarded, regardless of blade guide position
• Carbide blade guides feature parallel double-row ball bearing support
• Coolant is distributed through the blade guides
• Built-in, self propelled blade brush extends blade life
• Fully adjustable hydraulic downfeed with separate on/off control valve
• Automatic shut-off after cut
• Coolant system

SPECIFICATIONS:
• Round at 90 Degrees (In.): 9
• Blade Size (In.): 1 x .035 x 119-1/2
• Drive: Belt Drive
• Blade Speeds (SFPM): 82, 132, 170, 235
• Round at 45 Degrees (In.): 6-1/8
• Rectangle at 90 Degrees (In.): 8-1/2 x 14 and 2 x 16
• Blade Wheel Diameter (In.): 13
• Bed Height (In.): 25
• Cutting Capacity (W x D) (In.): 9 x 16
• Rectangle at 45 Degrees (In.): 9 x 6-1/8
• Weight (Lbs.): 704
• Vise Swivels (Deg.): 45°
• Blade Length (In.): 119-1/2
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 65 x 28 x 42

Large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time
