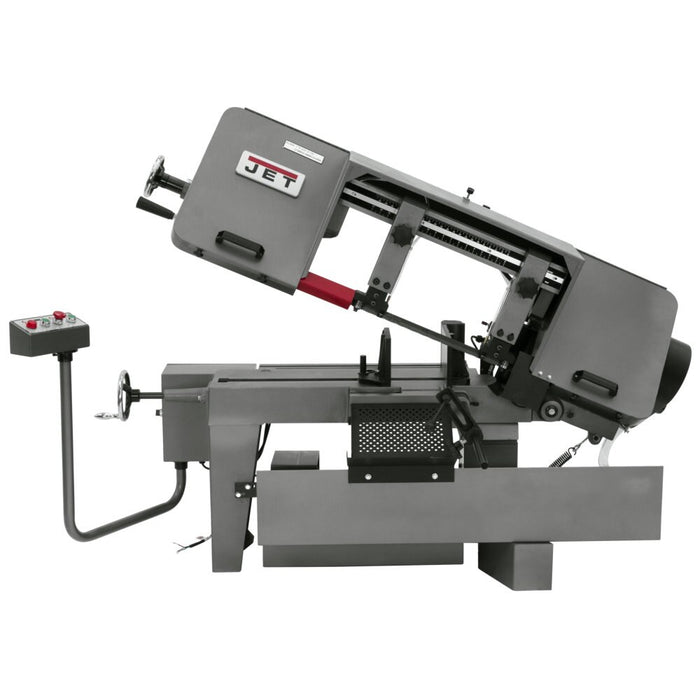

Jet 414472 J-7020, 10" x 16" Horizontal Bandsaw

Regular price $6,371.43 Sale price $5,399.00 Save $972.43


FEATURES:
• For added safety, the J-7020 follows strict guidelines and electrical requirements to be certified by CSA Group
• Swing away control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• One-piece wheel cover
• Coolant system
• Cast iron blade wheels
• Adjustable material stop

SPECIFICATIONS:
• Round at 90 Degrees (In.): 10
• Blade Size (In.): 1 x .035 x 135
• Drive: Variable Speed
• Blade Speeds (SFPM): 100 - 350
• Round at 45 Degrees (In.): 10
• Rectangle at 90 Degrees (In.): 10 x 10 and 7 x 16
• Blade Wheel Diameter (In.): 14
• Bed Height (In.): 23-1/2
• Cutting Capacity (W x D) (In.): 10 x 16
• Rectangle at 45 Degrees (In.): 6-1/2 x 11
• Weight (Lbs.): 927
• Vise Swivels (Deg.): 45°
• Blade Length (In.): 130
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 75-1/2 x 33 x 41

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and
