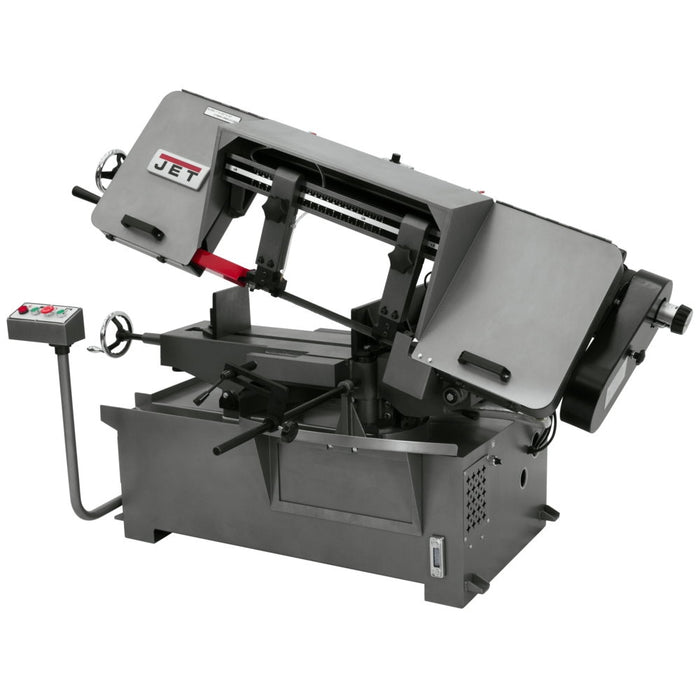

Jet JT9-414474 J-7020M, 10" x 16" Horizontal Mitering Bandsaw

Product Description

FEATURES:
• Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
• Swing away control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Coolant system
• Adjustable material stop

SPECIFICATIONS:
• Bed Height (In.): 25-1/2
• Blade Length (In.): 135
• Blade Size (In.): 1 x .035 x 135
• Blade Speed (SFPM): 100 - 350
• Blade Wheel Diameter (In.): 14
• Cutting Capacity (W x D) (In.): 10 x 16
• Drive: Variable Speed
• Head Movement (Deg.): 45°
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Rectangle at 45 Degrees (In.): 8-1/2 x 9
• Rectangle at 90 Degrees (In.): 10 x 14 and 2 x 16
• Round at 45 Degrees (In.): 8-1/2
• Round at 90 Degrees (In.): 10
• Vise Swivels (Deg.): 45°
• Weight (Lbs.): 924
• Overall Dimensions (L x W x H) (In.): 76 x 30 x 48
• Prewired Voltage (V.): 230

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
