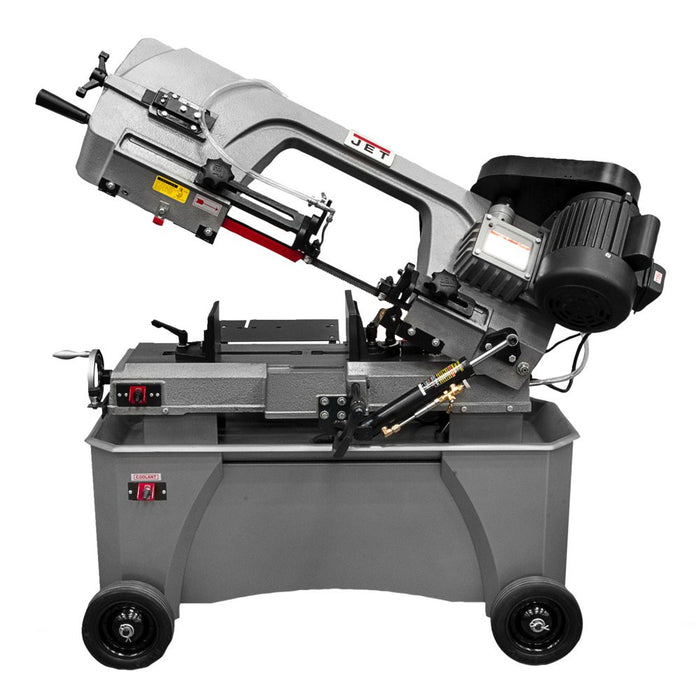

Jet JT9-414560 HVBS-712D, 7" x 12" Deluxe Horizontal / Vertical Bandsaw

Jet JT9-414560 HVBS-712D, 7" x 12" Deluxe Horizontal / Vertical Bandsaw

Availability:
Out of stock
Sold out
$2,525.71
$2,525.71 - $2,525.71
$2,525.71
$2,059.00
$2,059.00 - $2,059.00
$2,059.00

Product Description

Jet 414560 Description

The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Increased the width and height of the stand and added new features that exceed expectations. The HVBS-712D is another innovative JET product packed with features you’ve come to expect

Jet 414560 Features

  • Large 10" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
  • Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
  • Tool-less quick lock vise with preset mitering positions at 15°, 30° & 45°
  • Improved Height and width of stand with built-in storage cabinet and chip tray
  • Micro adjustable tool-less material stop for accurate set-up and repeatability
  • CSA/CUS Certification
  • Blade drive is a belt to sealed, hardened and ground gear drive system
  • Blade wheels are made from flanged cast iron for increased durability
  • Auto shut-off after cut
  • Adjustable ball bearing blade guides

Jet 414560 Specifications

Round at 90 Degrees (In.) 7
Blade Size (In.) 3/4 x 0.032 x 93
Drive Step Pulley
Blade Speeds (SFPM) 86, 132, 178, 260
Round at 45 Degrees (In.) 5
Rectangle at 90 Degrees (In.) 4 x 11 / 7 x 10-1/4
Blade Wheel Diameter (In.) 11-3/4
Square at 90 Degrees (In.) 7 x 7
Bed Height (In.) 22-1/4
Cutting Capacity (W x D) (In.) 7 x 12
Square at 45 Degrees (In.) 5 x 5
Rectangle at 45 Degrees (In.) 6 x 4
Head Movement (Deg.) 0
Vise Swivels (Deg.) 45
Coolant Capacity (Gal.) 1
Blade Length (In.) 93
Motor (HP) 3/4 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 48 x 17 x 44
Throat Depth (In.) 7
