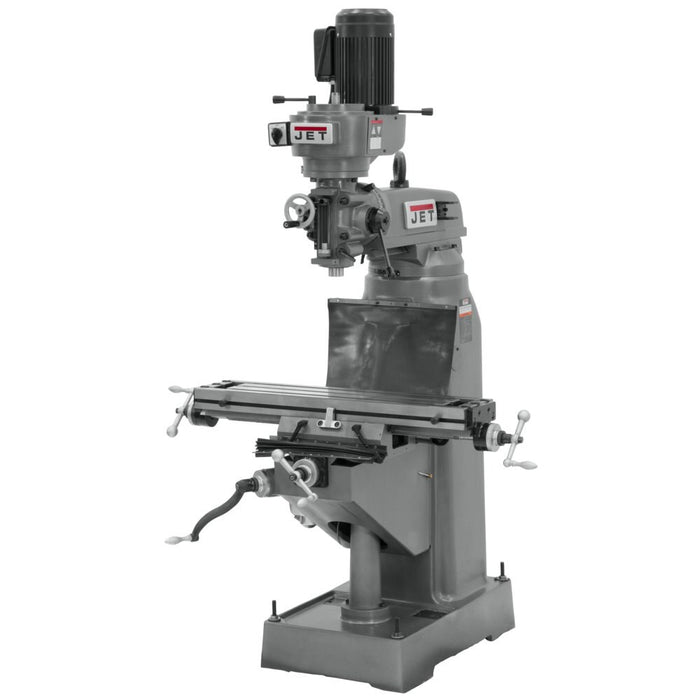

Jet JT9-690036 JVM-836-1 Step Pulley Milling Machine 115V 1PH

Product Description

FEATURES:
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision spindle bearings
• Over 10” of front to back ram travel
• Locks on all movable surfaces
• Hardened and ground precision table
• Head tilts left or right
• Graduated scale on column
• Precision ground dovetail ways
• One shot lubrication system

SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 9-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Min.) (In.): 5-1/4
• Work Table Weight Capacity (Lbs.): 500
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Number of Spindle Speeds: 5
• Range of Spindle Speeds (RPM): 240 - 1,550
• Head Movement (Deg.): 90 R & L
• Weight (Lbs.): 1,617
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Style (Type): Step Pulley R8
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Distance Spindle to Column (Max.) (In.): 15-3/4
• T-Slots Number and Size (In.): 3 and 5/8
• Spindle Taper (In. x TPI): R-8
• Travel of Knee (In.): 14

The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
