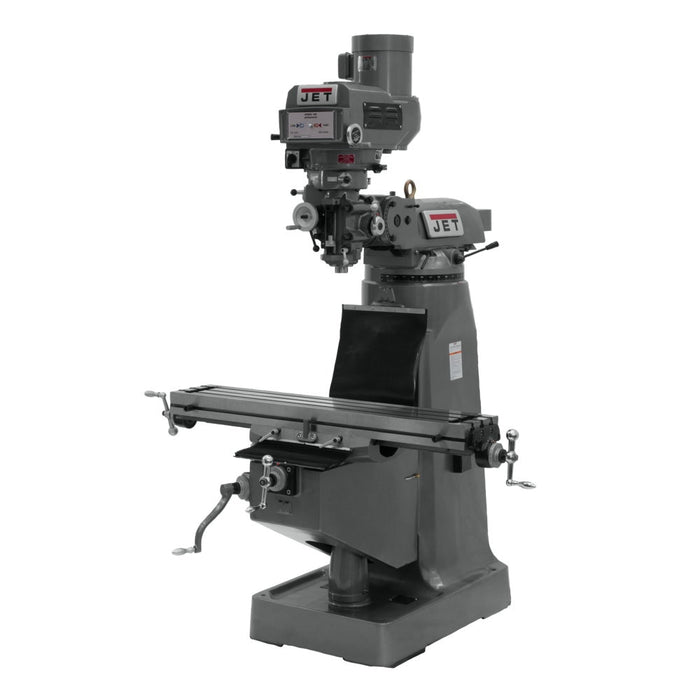

Jet JT9-690180 JTM-4VS-1 Variable Speed Vertical Milling Machine 115/230V 1PH

Special Offer: Save 5% on select JPW items - Look for this banner on qualifying itemsCoupon Code: SAVE5

Jet JT9-690180 JTM-4VS-1 Variable Speed Vertical Milling Machine 115/230V 1PH

Availability:
Out of stock
Sold out
$15,164.29
$15,164.29 - $15,164.29
$15,164.29
$12,299.00
$12,299.00 - $12,299.00
$12,299.00

Product Description

Jet 690180 Description

Constructed using the Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty

Jet 690180 Features

  • Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake

Jet 690180 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 12
T-Slot Centers (In.) 2-1/2
Distance Spindle to Column (Min.) (In.) 4-1/2
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity (Lbs.) 660
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 66 x 63 x 85
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,200
Head Movement (Deg.) 90° R & L, 45° F & B
Weight (Lbs.) 2,420
Motor (HP) 2 HP, 115/230V, 1Ph
Style (Type) Variable Speed R8
Table Size (L x W) (In.) 9 x 49
Distance Spindle to Column (Max.) (In.) 19
T-Slots Number and Size (In.) 3 and 5/8
Spindle Taper (In. x TPI) R-8
