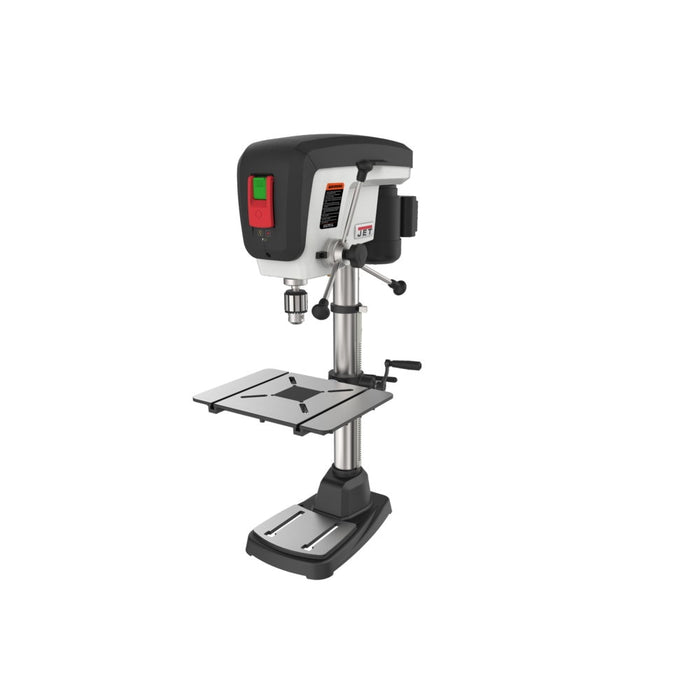

Jet JT9-716200 15" Benchtop Drill Press

Jet JT9-716200 15" Benchtop Drill Press

Availability:
Only 1 left!
Sale Sale
$1,351.42
$1,351.42 - $1,351.42
$1,351.42
$1,099.99
$1,099.99 - $1,099.99
$1,099.99

Product Description

Jet 716200 Description

The new JET JDP-15B, 15" Benchtop Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.

Jet 716200 Features

  • Spindle travels a full 3-1/8” with one revolution of the handle
  • Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability

Jet 716200 Specifications

Motor Power 3/4 HP
Number of Spindle Speeds 16
Motor Voltage 115 V
Spindle Speed Range 210 - 3500 RPM
Max Spindle Distance to Table 18-5/16"
Table Tilt (Deg.) -45 to 45
Column Diameter 2-3/4"
Swing 15"
Chuck Size 5/8"
Base Size 18" x 11-3/8"
Motor Amps 9
Table Size (L x W) 12-1/2" x 17"
Spindle Travel 3-1/8"
Motor Phase (PH) 1
Prewired Voltage 115 V
Spindle Taper MT2/JT3
Spindle Distance to Base 26-3/4"
Assembled Machine Dimensions (L x W x H) 27" x 17" x 42-1/2"
