FEATURES:
• 15-1/2” between centers
• Three speed ranges: 200-1050, 300-1750 and 600-3600
• Integrated 24 position indexing
• Improved tensioning system with easier access to belts
• Wider bed ways provide increased rigidity
• Live center in the tailstock
SPECIFICATIONS:
• Motor Amps: 4
• Distance Between Centers (In.): 15-1/2
• Quill Travel (In.): 2
• Prewired Voltage (V.): 115
• Assembled Machine Dimensions (In.): 26L x 7W x 14H
• Swing Over Bed (In.): 10
• Number of Indexing Positions: 24
• Spindle Bore (In.): 3/8
• Motor Power (HP): 1/2
• Quill Taper: MT2
• Spindle Thread (In./TPI): 1"/8 TPI
• Motor Phase (PH): 1
• Spindle Taper: MT2
• Motor Voltage (V.): 115
• Speed Range: 200-1050/300-1750/600-3600
• Swing Over Tool Rest Base (In.): 7-5/16
• Recommended Circuit Size (Amps.): 10
• Bed Construction: Cast Iron

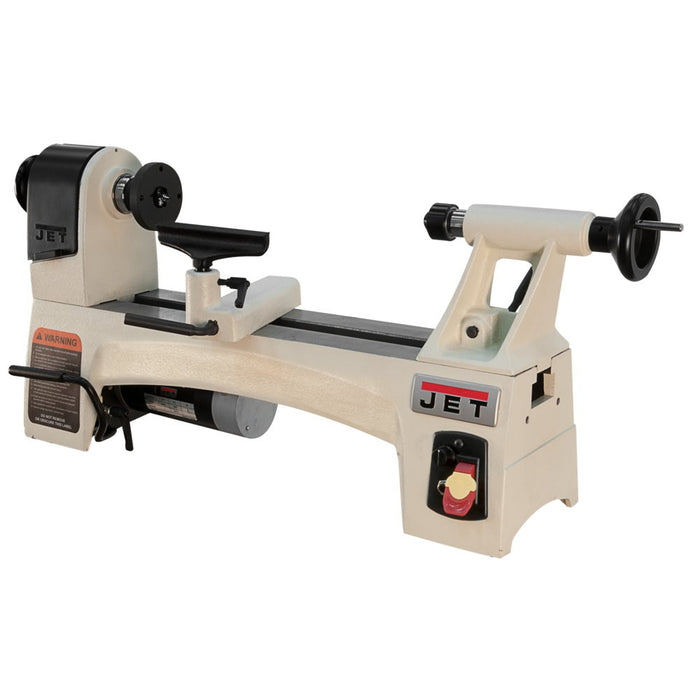

The new JET 1015 is an ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy, smooth-running 15” mini-lathe has the power, precision and versatility to turn out any number of projects. When you're ready to make your ideas a reality... Start Here.
