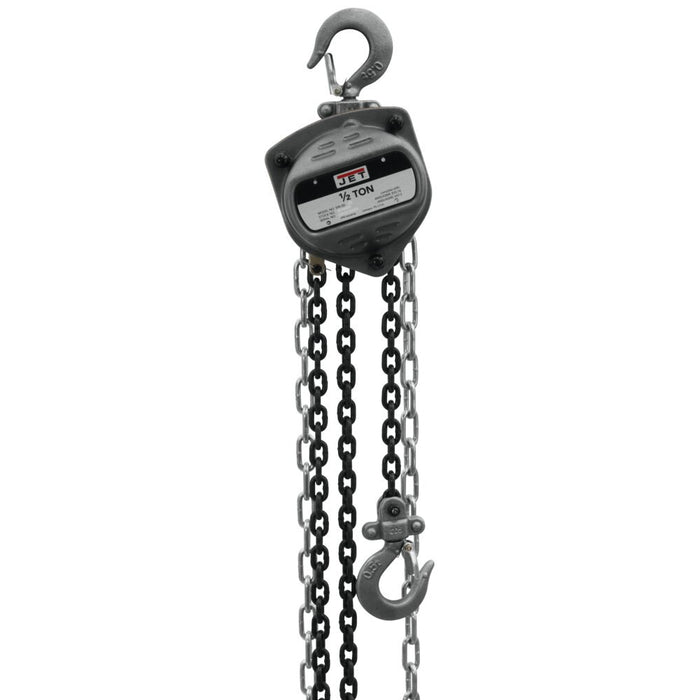

Jet JT9-101903 S90-050-30, 1/2-Ton Hand Chain Hoist With 30' Lift

Product Description

FEATURES:
• Safety
• Weston Style Dual Pawl Brake System- Double pawl design increases safety
• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Durability
• Needle Bearing Design- Promotes long hoist life with low wear reducing downtime
• Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• All Steel Construction- Impact resistant covers that provide durability and protection
• Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
• Standards

SPECIFICATIONS:
• Hand Chain Overhaul (Ft.) to Lift Load 1Ft.: 32
• Overload Protection: No
• Hand Chain Pull Force (LBF) to Move Load: 58
• Headroom (In.): 11
• Lift (Ft.): 30
• Number of Falls: 1
• Load Capacity (Tons): 1/2
• Load Chain Dimensions (Mm.): 5 x 15
• Weight (Lbs.): 45

JET® S90 Series hand chain hoists were designed with reliability and durability to p(more...)
